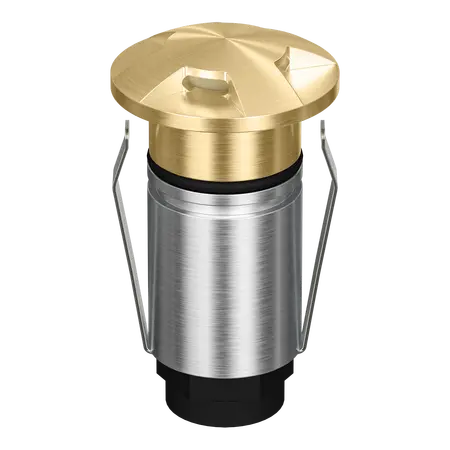

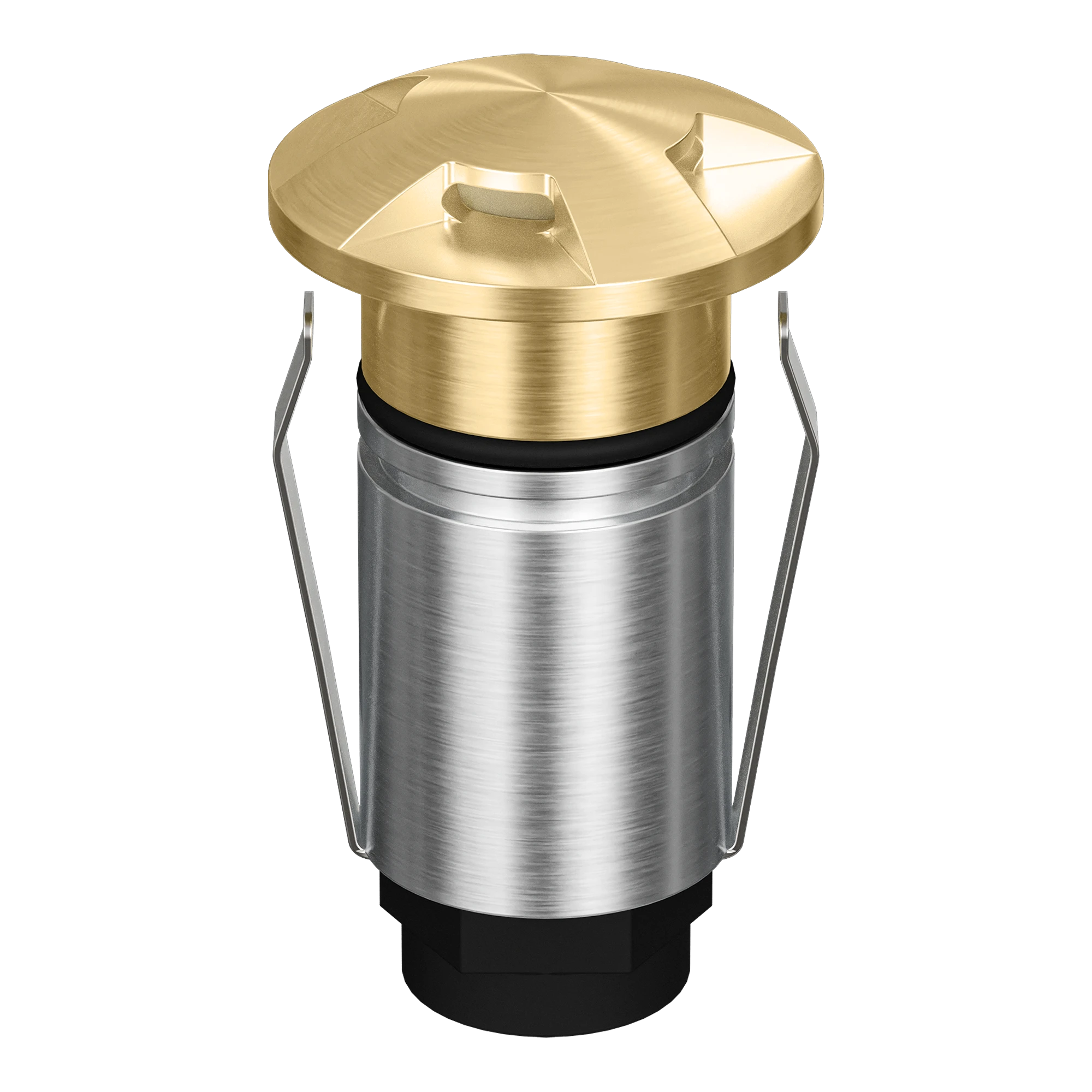

Emit Deck Light LED 25mm RGBW 12/24V 4-Way Brass Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 4-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-25 RGBW 4-Way Inground Light, RGBW Micro Recessed Deck Light, 25mm Brass Step Light
Technical Specifications
- Input Voltage: 24V DC constant voltage
- Power: 1W
- Light Source: CREE LED
- Colour Output: RGBW colour-changing
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Classification: Class III
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Material/Finish: Brass fascia
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Drive Over Rating: Up to 2,000kg
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Four-way brass fascia for directional light distribution
- RGBW colour-changing LED output
- Compact 25mm recessed deck and inground light format
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance
- Optional 19° and 60° lenses, opal diffuser and honeycomb accessory
- Requires a compatible 24V DC LED driver and RGBW controller
- Designed for feature, step, deck and landscape lighting
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW colour controller, wire fittings in parallel, and follow the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Outdoor steps, pathways and stairways
- Landscape and garden feature lighting
- Inground architectural lighting
- Feature lighting for hospitality and entertainment areas
- Directional wall, floor and hardscape illumination
Standards & Compliance
- AS/NZS 60598.1:2017 applicable general requirements for luminaires
- AS/NZS 3000:2018 applicable to the electrical installation and wiring of the low-voltage lighting system
Environmental Benefits
- LED technology provides lower energy consumption than equivalent conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- Brass components can be recycled at end of service life
- 24V DC operation supports integration with efficient low-voltage lighting systems
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty coverage requires installation by a licensed electrician and use in accordance with the manufacturer's installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
