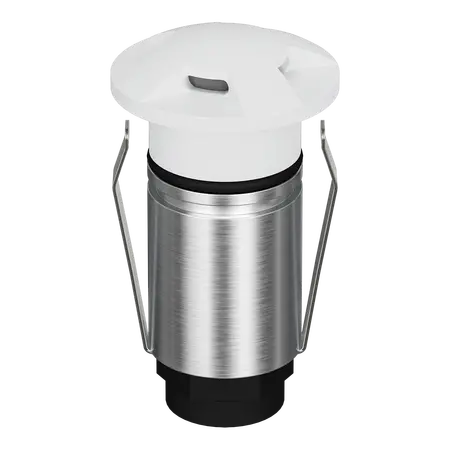

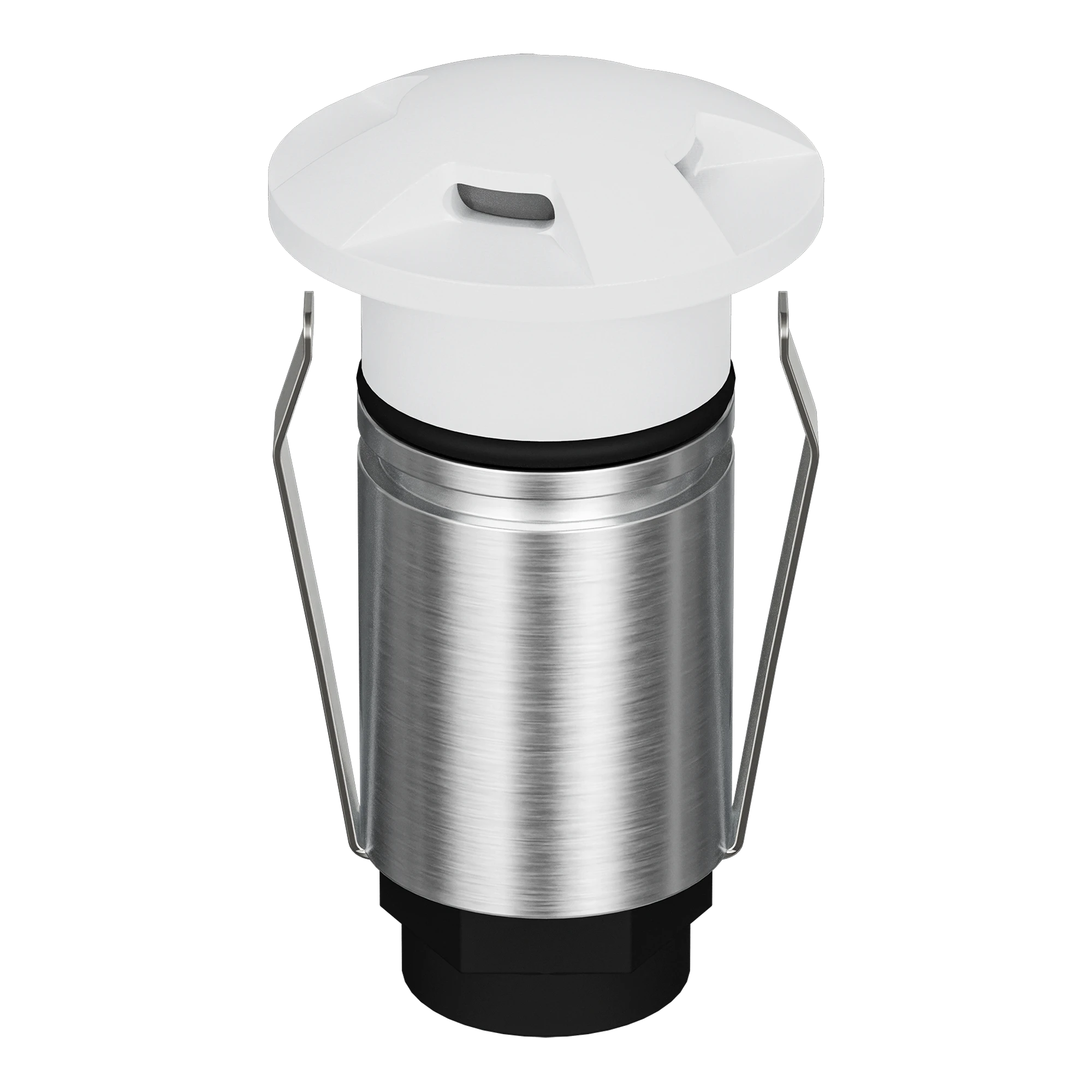

Emit Deck Light LED 25mm RGBW 12/24V 4-Way White Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 4-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 RGBW Deck Light, 25 mm RGBW Inground Light, 4-Way LED Deck Light
Technical Specifications
- Light Type: RGBW LED inground and deck light
- Variant: EMIT-25-RGBW-WHT / 11518
- Fascia: 4-way, white
- Wattage: 1W
- Input Voltage: 24V DC constant voltage
- Colour Output: RGBW colour changing
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Load Rating: 1,500kg drive-over
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Compact 25mm diameter format for discreet deck, pathway and landscape lighting
- RGBW colour-changing output for decorative and architectural applications
- White 4-way fascia directs light through four apertures
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500kg drive-over load rating
- 36° beam supplied as standard, with optional narrow and wide lenses
- Requires separate 24V DC LED driver and RGBW controller
- Available with optional honeycomb and opal diffuser accessories
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use only a compatible 24V DC constant-voltage LED driver and RGBW controller; all outdoor cable joints and connections must be suitably protected against moisture.
Applications
- Residential and commercial deck lighting
- Outdoor pathways and stairs
- Landscape and garden feature lighting
- Architectural façade and feature illumination
- Drive-over inground lighting installations
- Poolside and other outdoor areas where IP67-rated low-voltage lighting is suitable
Standards & Compliance
- AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
- AS/NZS 60598.2.2:2016 – Particular requirements for recessed luminaires
- AS/NZS 3000:2018 – Electrical installations and low-voltage wiring installation requirements
Environmental Benefits
- Low 1W LED power consumption supports efficient feature and pathway lighting
- Long rated LED lifespan of 50,000 hours can reduce replacement frequency and material waste
- Low-voltage 24V DC operation can support efficient, distributed outdoor lighting systems
- Metal components and electronic materials may be recoverable through appropriate electrical and metal recycling streams
Warranty Information
Five-year replacement warranty for the EMIT-25 RGBW series. Domus warranty eligibility requires installation by a licensed electrician, installation in accordance with the manufacturer's guidelines, proof of purchase and evidence of the fault. Warranty conditions and application limits apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock levels.
