Trade Discount 25%

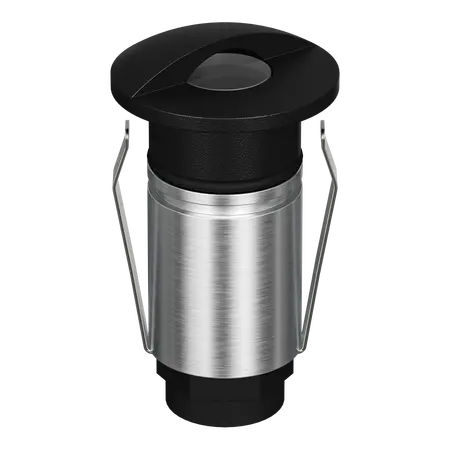

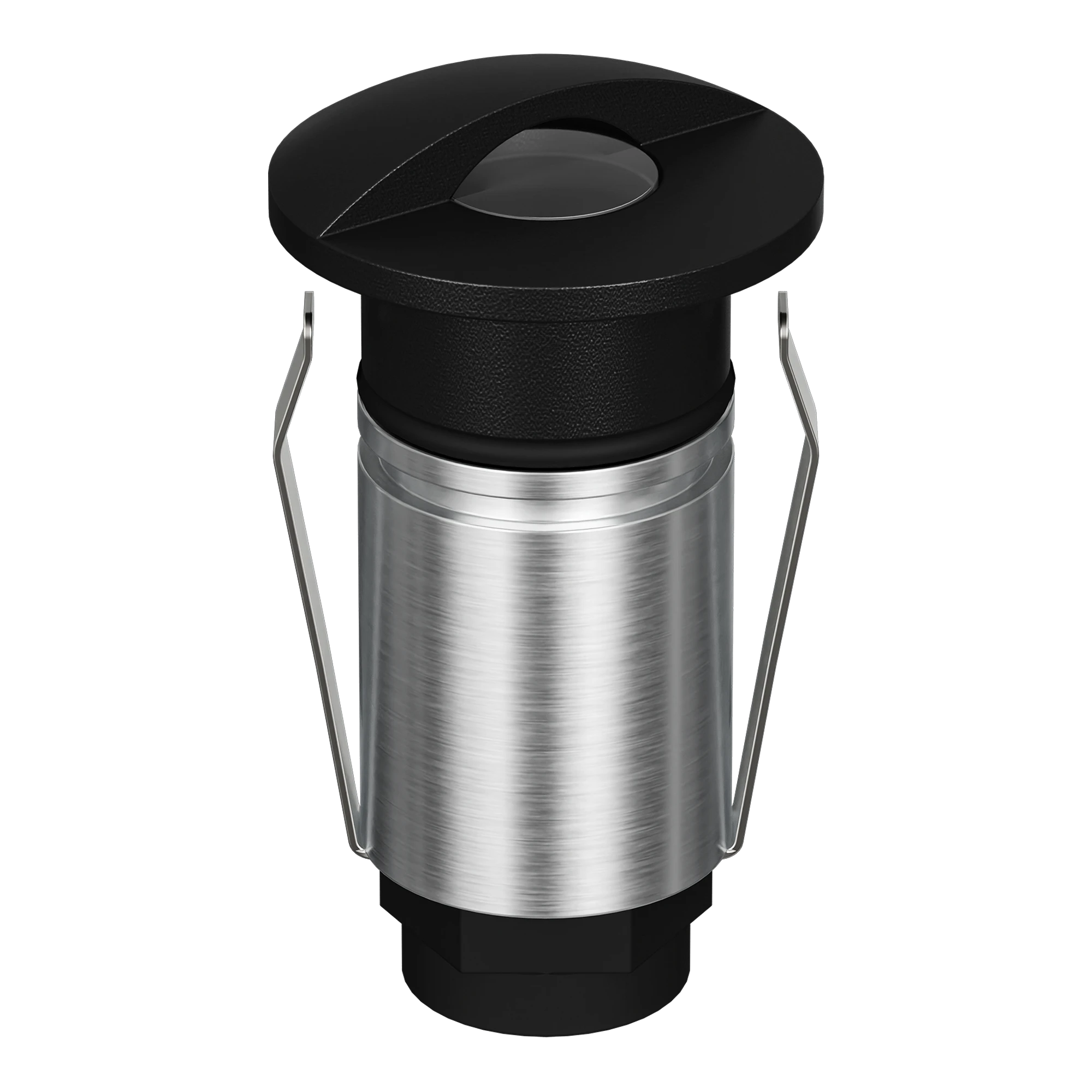

Emit Deck Light LED 25mm RGBW 12/24V Eyelid Black Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, eyelid fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-RGBW-BLK, Emit 25 RGBW Eyelid Deck Light, 25 mm RGBW Inground Light
Technical Specifications
- Input Voltage: 24V DC constant voltage
- Power: 1W
- LED Type: CREE
- Light Colour: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Dimming: Not dimmable
- Control: Requires RGBW colour controller
- Driver Requirement: Requires 24V DC constant-voltage LED driver wired in parallel
- Cutout Diameter: 19mm without cannister; 24mm with cannister
- Installation Depth: Approximately 45mm
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm diameter inground and deck light
- Eyelid fascia design for directional feature lighting
- Black finish
- RGBW colour-changing LED output
- 36° standard beam angle
- IP67 protection for suitable outdoor applications
- IK10 impact resistance
- Compatible with optional beam lenses, honeycomb and opal diffuser accessories
- Suitable for landscape, pathway, stair and architectural lighting
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW colour controller, wire the fittings in parallel, and follow the manufacturer's installation instructions.
Applications
- Residential deck and stair lighting
- Landscape and pathway feature lighting
- Architectural accent lighting
- Outdoor garden and hardscape lighting
- Commercial outdoor feature lighting
Standards & Compliance
- AS/NZS 60598.1:2025 — applicable general safety requirements and tests for luminaires; confirm the product-specific compliance declaration and installation requirements before supply.
Environmental Benefits
- 1W LED output provides low electrical energy consumption compared with higher-wattage conventional feature lighting
- Published 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- IP67 and IK10 construction may support extended service life in suitable outdoor installations
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 RGBW range, subject to the manufacturer's warranty conditions, approved installation and applicable Australian Consumer Law rights.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
