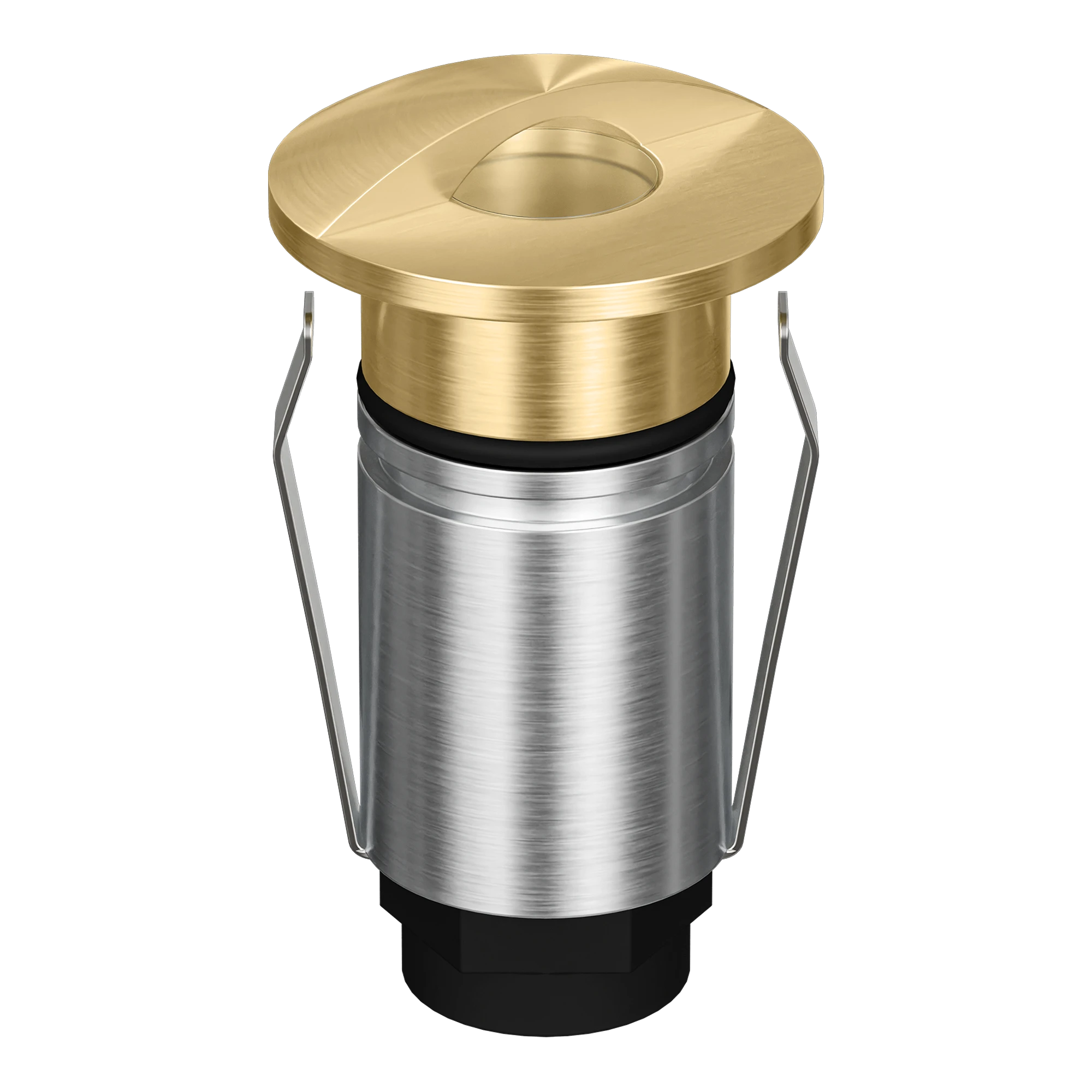

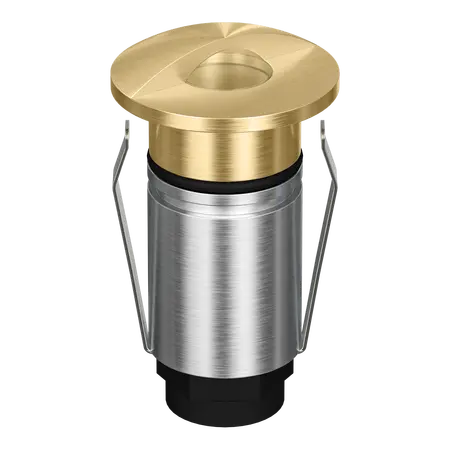

Emit Deck Light LED 25mm RGBW 12/24V Eyelid Brass Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, eyelid fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-RGBW-BRS, 25 mm RGBW LED Deck Light, RGBW Inground Light, Eyelid Recessed Deck Light
Technical Specifications
- Variant: EMIT-25-RGBW-BRS, item variant 10062
- Light Source: 1W CREE LED
- Light Colour: RGBW colour-changing
- Input Voltage: 24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Cut-out Diameter: 19mm without canister; 24mm with canister
- Body Depth: 45mm
- Dimming: No
- LED Life: 50,000 hours
- Load Rating: 1,500kg drive-over
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Material/Finish: Brass fascia with metal body
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm diameter inground and deck light
- Eyelid fascia directs light to reduce glare and provide directional illumination
- RGBW colour-changing output for landscape and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500kg drive-over load rating
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- Designed for parallel wiring to a 24V DC constant-voltage driver
Professional Installation Requirements
- Installation should be completed by a licensed electrician or suitably qualified lighting professional. Use only a compatible 24V DC constant-voltage LED driver and RGBW controller, with outdoor wiring, cable joints and drainage installed in accordance with the relevant installation requirements.
Applications
- Deck and step lighting
- Landscape and garden lighting
- Pathway and architectural feature lighting
- Inground accent lighting
- Drive-over residential and commercial outdoor lighting
Standards & Compliance
- AS/NZS 3000:2018 is relevant to the selection and installation of the extra-low-voltage lighting circuit and associated wiring.
- AS/NZS 60598.1 and AS/NZS 60598.2.13 are relevant luminaire safety references for assessment of recessed and ground-recessed lighting; product-specific certification should be confirmed from the supplied compliance documentation.
Environmental Benefits
- Low 1W LED power consumption supports reduced operating energy compared with higher-wattage feature lighting.
- 50,000-hour rated LED life can reduce replacement frequency and material waste.
- Brass and metal components are recyclable at end of service life.
- IP67 and IK10 construction can support a longer service life in suitable outdoor installations.
Warranty Information
5-year replacement warranty stated for the EMIT-25 RGBW product. Domus warranty claims require proof of purchase, installation by a licensed electrician and compliance with installation guidelines. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/EMIT-25-RGBW-EYELID-Data-Sheet.pdf))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
