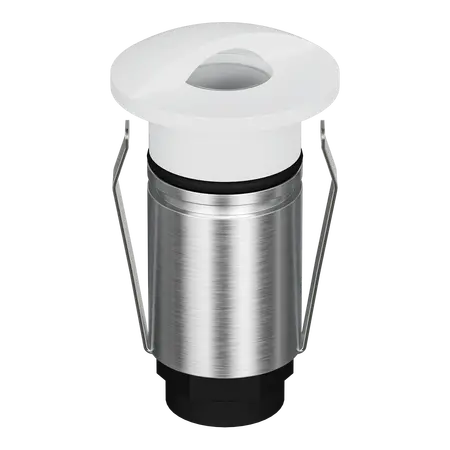

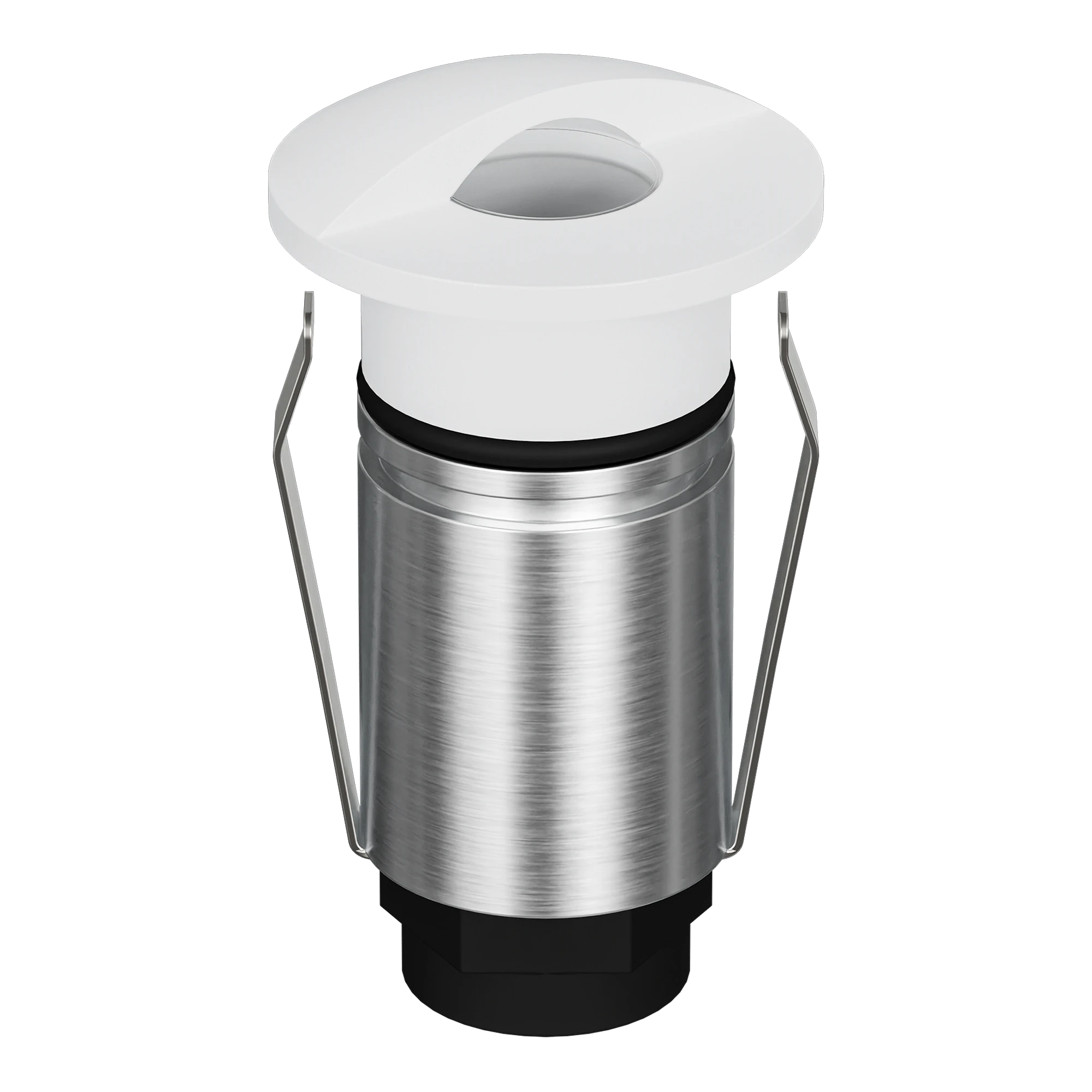

Emit Deck Light LED 25mm RGBW 12/24V Eyelid White Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, eyelid fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 25 RGBW Inground Light, RGBW LED Deck Light, Eyelid Inground Light, 24V RGBW Garden Light
Technical Specifications
- Model: EMIT-25-RGBW-EYELID
- Variant Item Number: 11514
- Input Voltage: 24V DC constant voltage
- Power: 1W
- LED Type: CREE
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Rated Life: 50,000 hours
- Load Rating: 1,500kg drive-over
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Finish: White eyelid fascia
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Compact 25mm diameter inground and deck light
- RGBW colour-changing output for architectural and landscape lighting
- Eyelid fascia helps direct light and reduce unwanted glare
- 36° beam angle supplied as standard
- IP67 protection for suitable outdoor installations
- IK10 impact rating and 1,500kg drive-over load rating
- Compatible with optional 19° and 60° lenses, honeycomb and opal diffuser accessories
- CREE LED with an estimated 50,000-hour lifespan
- Five-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use only a compatible 24V DC constant-voltage LED driver and RGBW controller, with connections made in accordance with the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Deck and step lighting
- Landscape and pathway lighting
- Garden and outdoor feature lighting
- Architectural façade and wall-wash accent lighting
- Drive-over inground lighting installations
- Residential and commercial outdoor lighting systems
Standards & Compliance
- AS/NZS 60598.1:2017 - Luminaires, general requirements and tests
- IEC 60598-2-13 - Particular requirements for ground recessed luminaires
- AS/NZS 3000 - Applicable to associated electrical installation and wiring
Environmental Benefits
- LED technology provides efficient 1W feature lighting with lower operating energy than higher-wattage alternatives
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- Metal components and fittings can generally be separated for recycling at end of service life
- Low-voltage 24V DC operation supports integration with appropriately sized efficient LED drivers
Warranty Information
Five-year replacement warranty stated by Domus Lighting. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the manufacturer's installation requirements. Australian Consumer Law rights apply separately.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
