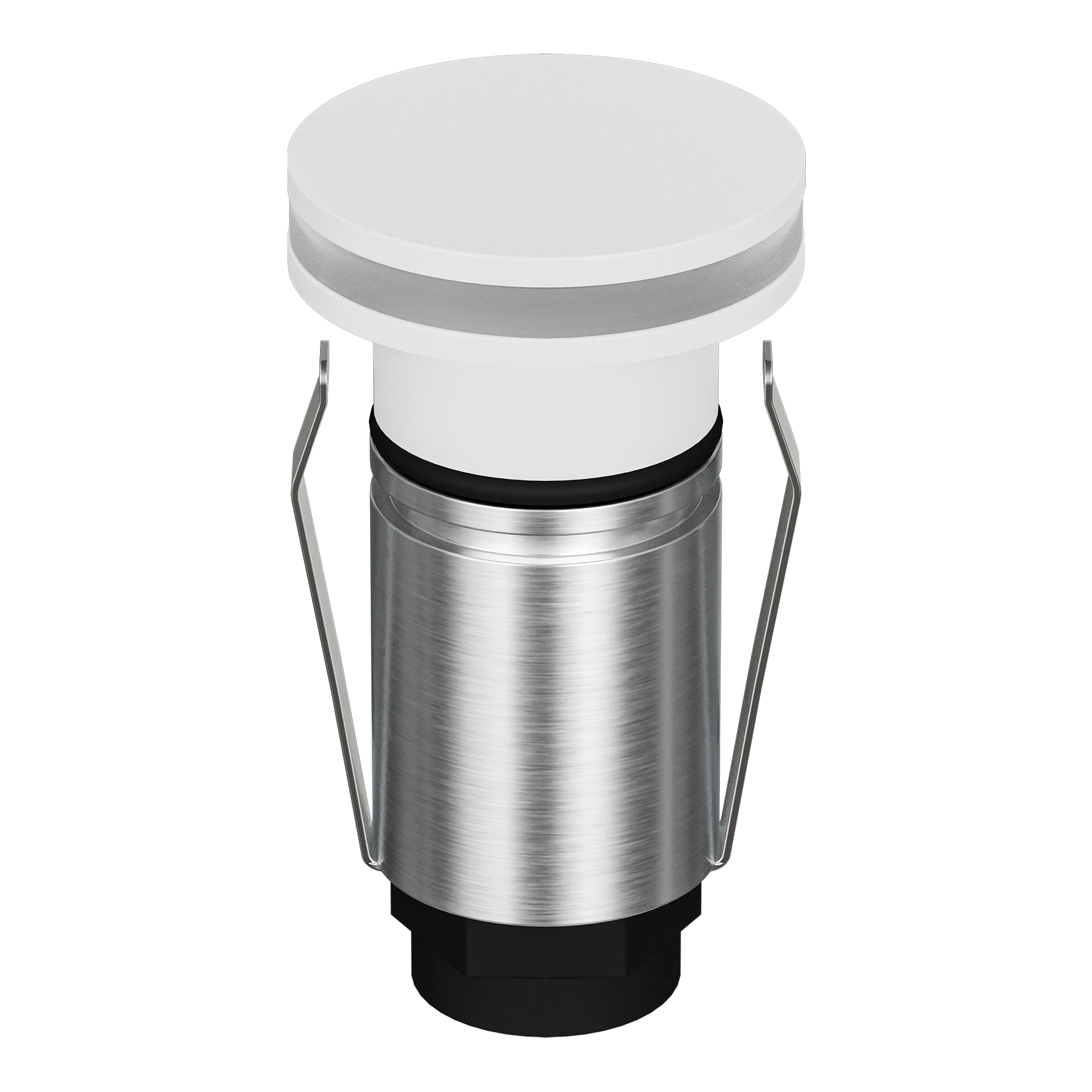

Emit Deck Light LED 25mm RGBW 12/24V Halo White Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, halo fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-RGBW-WHT, Emit-25 RGBW Inground Light, 25mm RGBW Deck Light
Technical Specifications
- Variant: EMIT-25-RGBW-WHT
- Item Number: 11519
- Light Source: 1W CREE LED
- Colour Output: RGBW
- Input Voltage: 24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- Lifespan: 50,000 hours
- Cutout Diameter: 19mm without cannister; 24mm with cannister
- Load Rating: 1500kg drive-over
- Operating Temperature: -20°C to 40°C
- Electrical Classification: Class III
- Required Accessories: 24V DC LED driver and RGBW colour controller
- Dimensions (H x L x W): 42mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm diameter inground and deck light
- RGBW colour-changing output for feature and architectural lighting
- White halo fascia
- 36° standard beam angle
- IP67 protection for outdoor and inground applications
- IK10 impact rating
- Suitable for drive-over installations up to 1500kg
- Parallel wiring with a 24V constant-voltage LED driver
- Optional 19° and 60° lenses, honeycomb and opal diffuser accessories
- 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and follow the manufacturer's installation instructions.
Applications
- Deck and inground lighting
- Landscape and pathway lighting
- Stair and step lighting
- Architectural feature lighting
- Drive-over outdoor lighting installations
- Residential and commercial exterior lighting
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires
- AS/NZS 60598.2.23: Applicable requirements for extra-low-voltage lighting systems
- AS/NZS 3000: Applicable electrical installation requirements for wiring and connection of the lighting system
Environmental Benefits
- Low 1W power consumption supports energy-efficient feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- LED technology avoids routine lamp replacement compared with replaceable-lamp fittings
- IP67 construction supports extended outdoor service life when correctly installed and maintained
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 RGBW range, subject to the manufacturer's warranty terms, proof of purchase, licensed electrician installation and adherence to installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
