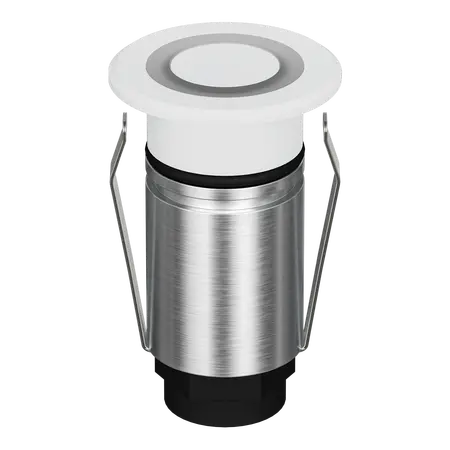

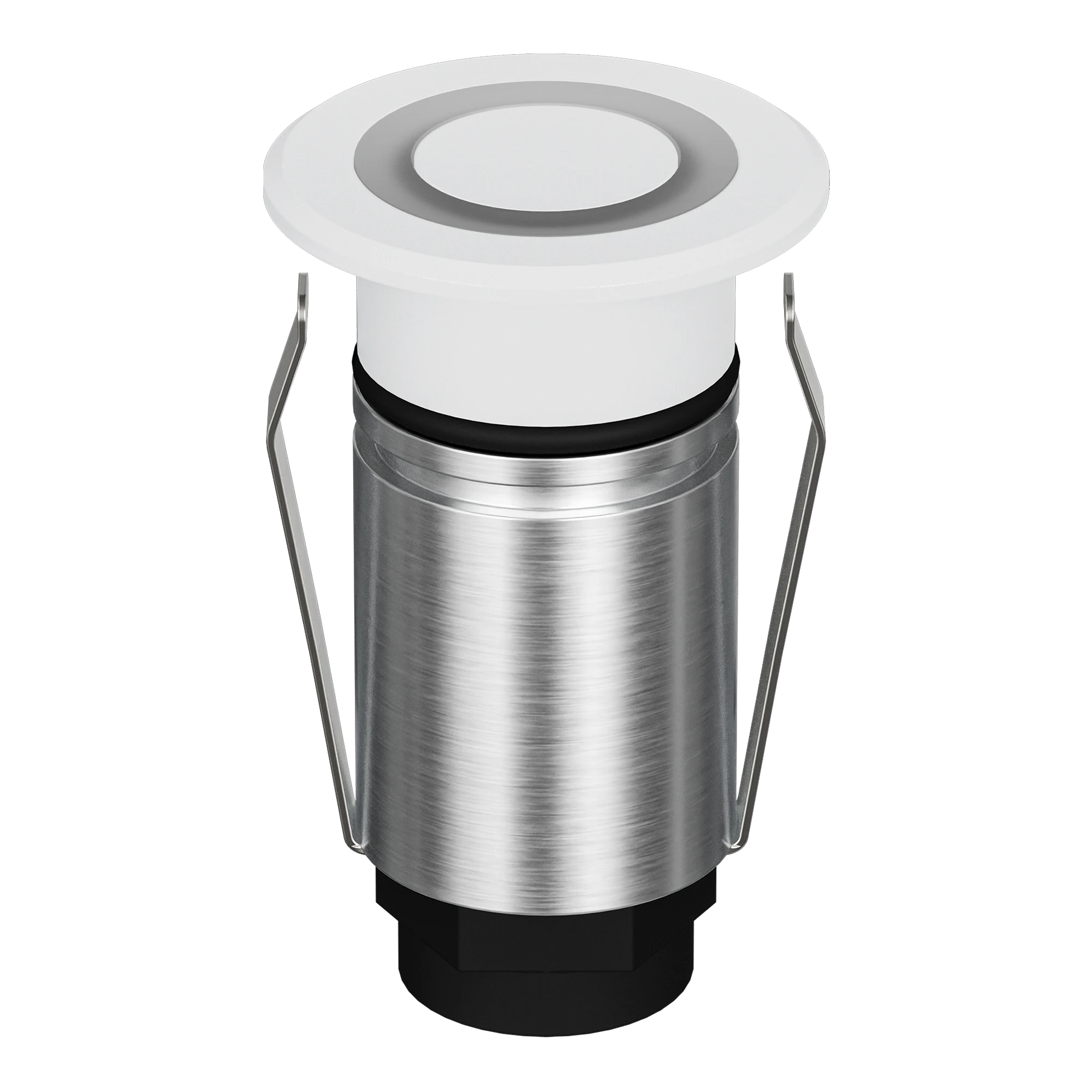

Emit Deck Light LED 25mm RGBW 12/24V Ring White Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, ring fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 25mm RGBW Inground Light, Mini LED Deck Light, Recessed Deck Light, Ring-Fascia Inground Light
Technical Specifications
- Input Voltage: 24V DC constant voltage
- Power: 1W
- Light Source: CREE LED
- Colour Output: RGBW colour changing
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimmable: No
- LED Lifespan: 50,000 hours
- Cutout Diameter: 19mm without cannister; 24mm with cannister
- Body Depth: 45mm
- Operating Temperature: -20°C to 40°C
- Electrical Classification: Class III
- Control Requirement: RGBW colour controller
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Fascia: Ring, white finish
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm recessed deck and inground light
- RGBW output for red, green, blue and white illumination
- 36° standard beam angle for focused feature lighting
- IP67-rated construction for suitable outdoor and wet-area applications
- IK10 impact resistance rating
- Compatible with optional 19° and 60° beam lenses
- Requires a separate 24V DC constant-voltage LED driver
- Requires an RGBW colour controller for colour selection
- Available with a white ring fascia
- Designed for minimalistic architectural and landscape lighting effects
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a suitable 24V DC constant-voltage LED driver and compatible RGBW colour controller, wire fittings in parallel, and follow the manufacturer's installation instructions. Isolate the power supply before installation.
Applications
- Residential and commercial deck lighting
- Outdoor steps, paths and walkways
- Landscape and garden feature lighting
- Architectural feature illumination
- Inground lighting installations
- Hospitality, entertainment and retail feature lighting
- Low-voltage outdoor lighting systems
Standards & Compliance
- AS/NZS 60598.1:2025 - relevant general safety requirements for luminaires
- AS/NZS 60598.2.13 - relevant particular requirements for ground-recessed luminaires
- AS/NZS 3000 - applicable requirements for electrical installation and wiring
Environmental Benefits
- Low 1W power consumption supports reduced operational energy use
- LED lifespan of up to 50,000 hours can reduce replacement frequency and material waste
- Low-voltage Class III operation supports safer extra-low-voltage lighting system design
- Efficient LED technology reduces energy demand compared with conventional halogen feature lights
Warranty Information
Backed by Domus Lighting's 5-year replacement warranty, subject to the manufacturer's warranty terms and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
