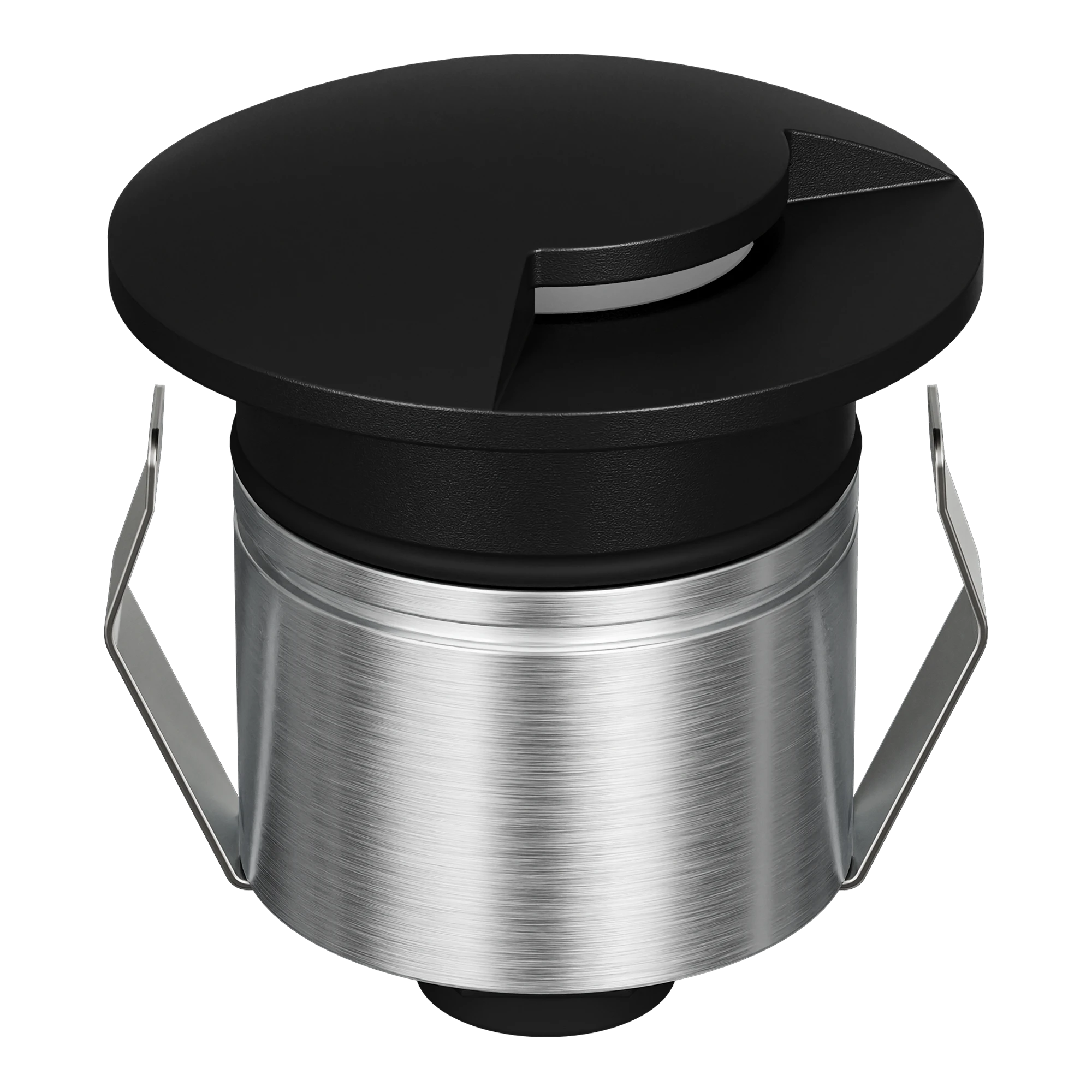

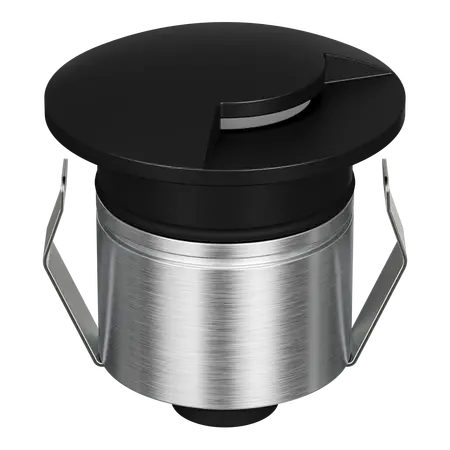

Emit Deck Light LED 55mm RGBW 12/24V 1-Way Black Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 1-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-BLK, RGBW LED Inground Light, Mini Recessed Deck Light, Outdoor RGBW Step Light
Technical Specifications
- Power: 2.5W
- Input Voltage: 12/24V DC; 24V DC constant-voltage operation recommended
- LED Type: CREE
- Light Colour: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Dimming: No
- Cutout Diameter: 43mm without canister; 48mm with canister
- Load Rating: 1500kg drive-over
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Controller Requirement: RGBW colour controller
- Fascia: 1-way black
- Body Material: 316 stainless steel with black fascia
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- RGBW colour-changing illumination for architectural and feature lighting
- Compact 55mm inground and deck light format
- Black 1-way fascia for directional light distribution
- 36° standard beam angle with optional lens accessories
- IP67-rated construction for suitable outdoor applications
- IK10 impact resistance and 1500kg drive-over load rating
- Compatible with 12/24V DC systems, with a constant-voltage LED driver required
- Optional honeycomb, frosted diffuser and beam-angle accessories
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a suitable 12/24V DC constant-voltage LED driver and compatible RGBW controller, and install the electrical system in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
- Deck and outdoor entertainment area lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Residential and commercial inground lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 3000: Wiring Rules — applicable to installation of the 12/24V DC lighting circuit
- AS/NZS 60598.2.23:2021 — relevant standard for extra-low-voltage lighting systems; product-specific certification was not stated in the available source
Environmental Benefits
- LED technology provides low-power illumination at 2.5W
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- Low-voltage DC operation supports safer, energy-conscious outdoor lighting installations
- Long-life stainless-steel construction can extend service life and reduce material consumption from replacements
Warranty Information
5-year replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus Lighting installation requirements; Australian Consumer Law rights also apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
