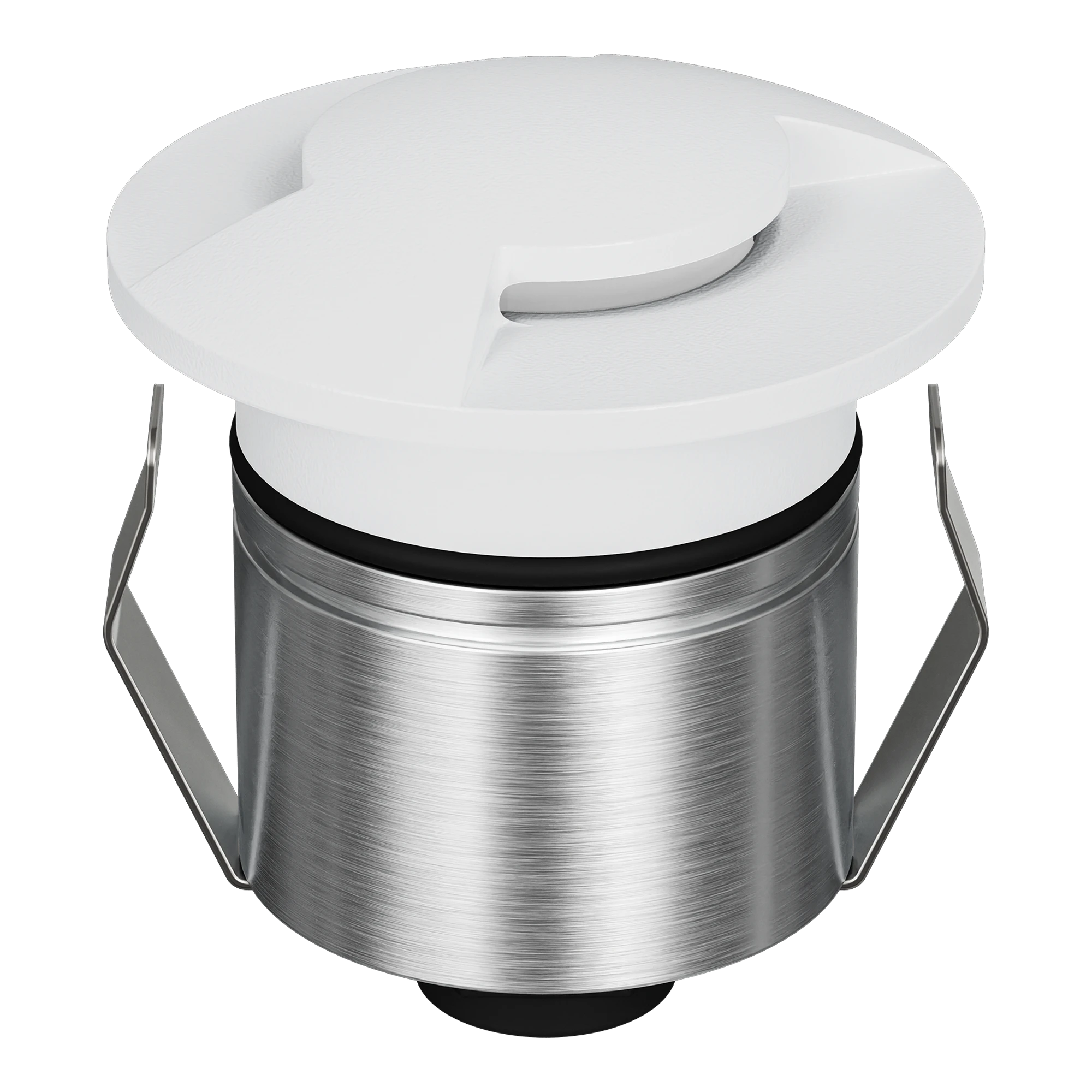

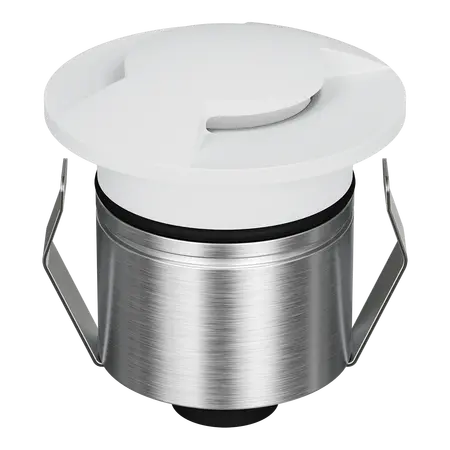

Emit Deck Light LED 55mm RGBW 12/24V 2-Way White Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-2WAY, Emit 55 RGBW Inground Light, 55mm RGBW LED Deck Light, Mini RGBW Inground Light
Technical Specifications
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Light Colour: RGBW colour-changing
- Beam Angle: 36° standard
- Optional Beam Angles: 19° and 60° lenses available
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Load Rating: Up to 1500kg
- Lifespan: 50,000 hours
- Dimming: No
- Cutout Diameter: 43mm without canister; 48mm with canister
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 12/24V DC LED driver required
- Fascia: 2-way white fascia
- Variant ID: 11541
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Compact 55mm RGBW inground and deck light
- Two-way fascia directs light in opposite directions
- Dynamic RGBW colour-changing capability
- White metal fascia for discreet architectural installations
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and drive-over suitability
- 36° beam angle supplied as standard
- Optional narrow, medium, wide, honeycomb and frosted diffuser accessories
- Compatible with constant-voltage LED drivers
- Suitable for landscape, pathway, stair and feature lighting
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Connect to a compatible 12/24V DC constant-voltage LED driver and RGBW controller, following the manufacturer's installation instructions and applicable wiring requirements. Do not connect directly to mains voltage.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Architectural accent lighting
- Inground feature lighting
- Outdoor entertainment areas
- Drive-over landscape lighting where the installation surface and load conditions are suitable
Standards & Compliance
- AS/NZS 60598.1 for general luminaire safety requirements, where applicable to the complete luminaire assembly
- AS/NZS 3000 for the electrical installation and wiring system
- AS/NZS 60598.2.1 may apply to fixed general-purpose luminaires depending on the final installation configuration
Environmental Benefits
- Low 2.5W LED power consumption can reduce operating energy compared with higher-wattage conventional lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- 12/24V DC Class III operation supports low-voltage outdoor lighting systems
- LED light source avoids mercury-containing fluorescent technology
- Metal fascia and housing components may be recyclable at end of service life
Warranty Information
Domus Lighting lists a 5-year replacement warranty for the EMIT-55 product range. Warranty eligibility requires installation by a licensed electrician, compliant installation, proof of purchase and use within the product's IP rating and operating requirements. Current Domus warranty terms should be checked before purchase, as the general warranty schedule may vary by application.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock availability.
