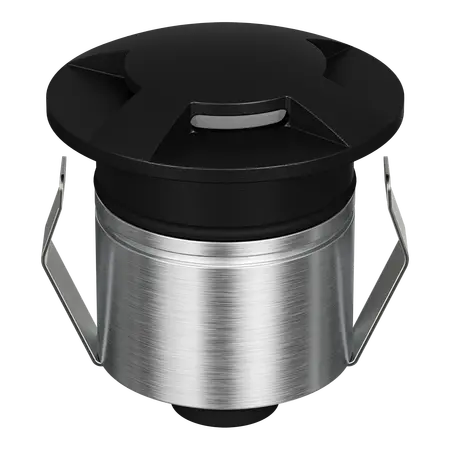

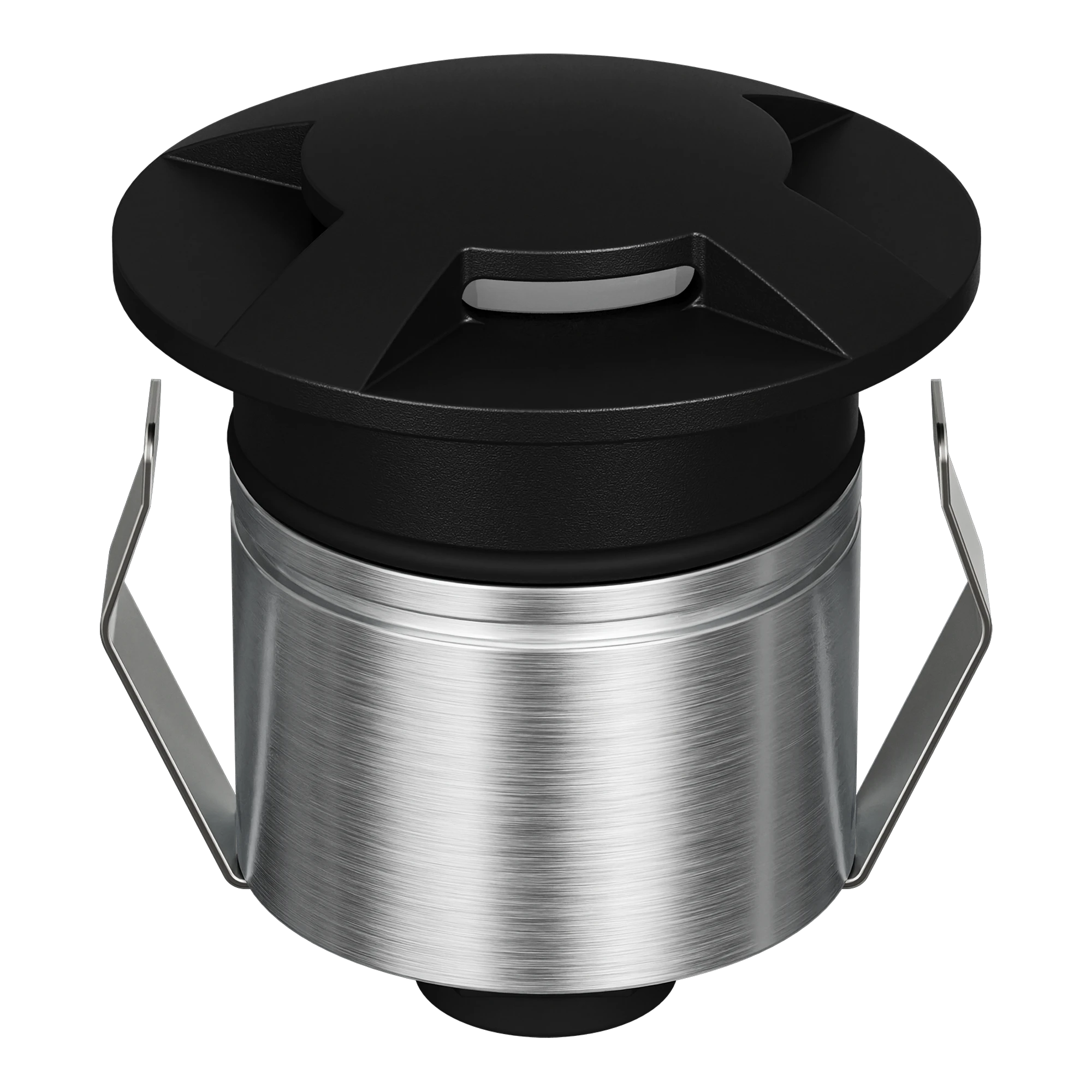

Emit Deck Light LED 55mm RGBW 12/24V 3-Way Black Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55-RGBW-3-WAY, RGBW Inground Light, RGBW Recessed Deck Light, 3-Way Inground Uplight
Technical Specifications
- Light Source: Integrated 2.5W CREE LED
- Light Colour: RGBW colour-changing
- Input Voltage: 12/24V DC listed; datasheet specifies 24V DC
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Fascia Style: 3-way
- Finish: Black
- Dimming: Non-dimmable
- Lifespan: 50,000 hours
- Drive-Over Rating: 1,500kg
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- Required Accessories: 24V constant-voltage LED driver and RGB colour controller
- Wiring: Parallel connection
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- RGBW colour-changing LED output for architectural and feature lighting
- Three-way black fascia design for directional light distribution
- 36° standard beam angle with optional 19° and 60° lenses
- IP67-rated construction for outdoor, inground and deck applications
- IK10 impact rating and drive-over rating up to 1,500kg
- Compatible with optional opal diffuser and honeycomb accessories
- Designed for landscape, pathway, stair, deck and architectural lighting
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use a compatible constant-voltage LED driver and RGB colour controller; connect fittings in parallel. The 240V side of the driver must be installed by a suitably licensed electrical professional.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Inground architectural accent lighting
- Drive-over outdoor lighting installations
- RGBW feature lighting controlled through a compatible colour controller
Standards & Compliance
- Applicable to AS/NZS 60598.2.2 requirements for recessed luminaires
- Installation and electrical connection should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
- Low 2.5W LED power consumption supports reduced operating energy use
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- LED technology produces less heat and generally uses less energy than equivalent halogen lighting
- IP67 construction and robust IK10-rated housing can support extended outdoor service life
Warranty Information
5-year replacement warranty. Domus warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with the manufacturer's guidelines. Warranty duration may vary by application under Domus Lighting's current warranty policy.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
