Trade Discount 25%

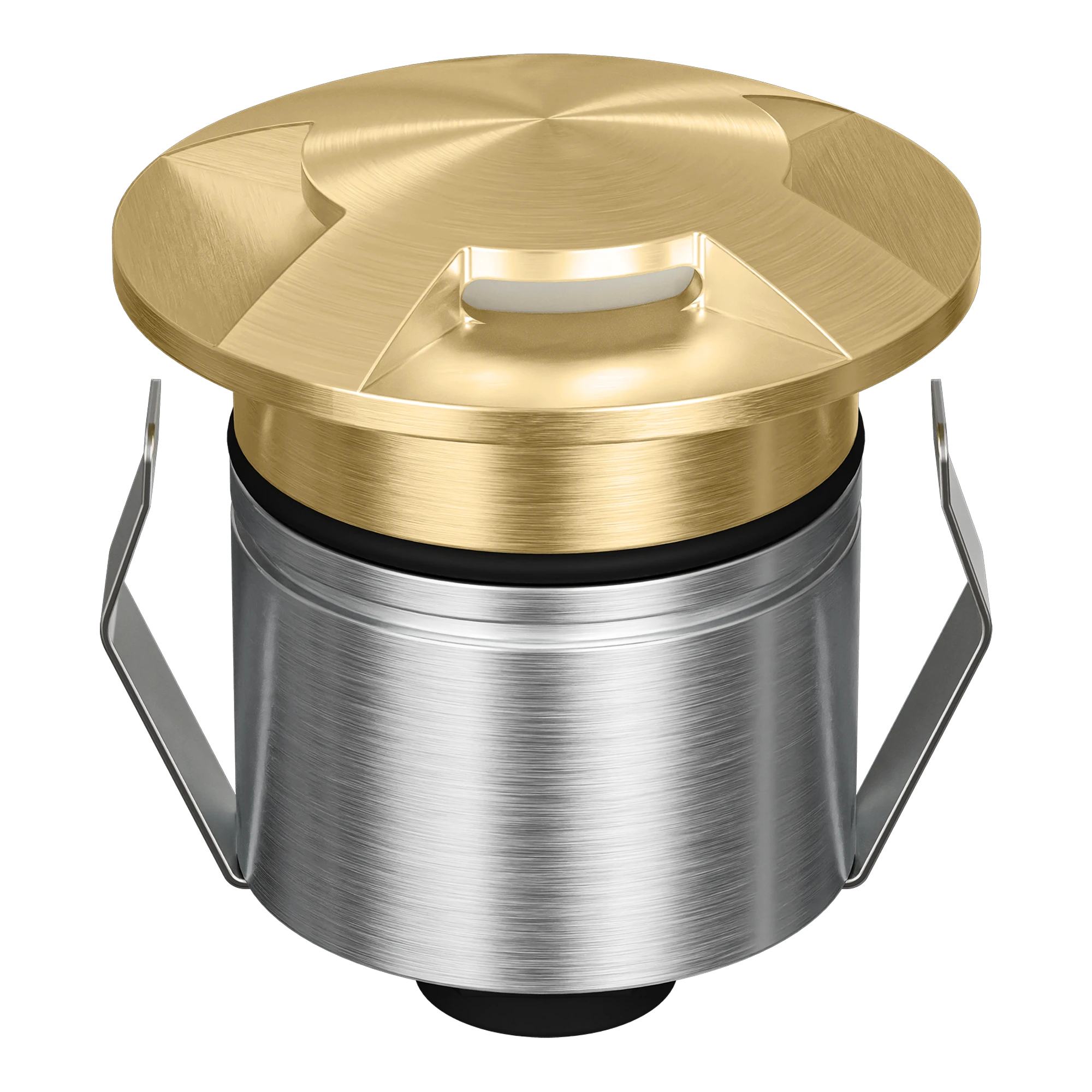

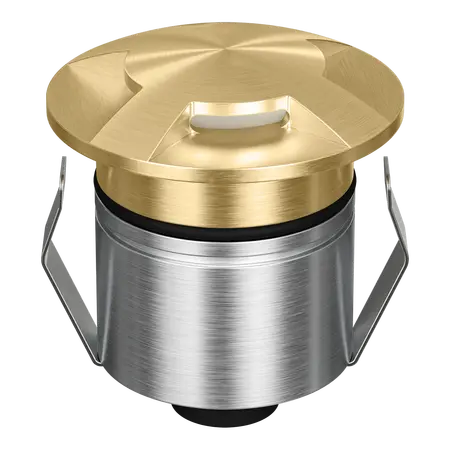

Emit Deck Light LED 55mm RGBW 12/24V 3-Way Brass Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-55 RGBW LED Deck Light, RGBW LED Inground Light, Mini Inground RGBW Light, 3-Way LED Deck Light
Technical Specifications
- Product Type: Recessed inground and deck light
- Light Source: CREE LED
- Colour Output: RGBW colour-changing
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Fascia: 3-way brass
- Fascia Diameter: 55mm
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- LED Life: 50,000 hours
- Colour Controller: RGBW colour controller required
- Driver: 12V or 24V DC LED driver required; wire in parallel
- Drive-Over Rating: Up to 2,000kg
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- RGBW colour-changing LED output for architectural and feature lighting
- Three-way brass fascia directs light through three apertures
- Compact 55mm recessed design for decks, paths, stairs and landscape areas
- IP67 protection for outdoor and inground applications
- IK10 impact protection and drive-over rating up to 2,000kg
- Compatible with optional beam lenses, honeycomb and frosted diffuser accessories
- Low 2.5W power consumption
- Requires separate 12/24V DC LED driver and RGBW controller
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver and RGBW controller, with the driver and controller installed in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Outdoor inground lighting
- Drive-over landscape and pedestrian-area lighting
Standards & Compliance
- AS/NZS 60598.2.2:2016 for recessed luminaires, where applicable to the installation
- AS/NZS 3000:2018 for electrical installation and wiring requirements
Environmental Benefits
- Low 2.5W LED power consumption can reduce operating energy compared with higher-wattage decorative lighting
- Approximately 50,000-hour LED life helps reduce replacement frequency and associated waste
- Brass fascia material is durable and recyclable at end of service life
- IP67 construction supports extended outdoor service life in suitable installations
Warranty Information
5-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
