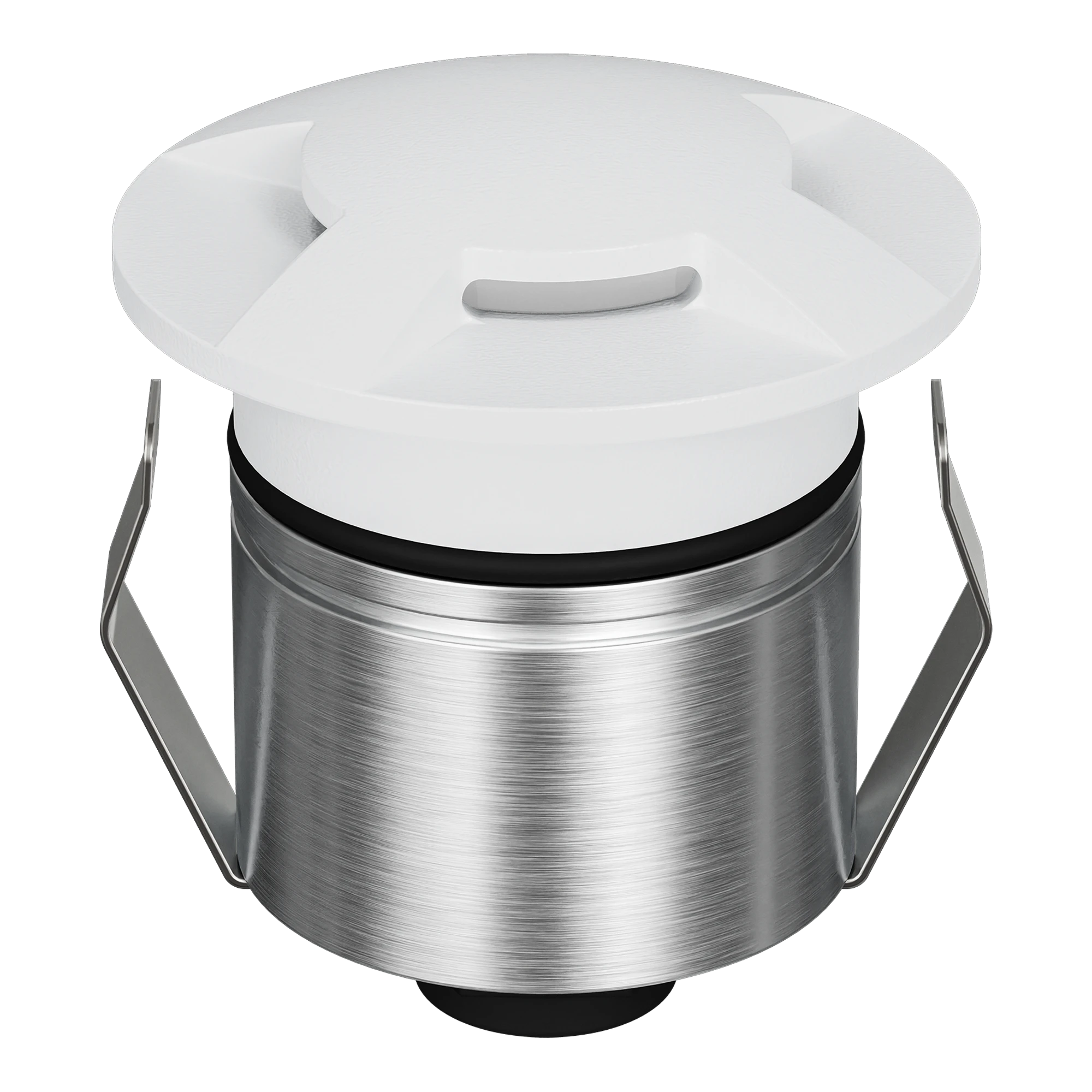

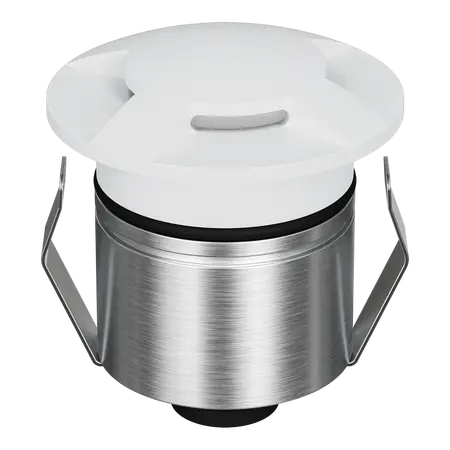

Emit Deck Light LED 55mm RGBW 12/24V 3-Way White Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-3WAY-WHT, Domus Emit 55 RGBW Inground Light, RGBW LED Deck Light, 3-Way Inground Light
Technical Specifications
- Light Type: RGBW LED inground and deck light
- Fascia Style: 3-way
- Fascia Colour: White
- Power: 2.5W
- Input Voltage: 24V DC constant voltage; compatible with 12/24V DC systems as specified
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Output: Red, green, blue and white
- Dimming: No
- IP Rating: IP67
- IK Rating: IK10
- Rated Lifespan: 50,000 hours
- Load Rating: Up to 1,500kg drive-over
- Cut-out: 43mm without cannister or 48mm with cannister
- Control Requirement: RGBW colour controller required
- Driver Requirement: 24V constant-voltage LED driver; wire fittings in parallel
- Classification: Class III
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Compact 55mm inground and deck light for feature and accent lighting
- RGBW colour-changing output for architectural and landscape applications
- White 3-way fascia for directional light distribution
- 36° beam angle supplied as standard
- IP67 protection for suitable outdoor and inground installations
- IK10 impact rating and up to 1,500kg drive-over load rating
- Optional beam lenses, honeycomb and opal diffuser accessories available
- Requires a compatible RGBW controller and constant-voltage LED driver
- 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 24V DC constant-voltage LED driver and RGBW controller, with fittings wired in parallel. Ensure installation follows the manufacturer's instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair lighting
- Architectural feature lighting
- Garden and outdoor entertainment area lighting
- Drive-over outdoor lighting where the specified load rating is suitable
Standards & Compliance
- Installation should comply with AS/NZS 3000 Wiring Rules for extra-low-voltage electrical installations.
- AS/NZS 60598.2.23:2021 is the relevant Australian/New Zealand particular standard for extra-low-voltage lighting systems; confirm product certification and installation suitability with the manufacturer or responsible electrical contractor.
Environmental Benefits
- Low 2.5W LED power consumption can reduce operating energy compared with higher-wattage conventional lighting
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- IP67 and IK10 construction can support longer service life in suitable outdoor installations
- Extra-low-voltage 24V DC operation supports safer and more energy-efficient landscape lighting system design
Warranty Information
5-year replacement warranty as stated by Domus Lighting for the EMIT-55 RGBW range. Warranty eligibility requires purchase in Australia, installation by a licensed electrician and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
