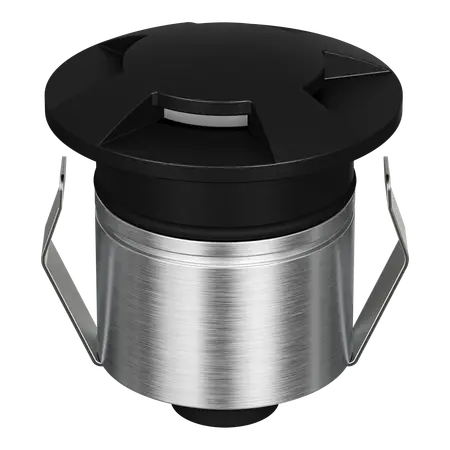

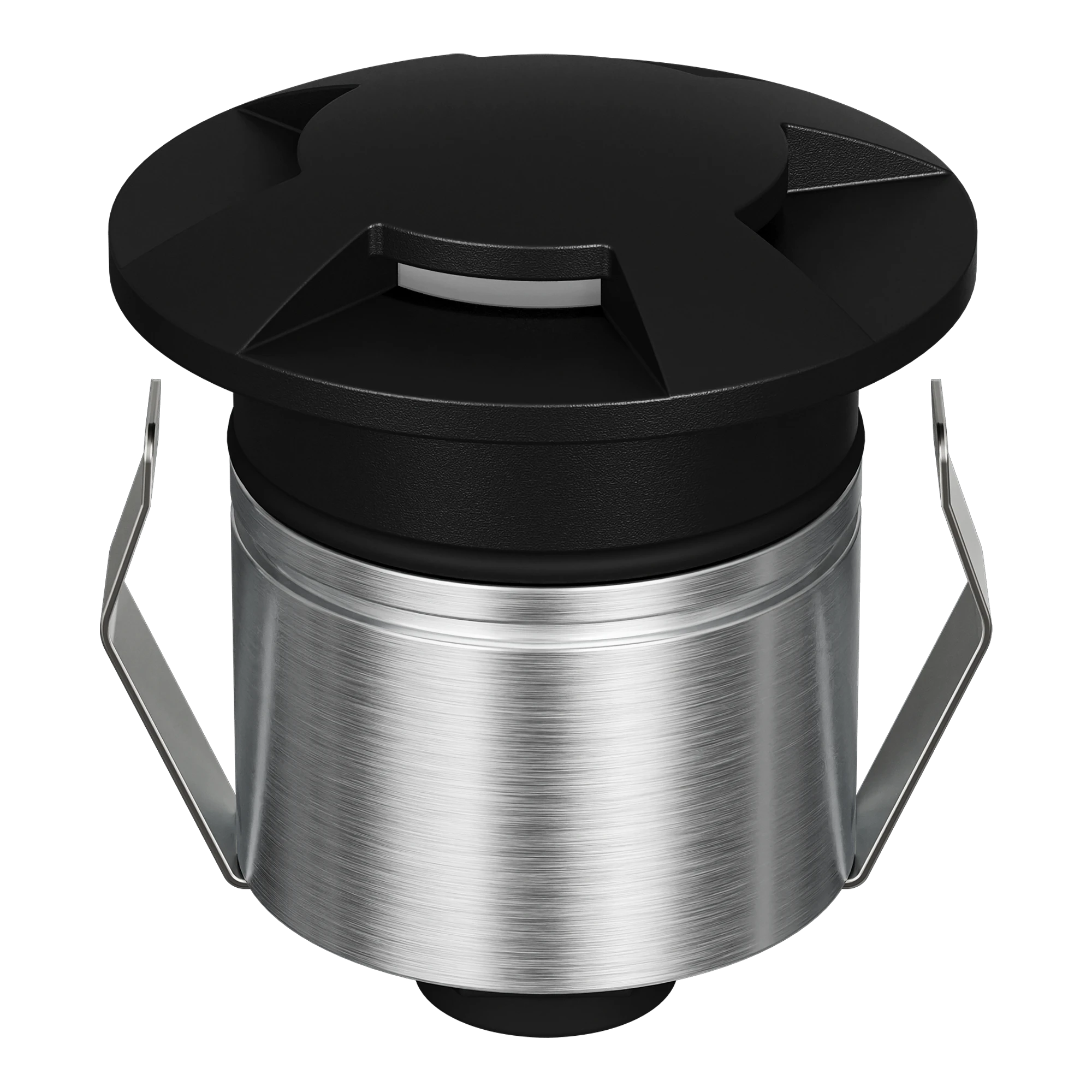

Emit Deck Light LED 55mm RGBW 12/24V 4-Way Black Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 4-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-4WAY, EMIT-55-RGBW-BLK 4-Way, RGBW Mini Inground Light, RGBW LED Deck Light
Technical Specifications
- Power: 2.5 W
- Input Voltage: 12/24 V DC constant voltage
- Light Source: CREE LED
- Light Colour: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimming: Non-dimmable
- Lifespan: 50,000 hours
- Cutout: 43 mm without cannister; 48 mm with cannister
- Load Rating: Up to 1,500 kg drive-over
- Driver Requirement: 12/24 V DC constant-voltage LED driver, wired in parallel
- Controller Requirement: RGBW colour controller
- Fascia: 4-way black fascia
- Body Material: Stainless steel with black fascia finish
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- RGBW colour-changing light output
- Four-way fascia directs light in four directions
- Compact 55 mm inground and deck light format
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and inground applications
- IK10 impact protection
- Suitable for drive-over areas when installed correctly
- Optional beam lenses, honeycomb and frosted diffuser accessories available
- Requires separate LED driver and RGBW controller
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12/24 V DC constant-voltage LED driver and RGBW controller, and install the fitting in accordance with the manufacturer's instructions.
Applications
- Deck and patio feature lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Architectural accent lighting
- Inground lighting in drive-over areas
- Outdoor entertainment areas and hospitality projects
Standards & Compliance
- AS/NZS 60598.1:2017 – general requirements and tests for luminaires; verify the product's specific conformity documentation before installation
Environmental Benefits
- LED technology provides lower energy consumption than equivalent conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Stainless steel construction is durable and recyclable at end of service life
- IP67 and IK10 protection can extend service life in demanding outdoor installations
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and installation in accordance with the manufacturer's instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
