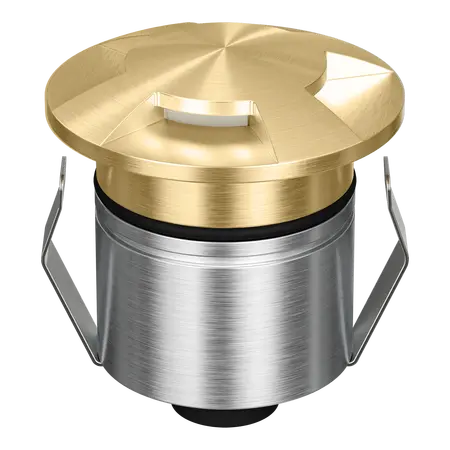

Emit Deck Light LED 55mm RGBW 12/24V 4-Way Brass Fascia Domus

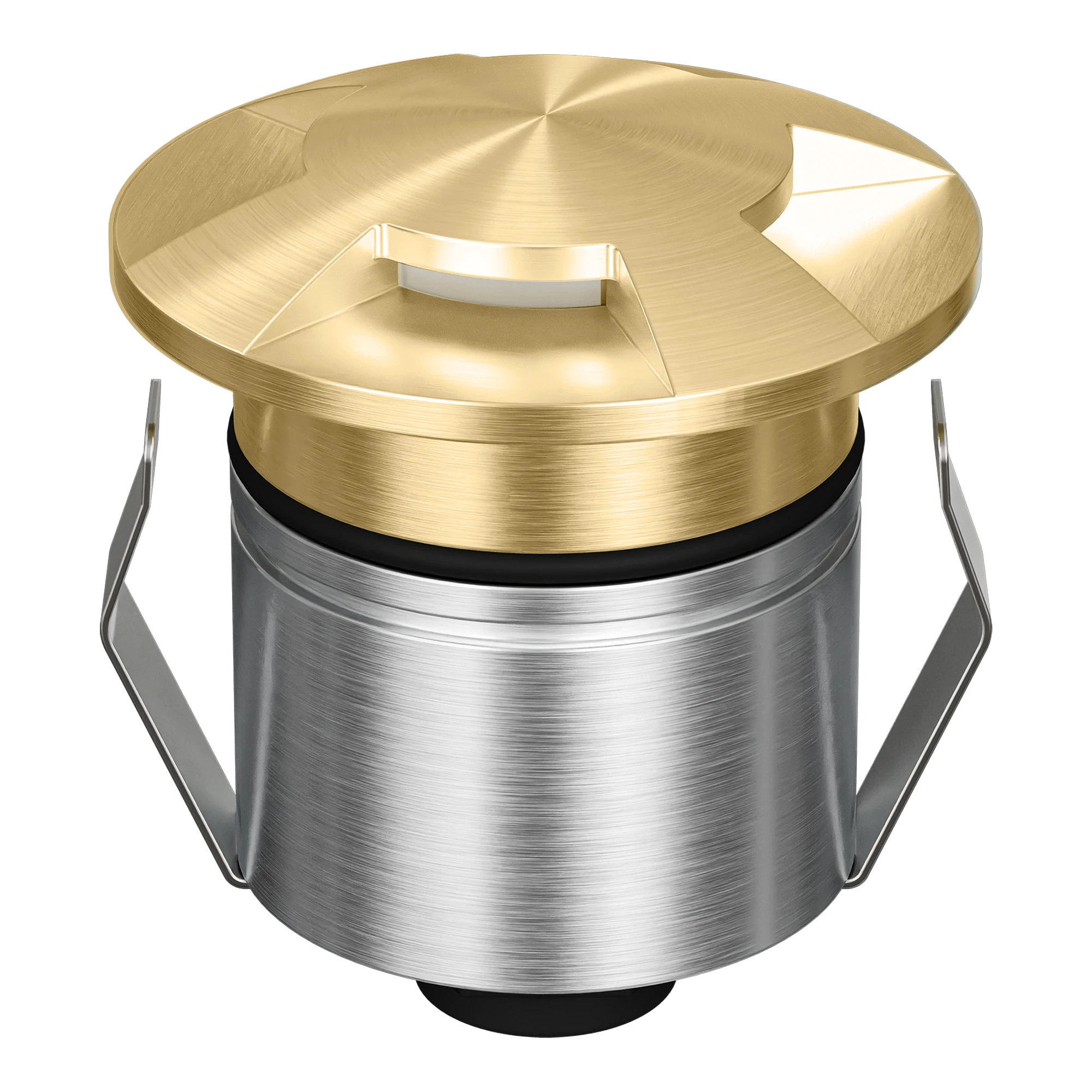

Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 4-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-4WAY, 55mm RGBW LED Deck Light, Mini Inground RGBW Light, 4-Way LED Decklight
Technical Specifications
- Product Type: RGBW inground and deck light
- Fascia: 4-way brass
- LED Type: CREE
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Output: RGBW colour-changing
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Rating: Up to 1500kg
- Dimming: No
- Lifespan: 50,000 hours
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- Control Requirement: RGBW colour controller required
- Driver Requirement: 24V constant-voltage LED driver; connect fittings in parallel
- Variant ID: 10153
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Compact 55mm RGBW inground light for deck, pathway, stair and feature lighting
- Four-way brass fascia directs light in four directions
- RGBW colour-changing output for architectural and landscape lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and drive-over capability up to 1500kg
- Optional beam-angle lenses, honeycomb and frosted diffuser accessories available
- Requires a compatible 24V DC constant-voltage LED driver and RGBW controller
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver, connect fittings in parallel, and install the RGBW controller in accordance with the manufacturer's instructions and applicable electrical installation requirements.
Applications
- Residential and commercial deck lighting
- Inground landscape and garden lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Outdoor hospitality, poolside and entertainment-area lighting
Standards & Compliance
- AS/NZS 60598.1:2025 - applicable general requirements and tests for luminaires; product-specific certification was not stated by the manufacturer
- AS/NZS 3000:2018 - applicable electrical installation requirements for the associated low-voltage lighting system
Environmental Benefits
- Low 2.5W power consumption reduces operating energy compared with higher-wattage feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- Brass fascia components are recyclable at end of service life
- 12/24V DC operation supports efficient extra-low-voltage lighting system design
Warranty Information
5-year replacement warranty for the EMIT-55 series. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with Domus installation guidelines. Standard warranty provides replacement rather than removal or reinstallation costs.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
