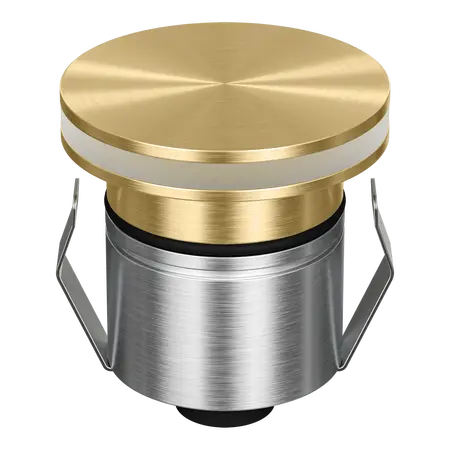

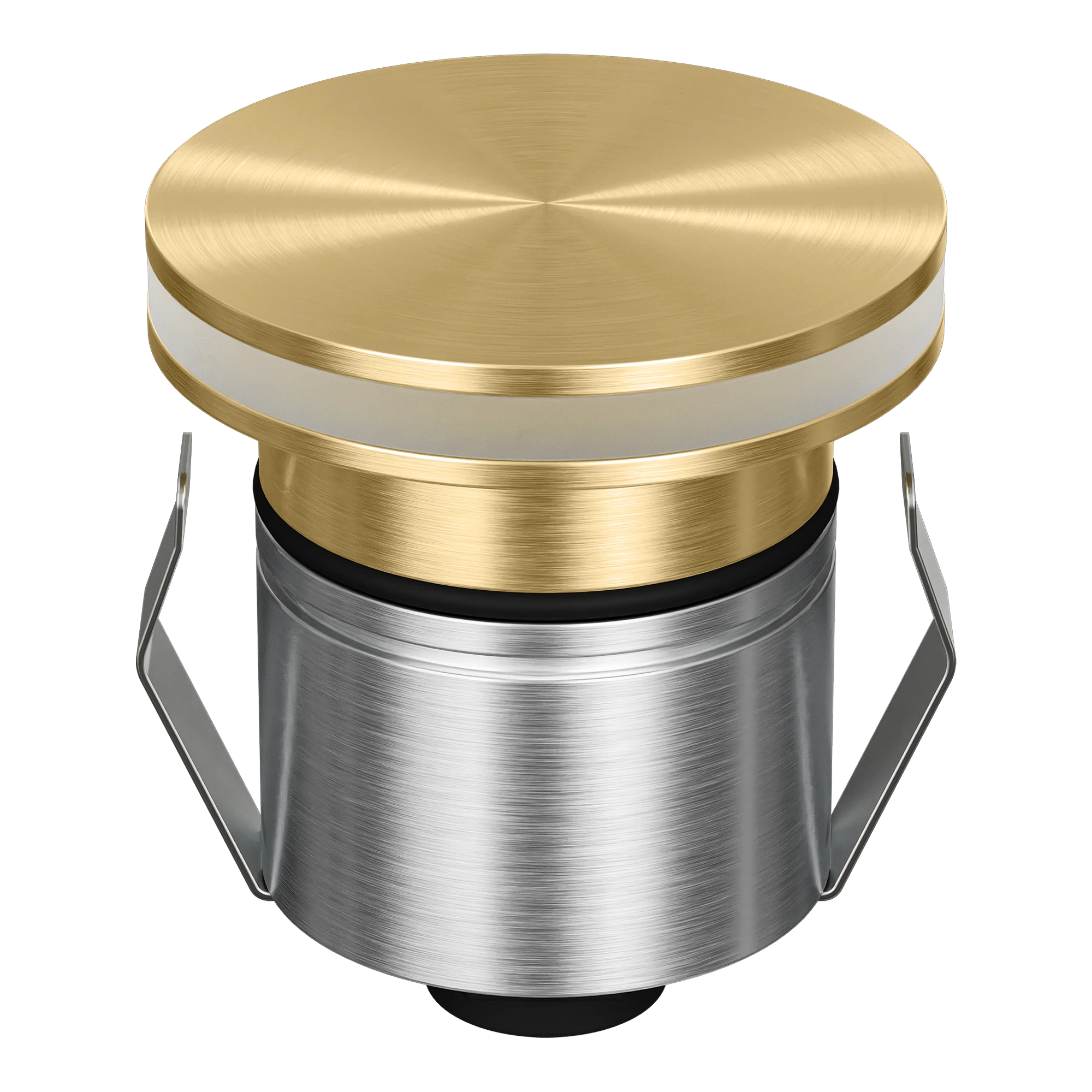

Emit Deck Light LED 55mm RGBW 12/24V Halo Brass Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, halo fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-BRS Halo, Domus Emit 55 RGBW Inground Light, 55mm RGBW Recessed Deck Light
Technical Specifications
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage; 24V DC recommended
- Colour Output: RGBW colour-changing
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Colour Rendering Index: ≥90
- Dimming: No
- Load Rating: 1,500kg drive-over
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Control Requirement: RGBW colour controller
- Fascia: Halo
- Finish: Brass
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- 55mm overall diameter for compact recessed deck and inground installations
- Halo brass fascia for architectural and landscape lighting effects
- RGBW colour-changing output with separate white channel
- 36° standard beam angle for focused feature lighting
- IP67-rated construction for suitable outdoor applications
- IK10 impact rating and 1,500kg drive-over load rating
- Optional 19° and 60° beam lenses, linear lens, opal diffuser and honeycomb accessory
- Designed for use with a separate constant-voltage LED driver and RGBW controller
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, connect fittings in parallel, and follow the manufacturer's installation instructions. The driver and controller are not included.
Applications
- Residential and commercial deck lighting
- Inground landscape and garden lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Drive-over outdoor lighting where the installation conditions and substrate are suitable
Standards & Compliance
- AS/NZS 60598.1:2017 – applicable general safety and construction requirements for luminaires
Environmental Benefits
- LED light source provides lower energy consumption than comparable halogen feature lighting
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- Brass fascia is durable and recyclable at end of service life
- Low-voltage 24V DC operation supports efficient extra-low-voltage lighting system design
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 range, subject to the manufacturer's current warranty terms, approved purchase, correct installation and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
