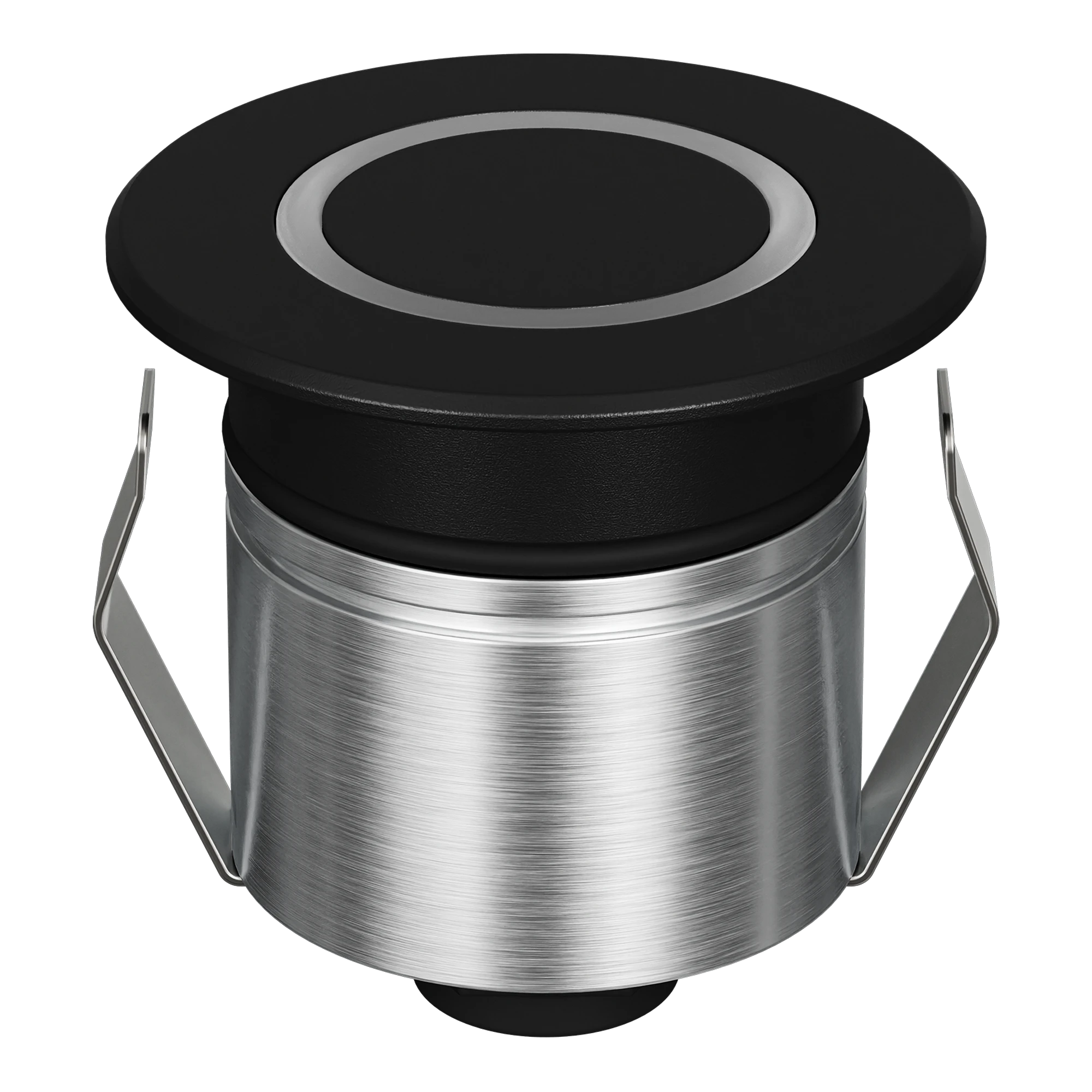

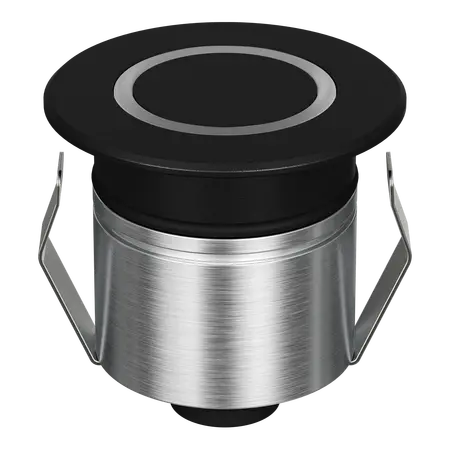

Emit Deck Light LED 55mm RGBW 12/24V Ring Black Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, ring fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-RING, Domus Emit 55 RGBW Inground Light, RGBW LED Inground Light, RGBW LED Deck Light
Technical Specifications
- Product Code: EMIT-55-RGBW-RING, variant 10135
- Light Source: CREE LED
- Light Type: RGBW colour-changing
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Load Rating: 1500kg
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Cutout Diameter: 43mm without canister; 48mm with canister
- Operating Temperature: -20°C to 40°C
- Required Accessories: Constant-voltage LED driver and RGBW colour controller
- Fascia Finish: Black
- Classification: Class III
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Compact 55mm RGBW inground and deck light
- Ring fascia with black finish
- Dynamic red, green, blue and white colour output
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1500kg drive-over rating
- Optional 19° and 60° beam lenses available
- Compatible with optional honeycomb and opal diffusers
- Requires 12/24V DC constant-voltage LED driver
- Requires a compatible RGBW colour controller
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect the luminaire to a suitable 12/24V DC constant-voltage LED driver and compatible RGBW controller in accordance with the manufacturer’s installation instructions and AS/NZS 3000 Wiring Rules.
Applications
- Residential and commercial deck lighting
- Inground feature and accent lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Architectural façade and outdoor feature lighting
- Drive-over areas requiring recessed outdoor luminaires
Standards & Compliance
- AS/NZS 60598.1:2025 – Luminaires, general requirements and tests; applicable luminaire safety standard
- AS/NZS 3000:2018 – Electrical installations, Wiring Rules; applicable to the electrical installation
Environmental Benefits
- LED technology provides lower energy consumption than conventional light sources for comparable feature-lighting applications
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage lighting system design
- LED construction contains no mercury-containing fluorescent lamp source
Warranty Information
5-year replacement warranty as specified by Domus Lighting for the EMIT-55 RGBW series. Warranty claims require installation by a licensed electrician and compliance with the manufacturer’s installation instructions; standard warranty coverage is replacement only unless otherwise stated.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
