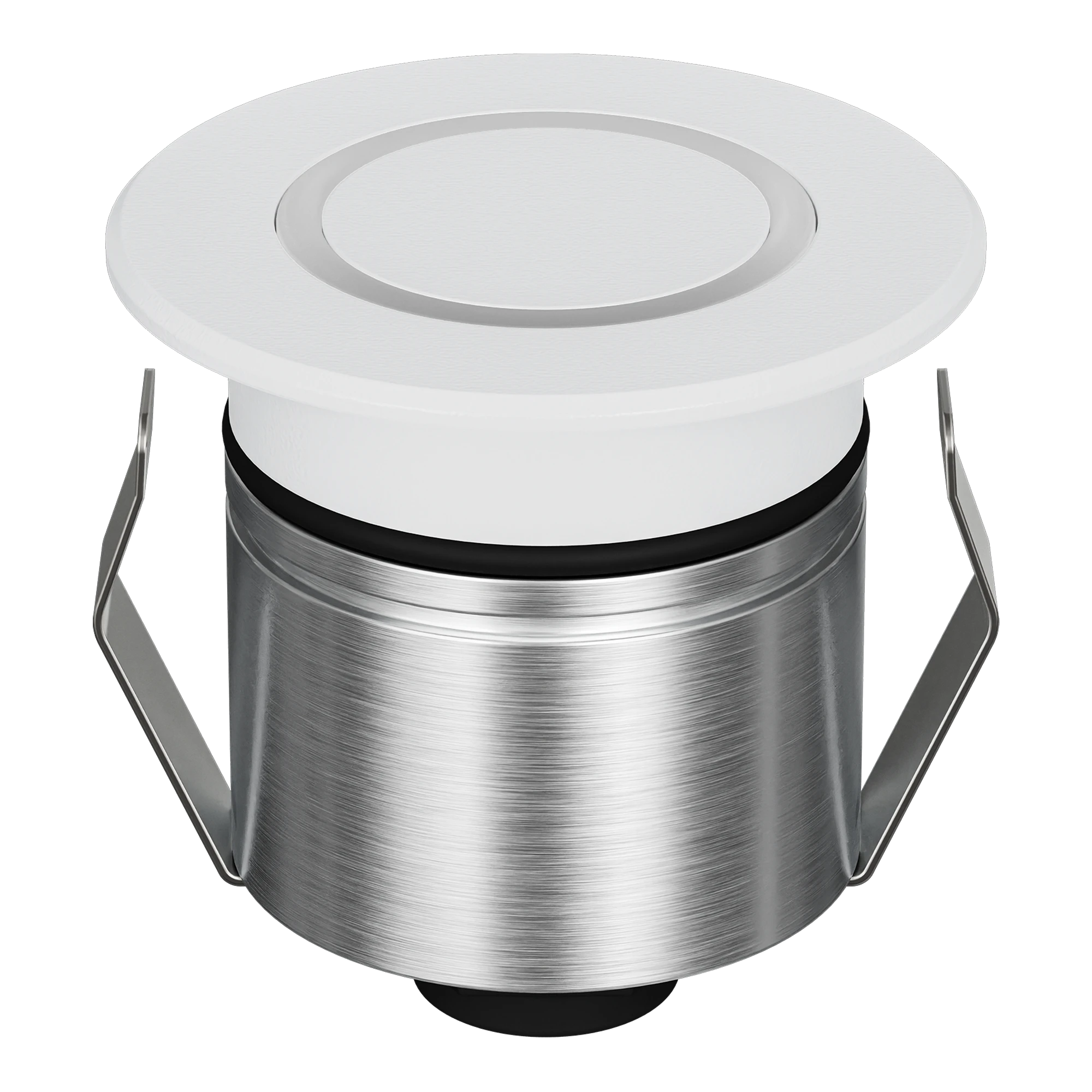

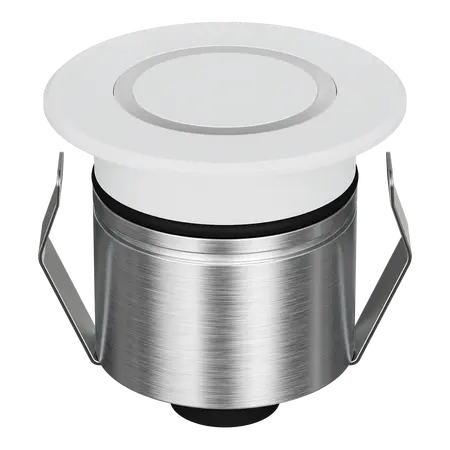

Emit Deck Light LED 55mm RGBW 12/24V Ring White Fascia Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, ring fascia, white. Requires 12/24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-RING, RGBW Inground Light, RGBW Deck Light, Ring Fascia LED Inground Light
- Item Number: EMIT-55-RGBW-WHT
- Variant ID: 11545
- Light Type: RGBW LED inground and deck light
- Fascia Style: Ring
- Fascia Colour: White
- Input Voltage: 24V DC constant voltage
- Power: 2.5W
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Load Rating: 1500kg
- Dimming: No
- Lifespan: 50,000 hours
- Control Requirement: RGB colour controller required
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Cutout Diameter: 43mm without canister or 48mm with canister
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
- RGBW colour-changing LED output
- White ring fascia for discreet architectural lighting
- Suitable for inground and deck installation
- IP67-rated construction for outdoor applications
- IK10 impact resistance
- 1500kg drive-over load rating
- 36° standard beam angle with optional lens accessories
- Compact 55mm overall diameter
- Optional opal diffuser, linear lens, narrow-beam lens, wide-beam lens and honeycomb accessory compatibility
- Installation should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements. Use a compatible 24V DC constant-voltage LED driver and RGB colour controller; connect fittings in parallel.
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Inground lighting around driveways and pedestrian areas
- RGBW feature lighting installations
- AS/NZS 60598.1: Applicable general safety requirements for luminaires
- AS/NZS 60598.2.1: Applicable particular requirements for fixed general-purpose luminaires
- AS/NZS 3000: Applicable installation requirements for extra-low-voltage lighting systems
- LED technology provides low-power operation at 2.5W
- 50,000-hour rated lifespan can reduce replacement frequency and waste
- Metal fascia and housing components can be recovered for recycling at end of life
- Constant-voltage low-voltage operation supports efficient LED lighting system design
5-year replacement warranty for the EMIT-55 product range. Warranty eligibility requires installation by a licensed electrician, compliance with installation instructions and purchase through an authorised distributor. Domus' current warranty schedule lists exterior deck and inground lights with a 3-year residential and 12-month commercial replacement warranty; the product datasheet specifically states a 5-year replacement warranty, which should take precedence for this model subject to applicable terms.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
