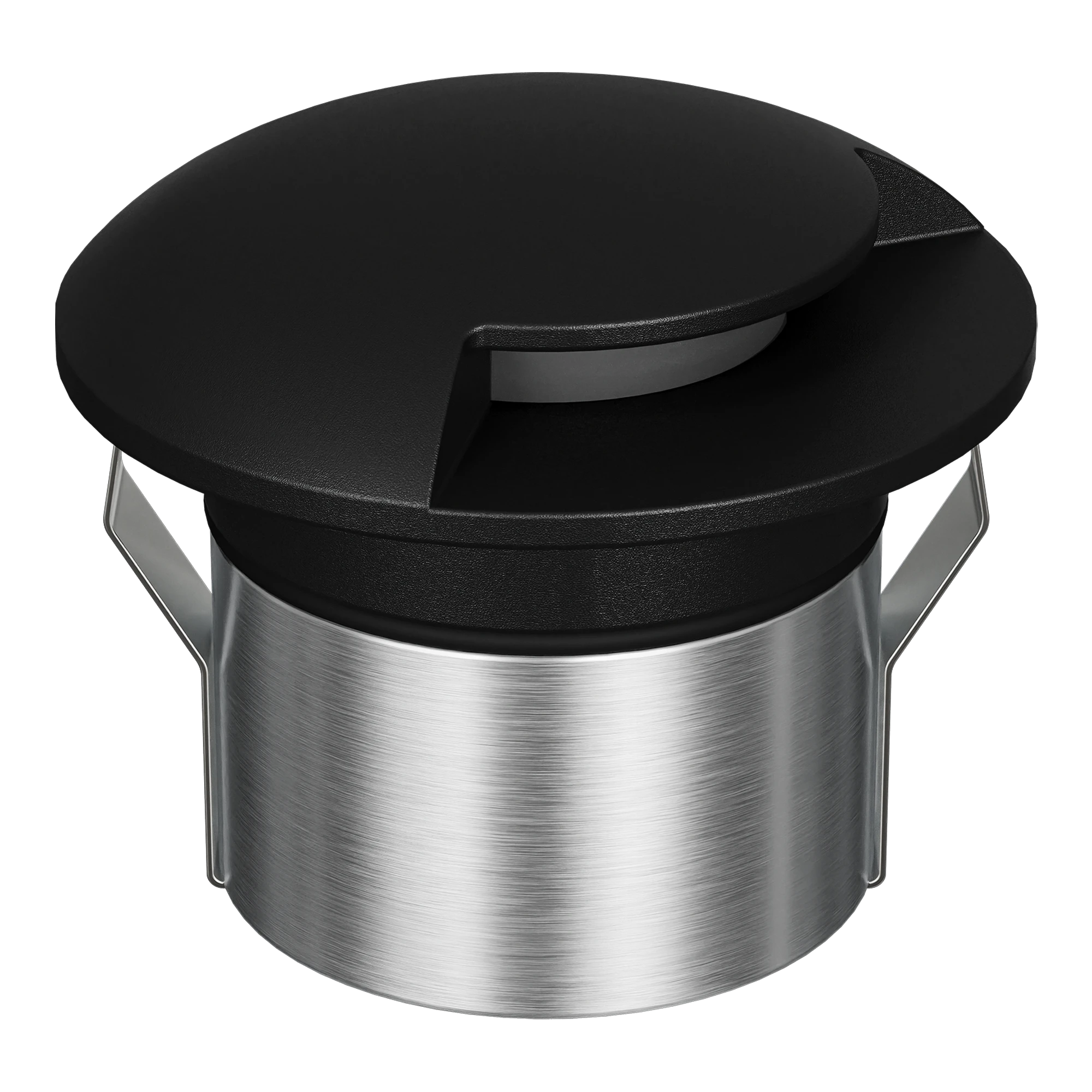

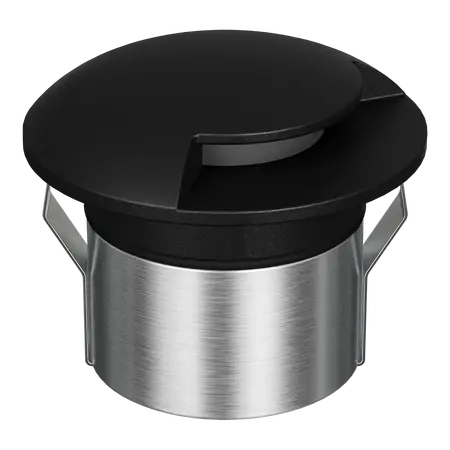

Emit Deck Light LED 85mm 6W RGBW 12/24V 1-Way Black Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 1-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-RGBW-1WAY, RGBW Inground Light, LED Inground Uplight, Recessed Deck Light
Technical Specifications
- Wattage: 6W
- Input Voltage: 24V DC constant voltage
- LED Type: CREE
- Light Colour: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Dimming: No
- Load Rating: 1500kg drive-over
- Cutout: 65mm without cannister; 82mm with cannister
- Material: Stainless steel body with black fascia
- Control: Requires RGBW colour controller
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Variant: EMIT-85-RGBW-1WAY, variant 10218
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- RGBW colour-changing light for architectural and feature lighting
- Black 1-way fascia directs light through a single opening
- Compact 85mm round form factor for deck, pathway, stair and inground installation
- 36° beam angle supplied as standard
- IP67 protection for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- Optional beam lenses, honeycomb and diffuser accessories available
- Designed for use with a separate 24V DC LED driver and RGBW controller
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a 24V DC constant-voltage LED driver and compatible RGBW colour controller, with wiring completed in accordance with the manufacturer's installation instructions and AS/NZS 3000. Do not connect directly to mains voltage.
Applications
- Residential and commercial deck lighting
- Inground architectural and feature lighting
- Pathway and landscape lighting
- Stair and step lighting
- Drive-over lighting in suitable prepared installations
Standards & Compliance
- AS/NZS 3000:2018 is relevant to the electrical installation and wiring of the 24V DC lighting system.
- AS/NZS 60598.1 is the general luminaire safety standard relevant to this type of lighting equipment.
- AS/NZS 60598.2.23:2021 is the relevant Australian/New Zealand standard for extra-low-voltage lighting systems; specific product certification was not stated in the available documentation.
Environmental Benefits
- 6W LED output provides energy-efficient feature lighting compared with higher-wattage conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- Stainless steel construction is durable and recyclable at end of service life
- IP67 sealing helps protect the fitting from moisture ingress and extend service life
Warranty Information
Domus Lighting's current warranty policy lists exterior LED deck lights at 3 years replacement warranty for residential applications and 12 months replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
