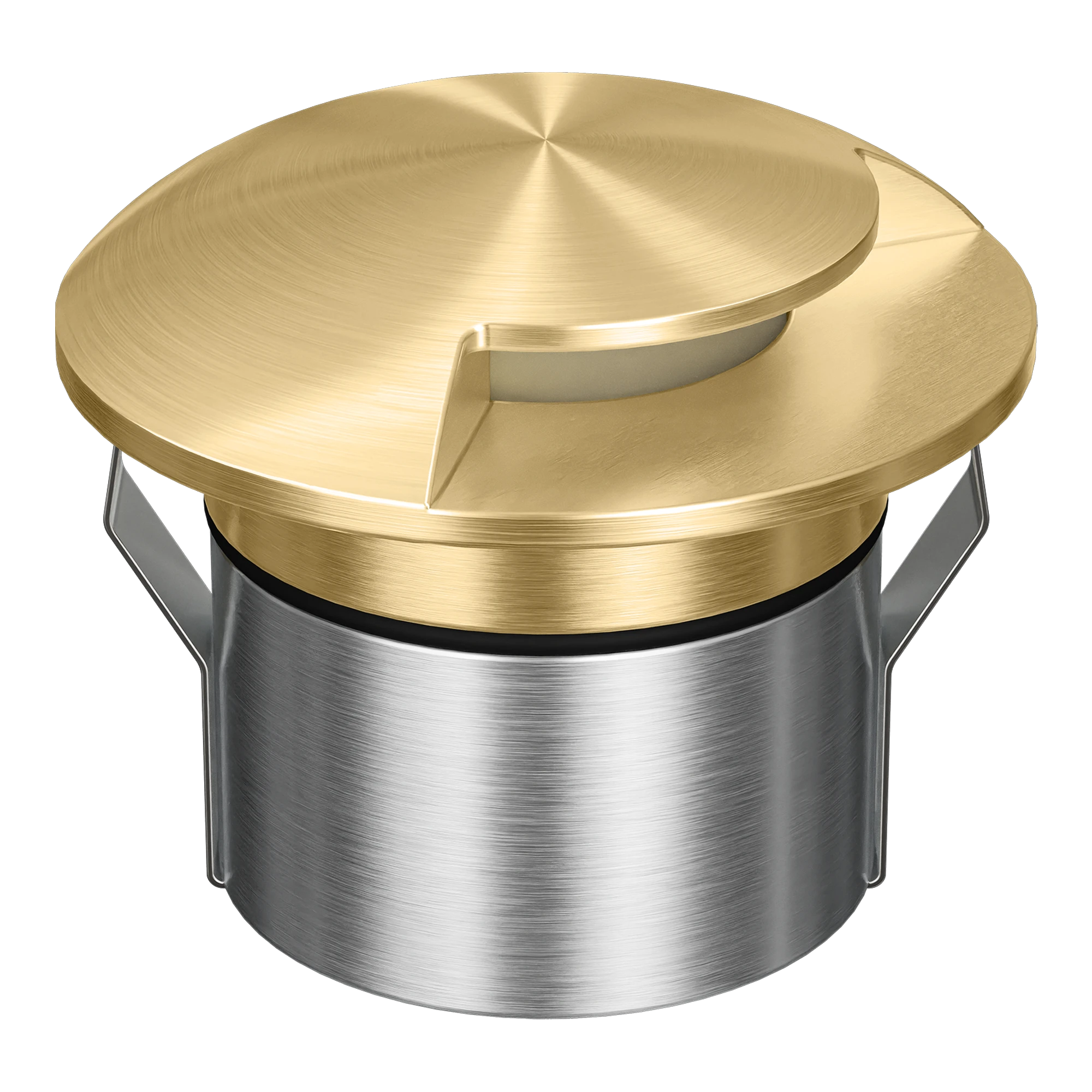

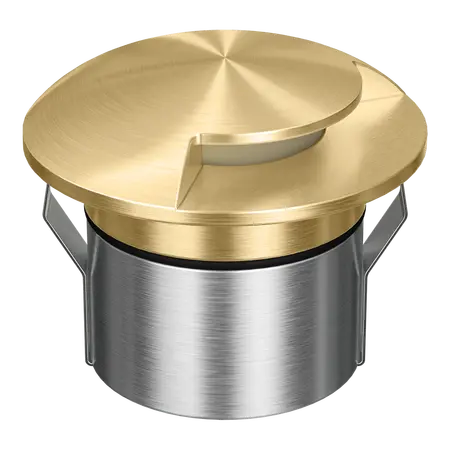

Emit Deck Light LED 85mm 6W RGBW 12/24V 1-Way Brass Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 1-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-RGBW-BRS, Emit 85 Inground Light, RGBW Inground Deck Light, 85mm LED Deck Light
Technical Specifications
- Variant: RGBW 1-way fascia
- Finish: Brass
- Power: 6W
- Input Voltage: 24V DC constant voltage
- LED Type: CREE
- Colour Output: Red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- LED Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Cutout: 65mm without cannister; 82mm with cannister
- Operating Temperature: -20°C to 40°C
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Wiring: Connect in parallel
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.55 kg
Key Features
- RGBW colour-changing output for architectural and landscape feature lighting
- 1-way fascia directs light along a single axis
- Brass finish for exterior deck, pathway and inground applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating and 1,500kg drive-over load rating
- 36° standard beam angle with optional beam lenses available
- Compact 85mm form factor with concealed recessed installation
- Class III extra-low-voltage luminaire
- Requires a separate 24V DC LED driver and RGBW controller
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a suitable 24V DC constant-voltage LED driver and RGBW colour controller, connect the fittings in parallel, and install in accordance with the manufacturer's instructions and applicable Australian wiring requirements.
Applications
- Outdoor deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting where the specified load rating is suitable
- Residential and commercial exterior lighting installations
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.13: Particular requirements for ground-recessed luminaires
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and installation waste
- Brass components can be recovered and recycled at end of service life
- 24V DC operation supports extra-low-voltage outdoor lighting systems
- Durable IP67 and IK10 construction may extend service life in demanding outdoor applications
Warranty Information
The current Domus product page states a 5-year replacement warranty. Domus warranty terms require installation by a licensed electrician and compliance with installation instructions; the general warranty statement may specify different coverage by application, so confirm the applicable residential or commercial warranty at purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
