Emit Deck Light LED 85mm 6W RGBW 12/24V 2-Way Brass Domus

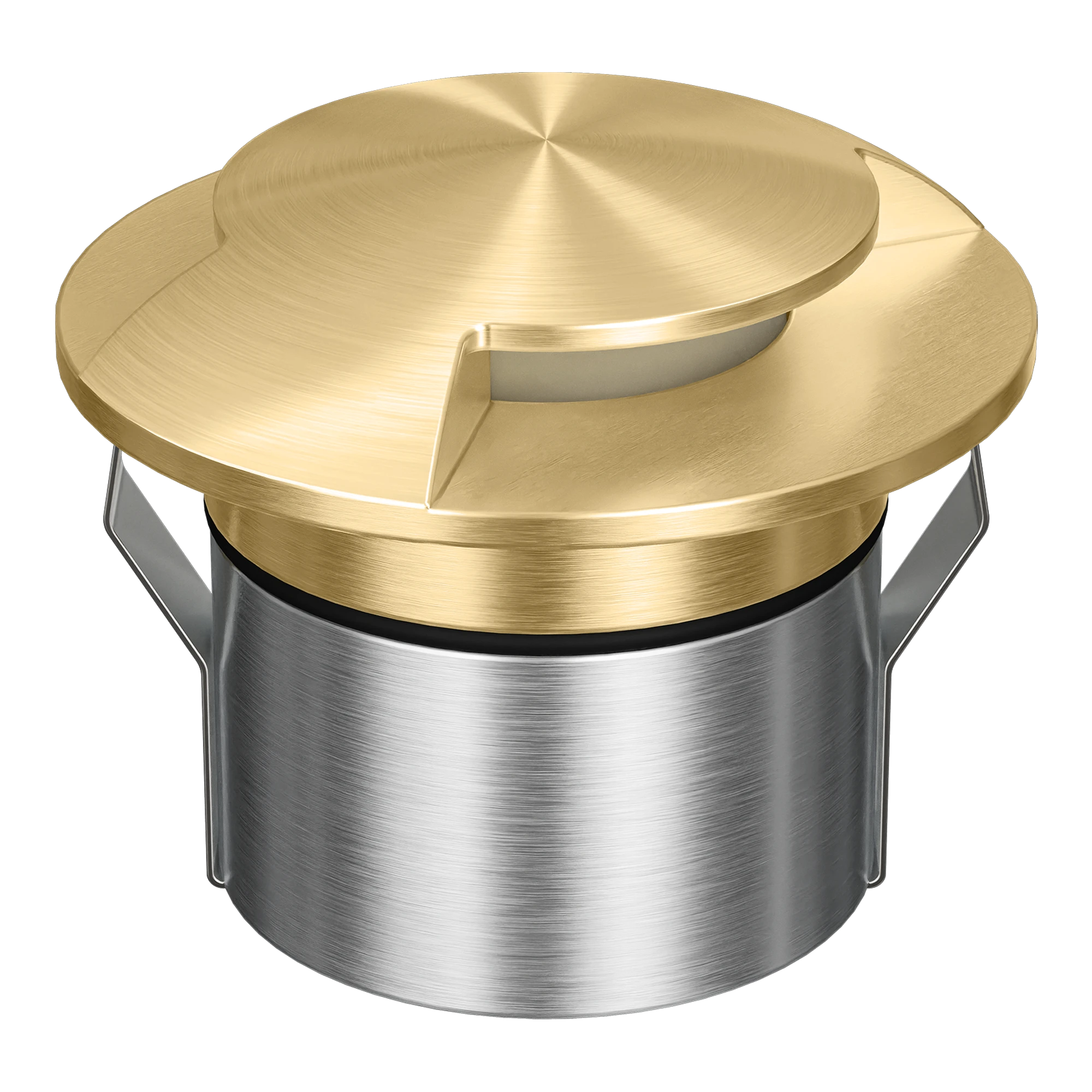

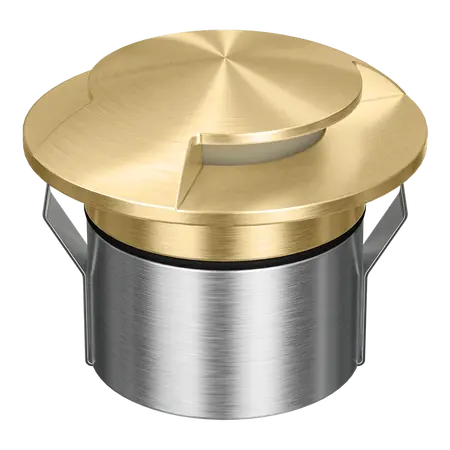

Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-RGBW-2WAY-BRS, RGBW deck light, inground LED light, brass landscape light, 2-way LED deck light
Technical Specifications
- Wattage: 6W
- Input Voltage: 24V DC constant voltage
- Light Colour: RGBW colour changing
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- LED Type: CREE
- Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Cutout: 65mm without cannister or 82mm with cannister
- Dimming: No
- Operating Temperature: -20°C to 40°C
- Control Requirement: RGBW colour controller
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Finish: Brass
- Fascia: 2-way
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.75 kg
Key Features
- RGBW colour-changing output for architectural and feature lighting
- 2-way fascia directs light in two opposing directions
- IP67-rated construction for suitable outdoor and inground applications
- IK10 impact rating and 1,500kg drive-over load rating
- Compact 85mm diameter format with 65mm or 82mm cutout options
- Compatible with optional narrow, medium, honeycomb and frosted diffuser accessories
- CREE LED source with an expected 50,000-hour lifespan
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a suitable 24V DC constant-voltage LED driver and compatible RGBW colour controller. Install and connect in accordance with the manufacturer's instructions and applicable AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting where the installation substrate and drainage are suitable
- Outdoor entertainment areas and building surrounds
Standards & Compliance
- Applicable luminaire safety requirements: AS/NZS 60598.1
- Applicable particular requirements for ground-recessed luminaires: AS/NZS 60598.2.13
- Electrical installation and low-voltage wiring should follow AS/NZS 3000
Environmental Benefits
- 6W LED technology provides lower operating energy use than higher-wattage conventional lighting
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Brass metal components can be recovered and recycled at end of service life
- IP67 and IK10 construction supports extended service life in suitable outdoor installations
Warranty Information
Domus Lighting warranty: 3-year replacement warranty for residential exterior deck and inground lights, and 12-month replacement warranty for commercial applications. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
