Trade Discount 25%

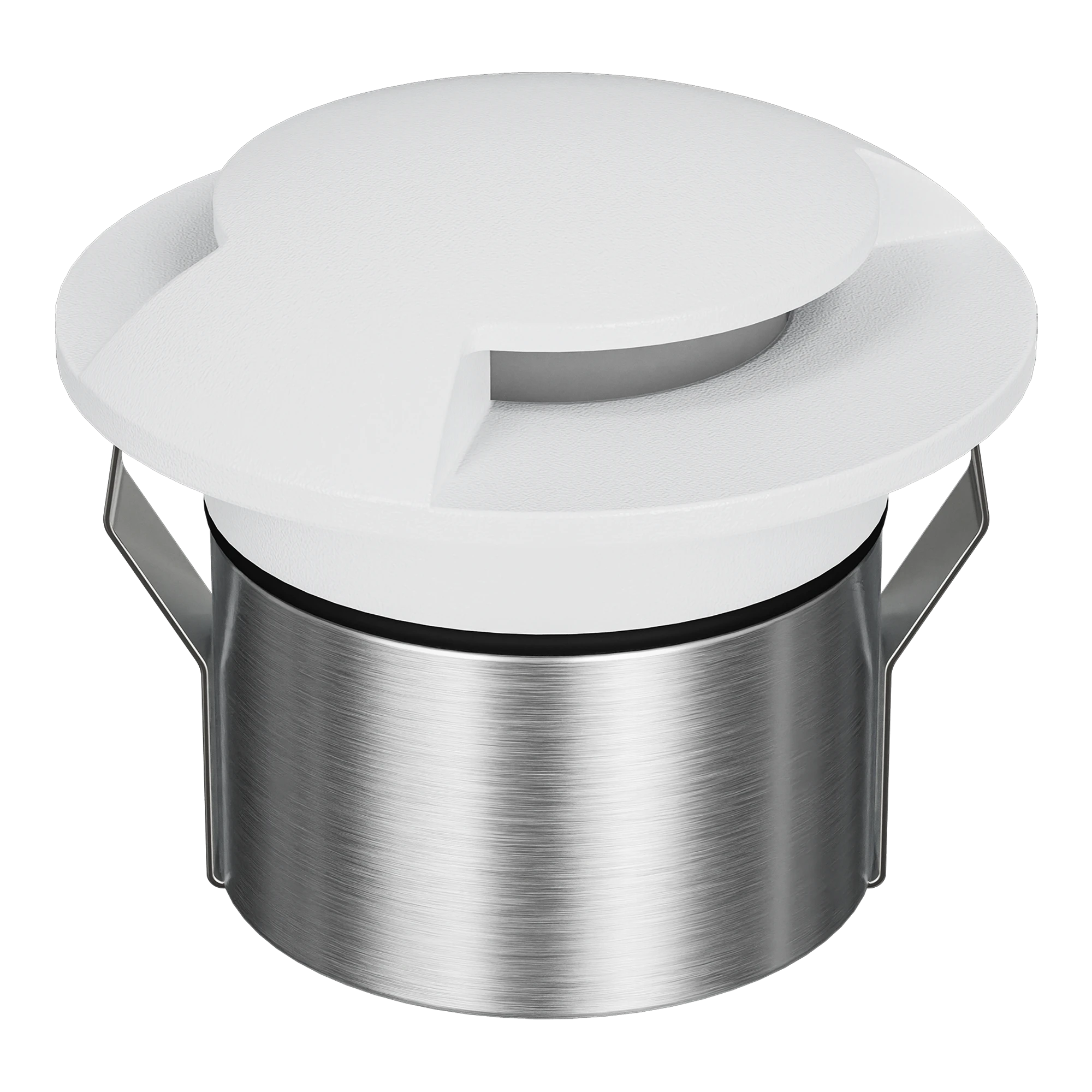

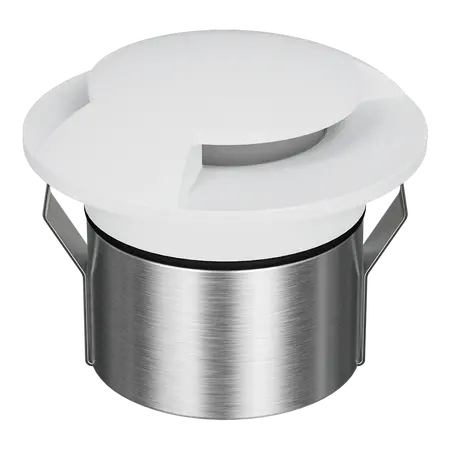

Emit Deck Light LED 85mm 6W RGBW 12/24V 2-Way White Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-RGBW-WHT, RGBW Inground Light, RGBW Deck Light, 2-Way Inground Uplight
Technical Specifications
- Variant: RGBW 2-Way White
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cutout: 65 mm without canister; 82 mm with canister
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.75 kg
Key Features
- Two-way fascia for directional feature lighting
- RGBW colour-changing output for architectural and landscape lighting
- White metal fascia finish
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500 kg drive-over load rating
- Optional beam-angle lenses, honeycomb and diffuser accessories
- Wire in parallel to a compatible 24V constant-voltage driver
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW colour controller, with all outdoor connections protected against moisture.
Applications
- Deck lighting
- Inground architectural lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Feature walls, columns and hardscape illumination
- Residential and light-commercial outdoor lighting
Standards & Compliance
- AS/NZS 60598.1: General requirements for luminaires
- AS/NZS 60598.2.23:2021: Particular requirements for extra-low-voltage lighting systems
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and lighting waste
- Metal housing and fascia components can be recycled at end of service life
- Low-voltage 24V DC operation supports efficient, controlled outdoor lighting systems
Warranty Information
Domus lists a 5-year replacement warranty for the EMIT-85 product range. Domus warranty eligibility requires licensed-electrician installation and compliance with installation instructions; the current general warranty table lists exterior LED deck and inground lights as 3 years residential and 12 months commercial, so confirm the applicable term for this variant at purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
