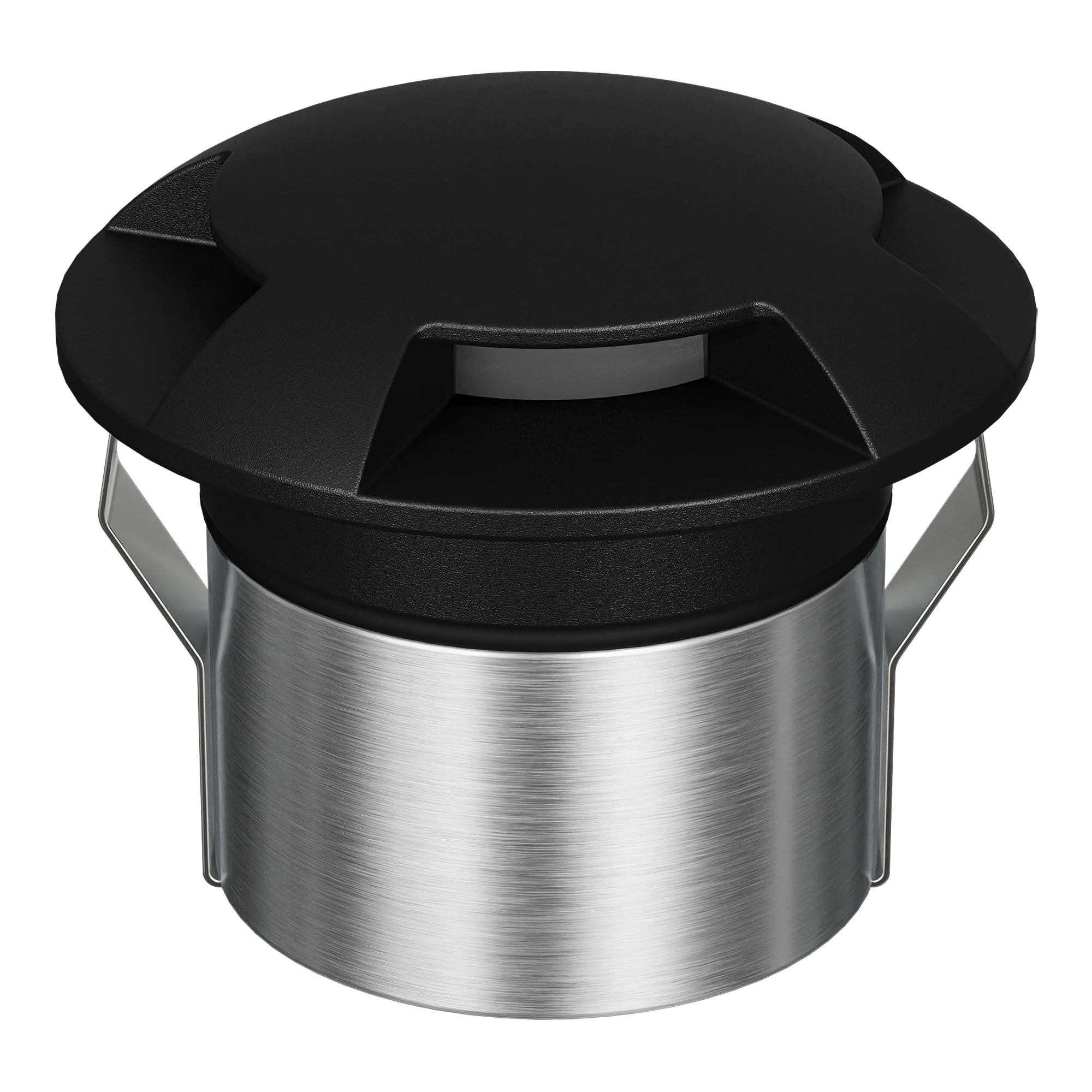

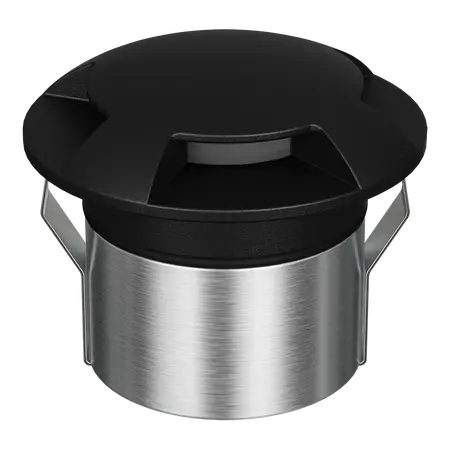

Emit Deck Light LED 85mm 6W RGBW 12/24V 3-Way Black Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-RGBW-BLK, Domus EMIT 85 RGBW Deck Light, RGBW Inground Light, Recessed Deck Light
Technical Specifications
- Variant: RGBW 3-Way
- Item Number: 10220
- Power: 6W
- Input Voltage: 24V DC constant voltage
- LED Type: CREE
- Colour Output: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Dimming: No
- Ingress Protection: IP67
- Impact Rating: IK10
- Lifespan: 50,000 hours
- Load Rating: 1500kg drive-over
- Operating Temperature: -20°C to 40°C
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Control Requirement: RGBW colour controller
- Material: Stainless steel body with black fascia
- Installation Options: With or without canister
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- Three-way fascia for directional feature lighting
- RGBW colour-changing output for landscape and architectural applications
- Compact 85mm diameter fascia
- IP67 protection for suitable outdoor and inground installations
- IK10 impact rating and 1500kg drive-over rating
- 36° beam angle supplied as standard
- Optional 19° and 60° beam lenses available
- Requires a separate 24V DC constant-voltage LED driver
- Requires a compatible RGBW colour controller
- Suitable for pathways, stairs, decks, gardens and architectural feature lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a 24V DC constant-voltage LED driver and compatible RGBW controller, following the manufacturer's installation instructions and applicable wiring requirements. Provide a 65mm cut-out without the canister or an 82mm cut-out with the canister, with approximately 110mm body depth required for the canister installation.
Applications
- Residential deck and pathway lighting
- Landscape and garden feature lighting
- Inground architectural accent lighting
- Stair and step lighting
- Drive-over outdoor lighting installations where the specified load rating is suitable
- Commercial outdoor feature lighting
Standards & Compliance
- AS/NZS 60598.1:2017 - general requirements and tests for luminaires
- AS/NZS 60598.2.13:2013 - relevant requirements for ground-recessed luminaires; confirm the manufacturer's current declaration of conformity for the specific installation
Environmental Benefits
- 6W integrated LED source can reduce energy consumption compared with higher-wattage conventional lighting
- Rated LED lifespan of 50,000 hours can reduce replacement frequency and material waste
- Long-life stainless steel construction supports product durability in suitable outdoor environments
- LED technology avoids mercury-containing fluorescent lamp sources
Warranty Information
The current Domus product page states a 5-year replacement warranty for the EMIT-85 range. Domus's general warranty statement separately lists exterior deck and inground lights as 3-year replacement warranty for residential applications and 12 months for commercial applications, so the applicable warranty should be confirmed against the purchase date and product-specific terms. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
