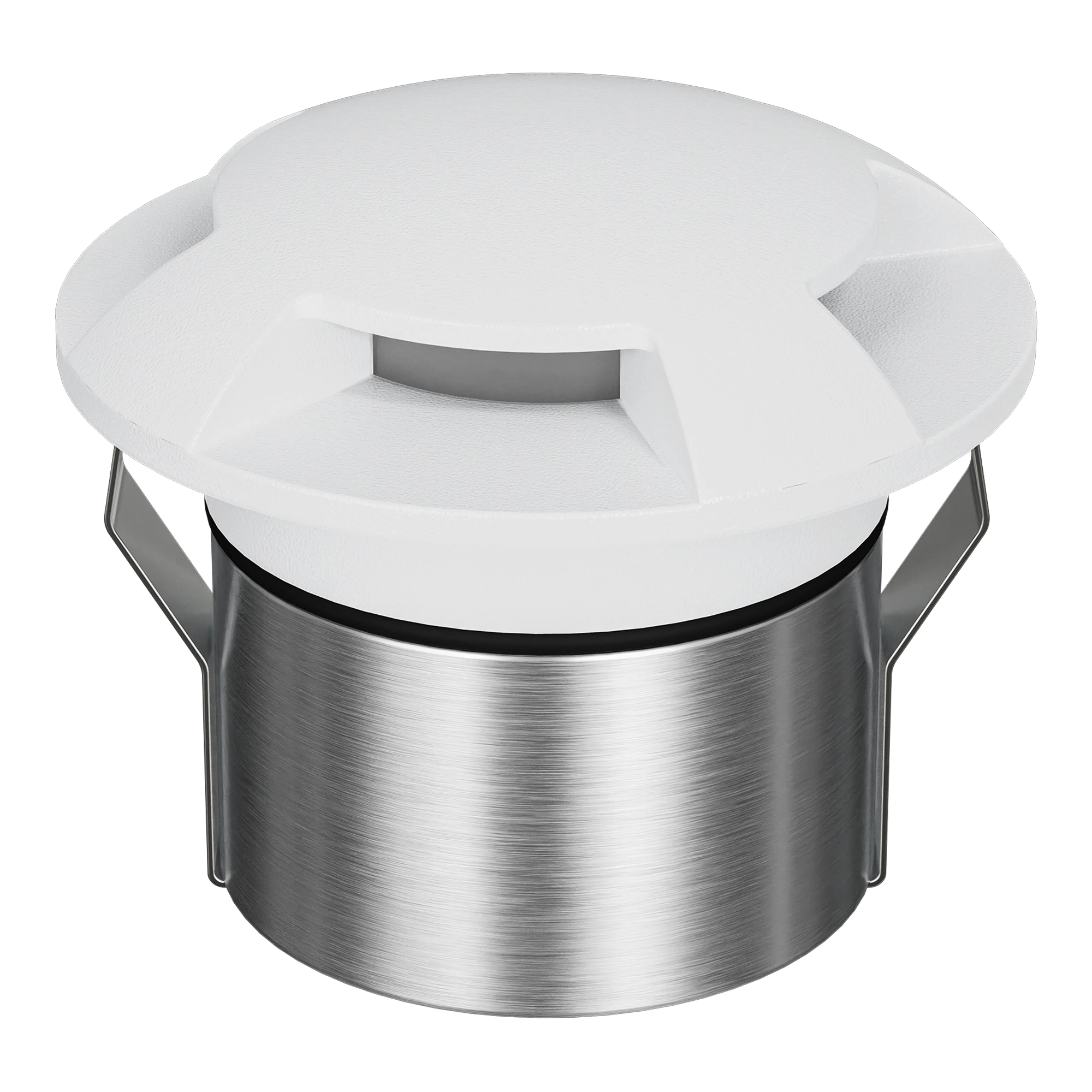

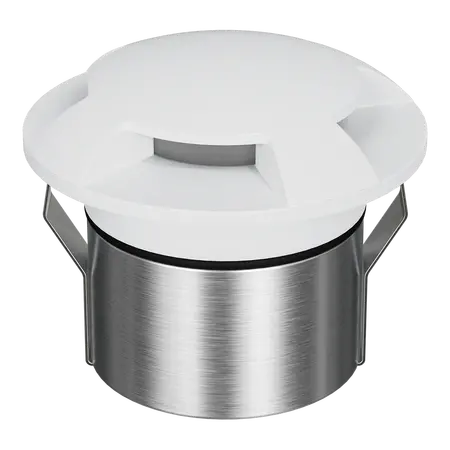

Emit Deck Light LED 85mm 6W RGBW 12/24V 4-Way White Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 4-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-RGBW-WHT, Emit 85 RGBW Inground Light, 4-Way RGBW Deck Light, 85mm LED Inground Light
Technical Specifications
- Variant: RGBW
- Fascia Style: 4-way
- Finish: White
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Output: Red, green, blue and white
- CRI: ≥90
- LED Type: CREE
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Classification: Class III
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Cutout: Ø65mm without cannister; Ø82mm with cannister
- Accessories Required: 24V constant-voltage LED driver and RGBW colour controller
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.7 kg
Key Features
- Four-way fascia for directional feature lighting
- RGBW colour-changing LED output
- Compact 85mm inground and deck light design
- IP67 protection for suitable outdoor applications
- IK10 impact rating and drive-over suitability when correctly installed
- 36° standard beam angle with optional lens accessories
- High colour rendering with CRI of at least 90
- Compatible with optional honeycomb, linear and opal diffuser accessories
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 24V DC constant-voltage LED driver and RGBW colour controller, with wiring installed in accordance with applicable Australian electrical requirements and the manufacturer's instructions.
Applications
- Residential deck and landscape lighting
- Pathway and stair feature lighting
- Architectural accent lighting
- Garden and outdoor feature illumination
- Drive-over inground lighting where the installation conditions are suitable
Standards & Compliance
- AS/NZS 60598.1:2017 — applicable general safety and testing requirements for luminaires; product-specific certification or declaration should be confirmed with Domus Lighting
- AS/NZS 3000 — relevant to the electrical installation of the associated driver, controller and low-voltage wiring
Environmental Benefits
- LED technology provides lower energy consumption than conventional halogen feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- 24V DC Class III operation supports safer low-voltage outdoor lighting system design
- Long service life helps reduce maintenance visits and material consumption
Warranty Information
Domus lists the EMIT-85 series with a 5-year replacement warranty on the product page. Domus's current warranty statement separately lists exterior deck and inground lights as 3-year replacement for residential applications and 12-month replacement for commercial applications; confirm the applicable warranty at purchase. Warranty eligibility requires licensed electrician installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
