Trade Discount 25%

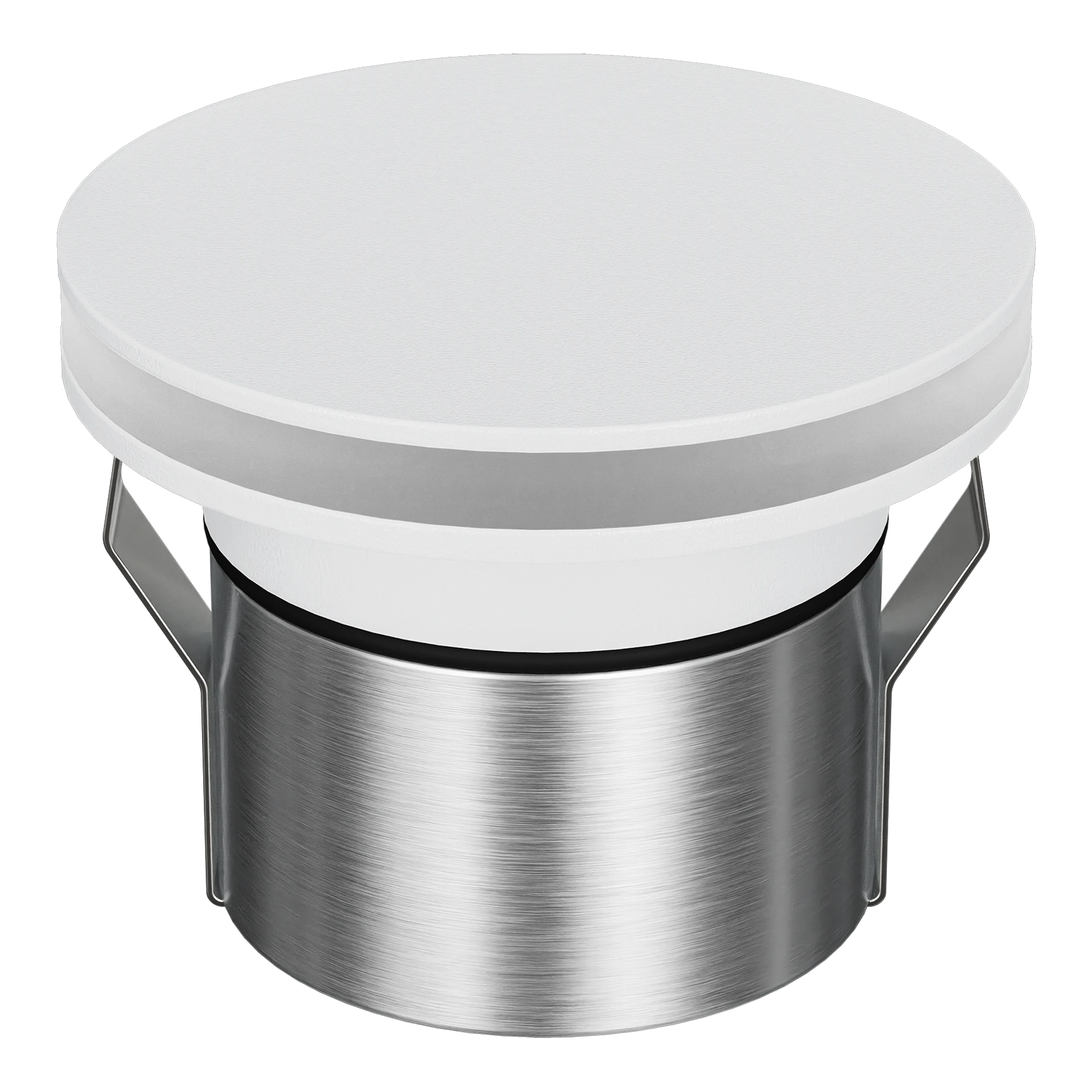

Emit Deck Light LED 85mm 6W RGBW 12/24V Halo White Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, halo fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85 RGBW Halo Light, 85mm RGBW LED Deck Light, RGBW Inground Light, Recessed Landscape Light
Technical Specifications
- Light Source: Integrated CREE LED
- Wattage: 6W
- Input Voltage: 24V DC constant voltage
- Colour Output: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Classification: Class III
- Dimming: No
- Lifespan: 50,000 hours
- Cutout Diameter: 65mm without cannister; 82mm with cannister
- Load Rating: Up to 1,500kg drive-over
- Operating Temperature: -20°C to 40°C
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Finish: White halo fascia
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- RGBW colour-changing output for architectural and landscape lighting
- Halo fascia creates a controlled ring-light effect
- Suitable for recessed inground, deck, pathway and stair lighting
- IP67 protection for outdoor and below-ground applications
- IK10 impact resistance
- 1500kg drive-over rating when correctly installed
- 36° beam angle supplied as standard
- Optional 19° and 60° lenses for alternative beam distribution
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Connect only to a suitable 24V DC constant-voltage LED driver and compatible RGBW controller. Install wiring, drainage, cannister and waterproof cable joints in accordance with the manufacturer's instructions and applicable Australian electrical requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Architectural accent lighting
- Inground uplighting and outdoor wayfinding
- Drive-over lighting areas where the installation substrate and cannister are suitable
Standards & Compliance
- AS/NZS 60598.1 – likely applicable general safety requirements for luminaires
- AS/NZS 60598.2.13 – likely applicable requirements for ground-recessed luminaires
Environmental Benefits
- 6W LED output can reduce energy consumption compared with equivalent halogen landscape lighting
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- IP67 and IK10 construction supports longer service life in demanding outdoor environments
- LED technology avoids mercury-containing fluorescent lamp components
Warranty Information
5-year replacement warranty stated on the current Domus Lighting product page, subject to Domus warranty terms, proof of purchase, correct installation and licensed-electrician installation requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
