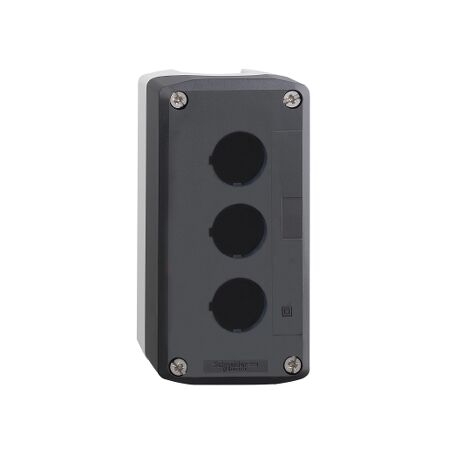

Empty Control Station 3 Cut-Outs | IP66 Rated | Dark Grey by Clipsal
Empty control station with 3 cut-outs and IP66 rating—ideal for industrial machinery control. Built for durability, with a dark grey lid and light grey base, compatible with XB5 Ø 22 mm units.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Polycarbonate
- Cable entry: 2 knock-outs for cable entry, clamping capacity: 14-14 mm²
- IP Rating: IP66, IP67, IP69, IP69K
- IK Rating: IK03
- Operating temperature: -40...70 °C
- Overvoltage category: Class II conforming to IEC 60536
- NEMA degree of protection: NEMA 13, NEMA 4X
- Dimensions (H x L x W): 75mm x 70mm x 137mm
- Weight: 0.238 kg
Key Features
- IP66 rated for protection against dust and water.
- Compatible with XB5 Ø 22 mm control and signaling units.
- Designed for customer assembly with 3 cut-outs.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and functionality.
Applications
- Industrial: Control and signaling units for machinery and equipment.
Standards & Compliance
- Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XALD Empty Control Station is available now for immediate purchase. Ideal for industrial applications requiring robust control solutions.
