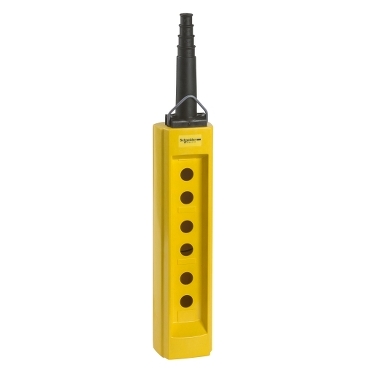

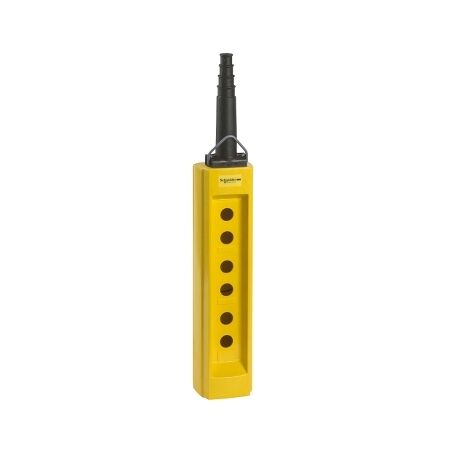

Empty Pendant Control Station | IP65 Rated | 6 Device Apertures | Ergonomic Design | @Pack of 1 | by Clipsal
The Empty Pendant Control Station is designed for industrial control applications, featuring an IP65 rating for dust and water resistance. With a robust impact-resistant thermoplastic construction and the capacity to accommodate up to 6 control devices, it’s perfect for cranes, hoists, and factory automation. Its ergonomic design ensures comfortable handheld operation, making it an ideal choice for workshops and warehouses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Empty Pendant Control Station | IP65 Rated | 6 Device Apertures | Ergonomic Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXACB06
Alternatively Known As: Pendant control enclosure, industrial pendant station, empty pendant box, control station housing, SCHXACB06
Technical Specifications
- Material: Impact-resistant thermoplastic
- Number of device apertures: 6
- Ingress protection: IP65
- Operating temperature: -25°C to +70°C
- Cable entry: Multiple knockouts for flexible wiring
- Color: Yellow
- Dimensions (H x L x W): 400mm x 68mm x 68mm
- Weight: 0.45 kg
Key Features
- Robust and durable enclosure for pendant control applications
- Accommodates up to 6 control devices (push buttons, switches, etc.)
- Ergonomic design for comfortable handheld operation
- IP65 rated for dust and water resistance
- Impact-resistant thermoplastic construction
- Easy cable entry and wiring access
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct wiring of control devices.
Applications
- Industrial machinery control
- Cranes and hoists
- Material handling equipment
- Factory automation
- Workshops and warehouses
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long-lasting, reusable enclosure reduces replacement frequency and waste.
- IP65 protection minimizes ingress of dust and water, extending product life.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHXACB06 Empty Pendant Control Station is available for immediate purchase. Ideal for industrial control applications requiring a robust and ergonomic enclosure.
