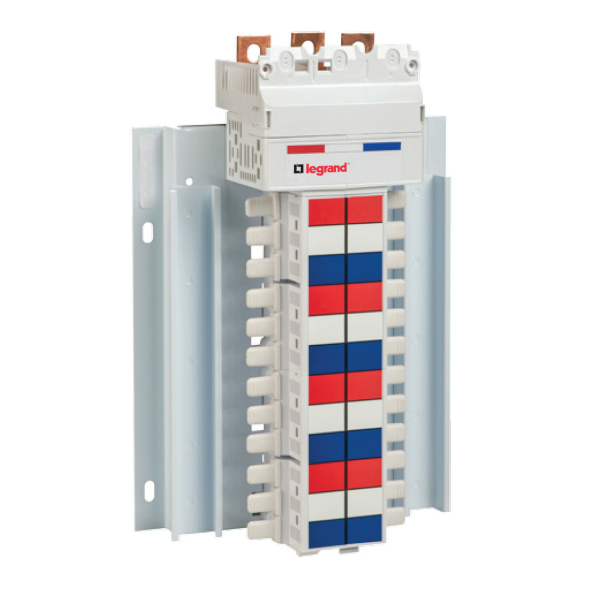

Encapsulated Chassis 3P 25KA/0.1S 250A 24 Pole Top Feed | Enhanced Protection | AS/NZS Compliant | by Legrand
The Encapsulated Chassis 3P 25KA/0.1S 250A 24 Pole Top Feed is designed for reliable electrical distribution in commercial and industrial settings. With a short circuit rating of 25kA for 0.1 seconds and encapsulated busbars for enhanced protection, this chassis ensures safety and compliance with AS/NZS 61439.2 standards. Ideal for custom distribution board assemblies, it supports efficient installation and maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Encapsulated Chassis 3P 25KA/0.1S 250A 24 Pole Top Feed | Enhanced Protection | AS/NZS Compliant | by Legrand
Brand: Legrand
SKU: ENC250-24-TF
Alternatively Known As: Encapsulated Busbar Chassis, Electrical Distribution Chassis, Legrand 250A Encapsulated Chassis
Technical Specifications
- Rated Current: 250A
- Short Circuit Rating: 25kA for 0.1 seconds
- Number of Poles: 24
- Feed Type: Top Feed
- Pitch Options: 18mm or 27mm
- Compliance: Tested against AS/NZS 61439.2
- Type Tested with XL3 Enclosure Range
- Dimensions (H x L x W): 300mm x 150mm x 600mm
- Weight: 15 kg
Key Features
- Encapsulated busbars for enhanced protection during installation and maintenance
- Available in 250A and 400A ratings
- Three feed options: Top fed, Bottom fed, or Dual fed
- 18mm or 27mm pitch options
- Type tested with XL3 range of enclosures
- Made in Australia
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with AS/NZS 61439.2 standards to ensure safety and compliance.
Applications
- Electrical distribution boards and enclosures
- Industrial and commercial electrical installations
- Custom distribution board assemblies
Standards & Compliance
- Complies with AS/NZS 61439.2 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Encapsulation protects components, reducing maintenance and replacement waste
- Australian made product supporting local manufacturing and reducing transport emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
The Legrand Encapsulated Chassis 3P 25KA/0.1S 250A 24 Pole Top Feed is available for immediate purchase, ideal for electrical distribution board applications in commercial and industrial settings.
