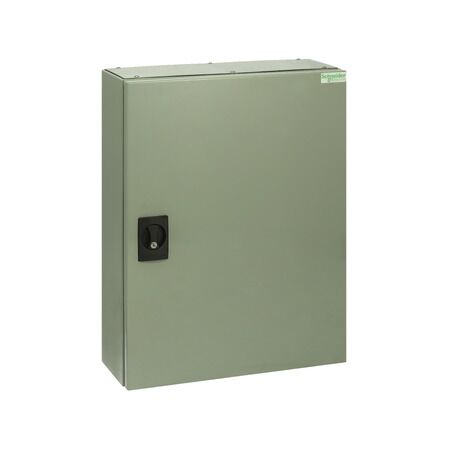

Encapsulated Distribution Board 24 Poles 160A IP42 Rated Clipsal
Clipsal Encapsulated Distribution Board Poles Main features 415V, 160A and grey finish. 24 poles with a 160A main switch for distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 160 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Poles description: 3P + N
- Dimensions (H x L x W): 750mm x 235mm x 580mm
- Weight: 31 kg
Key Features
- 24 poles with a 160A main switch for robust distribution.
- IP42 rated for protection against solid objects greater than 1mm and limited water ingress.
- Includes removable gland plates and a circuit schedule card.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, warehouses, and large facilities
Standards & Compliance
- Pro-active compliance with EU RoHS directive.
Environmental Benefits
- Free of Substances of Very High Concern above the threshold.
- Toxic heavy metal free and mercury free.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 Encapsulated Distribution Board is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
