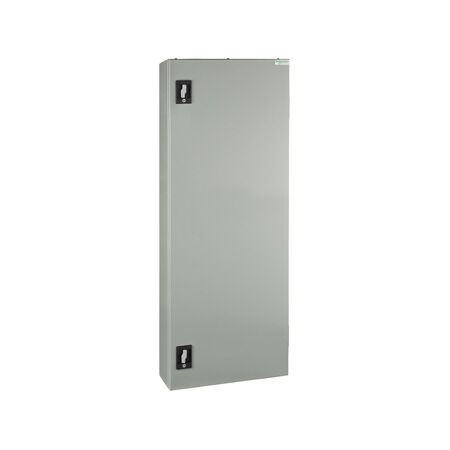

Encapsulated Distribution Board 84 Poles 250A IP42 Rated Clipsal
Clipsal Encapsulated Distribution Board Poles Main features 415V, 250A and grey finish. Ideal for large buildings, industrial facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Enclosure type: Standard
- Door type: External plain
- Network frequency: 50 Hz
- Enclosure mounting: Surface
- Dimensions (H x L x W): 1500mm x 235mm x 580mm
- Weight: 46 kg
Key Features
- 84 poles with 18mm spacing for flexible circuit configuration.
- IP42 rated for protection against solid objects greater than 1mm and limited water ingress.
- 250A main switch for high capacity electrical distribution.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Large buildings, industrial facilities
- General: Any application requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 MB Encapsulated Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.
