Enclosed DOL Starter 18A | 110V AC Coil | IP65 Rated | IK07 Impact by Clipsal
Enclosed DOL starter with 18A capacity and 110V AC coil—ideal for industrial motor control. Built for durability, with IP65 dust and water protection and IK07 impact resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

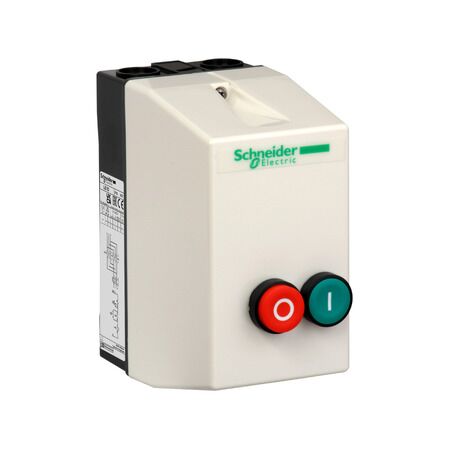

Product Name/Title: TeSys LE, Enclosed DOL Starter, 18 A, 110 V AC coil
Brand: Clipsal
SKU: LE1D18F7
Alternatively Known As: DOL Starter, Direct On Line Starter, Motor Starter
Technical Specifications
- Control type: Push-button start (green) and stop/reset (red).
- Control circuit voltage: 110 V AC 50/60 Hz.
- Motor power: Up to 10 kW at 500 V AC.
- Conventional enclosed thermal current: 17 A.
- Cable entry: 2 ISO20 top, 2 ISO25 top, 2 ISO20 bottom, 2 ISO25 bottom.
- Material: Polycarbonate.
- Dimensions (H x L x W): 201mm x 153.5mm x 101mm
- Weight: 1.015 kg
Key Features
- Enclosed DOL starter with push-button control.
- IP65 rated for protection against dust and water.
- IK07 rated for impact resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control applications in various industrial settings.
Standards & Compliance
- Complies with IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys LE Enclosed DOL Starter is available now for immediate purchase. Ideal for industrial motor control applications.
