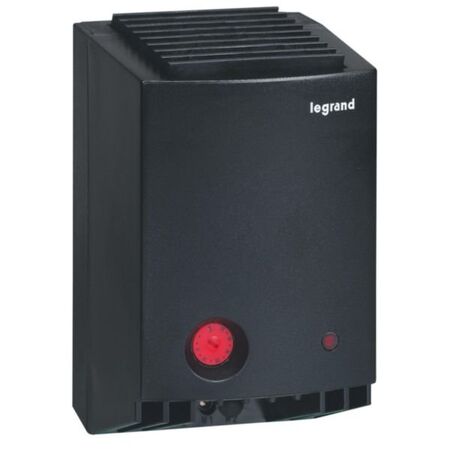

Enclosure Heater 350W IP20 165x128x100mm Legrand
The Legrand Enclosure Heater provides 350W continuous heating for industrial enclosures and cabinets requiring heat regulation. It operates at AC 50/60 Hz, 220-240V and features IP20 protection. Dimensions are 165mm x 128mm x 100mm, with a polycarbonate UL 94 V0 housing and aluminium under plastic UL 94 V0 heat dissipator. Review the installation requirements and applications below before ordering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated power: 350 W
- Operating voltage AC 50/60 Hz: 220-240 V
- Voltage type: AC
- With fan: Yes
- With room temperature controller: Yes
- Continuous heating power at 10 °C: 350 W
- Degree of protection: IP20
- Start-up current: 7.5 A
- Thermostat range: 0 to 60 °C with LED indicator
- Fan flow rate: 35 m³/h
- Material: Polycarbonate UL 94 VO
- Heat dissipator: Aluminium under plastic UL 94 VO
- Dimensions (H x L x W): 165mm x 128mm x 100mm
- Weight: 1.2 kg
Key Features
- Heat regulation for cabinets and enclosures with heating and regulation
- IP20 rated protection
- Class II electrical insulation
- Prevents condensation inside enclosures with PTC auto-regulated and self-limited surface temperature
- Connection on terminals and mounting on rail
- Heat dissipator in aluminium under plastic UL 94 VO
- Built-in temperature limiter
- Material: Polycarbonate UL 94 VO
- Power: 350 W
- Start-up current: 7.5 A
- Thermostat: Without 0 to 60 °C with LED
- Fan flow rate: 35 m³/h
- Includes fan and room temperature controller
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial enclosures and cabinets requiring heat regulation
- Prevention of condensation inside electrical enclosures
- Maintaining optimal temperature in control panels and electrical cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents moisture damage to electrical components, extending equipment lifespan and reducing waste
- Energy-efficient heating with auto-regulated PTC technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Resistance Heater for Enclosure Pulsated Air 230 V 350 W is available for immediate purchase, ideal for industrial and commercial electrical enclosures requiring heat regulation and condensation prevention.
FAQ
Q: What is the power rating of the Legrand Enclosure Heater?
A: The Legrand Enclosure Heater has a rated power of 350W.
Q: What voltage does this enclosure heater operate at?
A: It operates at AC 50/60 Hz, 220-240V.
Another enclosure heater from Legrand provides 150W heating for industrial enclosures and cabinets.
A 150W enclosure heater offers another option for managing heating inside electrical enclosures.
For a lower-power application, a 100W enclosure heater can be used within electrical enclosures.
