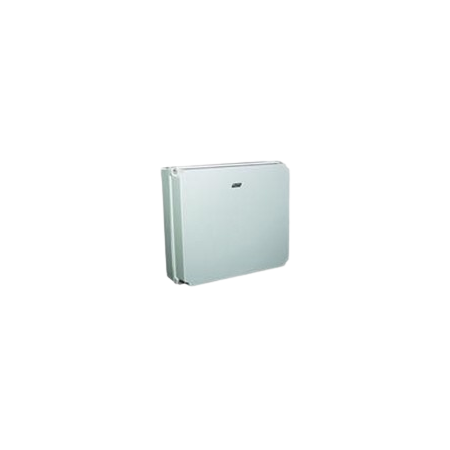

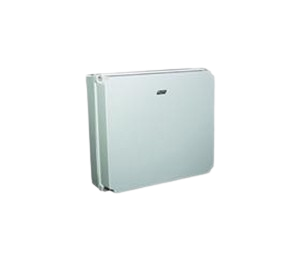

Enclosure IP67 350x300x130mm MajorTech
<p>MajorTech enclosure features IP67 weatherproof rating and 350x300x130mm dimensions. Ideal for outdoor electrical installations.</p>
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi VW353013 Enclosure, IP65 Electrical Enclosure, Outdoor Junction Box, Weatherproof Wall Box
Technical Specifications
- Ingress Protection: IP65
- Material: Flame-retardant, self-extinguishing ABS plastic
- Colour: Grey
- Enclosure Type: Wall-mounted electrical enclosure
- Cable Entry: 4 x 20 mm rear-entry knockouts
- Fasteners: Rust-free ABS plastic screws
- Sealing: Rubber-lined sealed construction
- Barcode: 6008229019920
- Dimensions (H x L x W): 350mm x 300mm x 130mm
- Weight: 1.8 kg
Key Features
- IP65 protection against dust ingress and water jets
- Flame-retardant and self-extinguishing ABS housing
- Rust-free construction suitable for outdoor installations
- Four rear-entry 20 mm knockouts for cable entry
- Rubber-lined seal helps protect enclosed components
- Suitable for control circuits, terminal connections and electrical equipment
Professional Installation Requirements
- Installation involving mains electrical equipment should be performed by a licensed electrician in accordance with AS/NZS 3000 and the equipment manufacturer's instructions. Cable entries must be correctly sealed to maintain the IP65 rating.
Applications
- Outdoor electrical installations
- Control circuit protection
- Terminal and junction connections
- Small switchgear and automation equipment
- Wet-area and weather-exposed electrical installations
Standards & Compliance
- AS/NZS 60670.1:2021 - applicable requirements for boxes and enclosures for electrical accessories
- AS/NZS 60529 - applicable IP classification system for enclosure ingress protection
- AS/NZS 3000:2018 - installation requirements where used within an Australian electrical installation
Environmental Benefits
- Durable ABS construction can extend the service life of enclosed electrical equipment and reduce replacement waste
- The plastic enclosure is suitable for recycling through appropriate plastics recovery facilities at end of life
- Weather protection helps reduce premature failure and disposal of internal electrical components
Warranty Information
Major Tech lists distribution boards and enclosures under a 5-year extended product warranty, subject to registration, proof of purchase and the manufacturer's exclusions. The standard Major Tech product warranty is 6 months.
Available Now
Available through Major Tech and authorised electrical distributors; confirm current stock before ordering.
