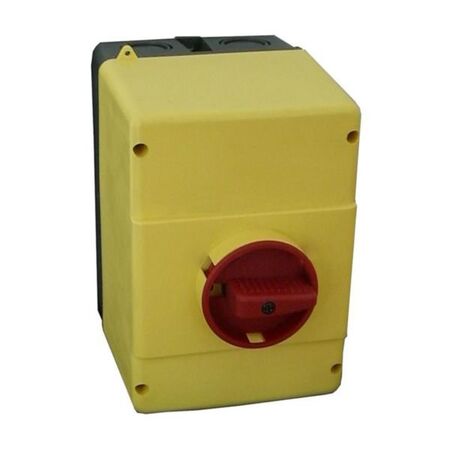

Enclosure Yellow/Red for MPX3 32H/MA | IP65 Protection | Surface Mount Design | 4 Knock-Out Openings | @EA of 1 | by Legrand
The Enclosure Yellow/Red for MPX3 32H/MA is designed for industrial control and signaling applications, featuring IP65 protection and a durable plastic housing. With a surface mounting design and four knock-out openings for easy cable connection, it's perfect for tertiary installations and ensures safety with a sealable OFF position.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Enclosure Yellow/Red for MPX3 32H/MA | IP65 Protection | Surface Mount Design | 4 Knock-Out Openings | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417480
Alternatively Known As: MPX3 32H/MA Enclosure, Yellow Red Enclosure for MPX3, Industrial Control Enclosure
Technical Specifications
- Protection index: IP65
- Housing material: Plastic
- Width: 150 mm
- Height: 220 mm
- Depth: 100 mm
- Degree of protection (IP): IP40
- Degree of protection (NEMA): 2
- Degree of impact strength (IK): IK07
- Surface mounting model
- No transparent cover
- Not suitable for emergency stop
- Dimensions (H x L x W): 220mm x 100mm x 150mm
- Weight: 1.2 kg
Key Features
- Protection index: IP65
- Yellow cover with red rotary handle
- 4 knock-out openings for convenient cable connection
- Possibility of sealing in OFF position
- Surface mounting design
- Degree of protection: IP40
- Degree of impact strength: IK07
- Suitable for use with MPX3 32H/MA only
Professional Installation Requirements
- Installation should be performed by a qualified electrician following the product instructions to ensure compliance with safety standards.
Applications
- Tertiary installations
- Industrial installations
- Control and signalling switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and control gear assemblies
Environmental Benefits
- Durable plastic housing reduces need for frequent replacements
- Sealable OFF position enhances safety and reduces accidental energy waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Enclosure Yellow/Red for MPX3 32H/MA is available for immediate purchase, ideal for tertiary and industrial control and signalling applications.
