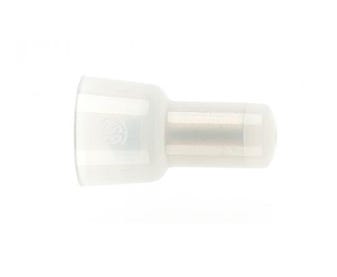

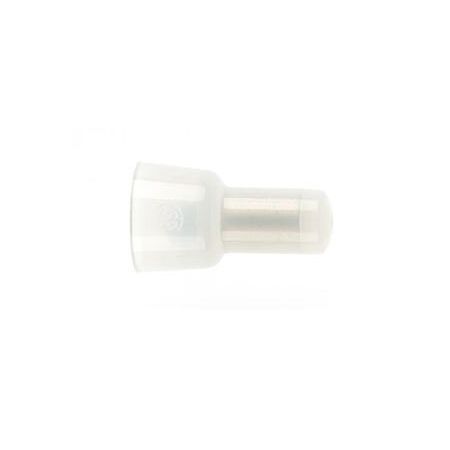

End Connector Insulated 1.0-2.6mm² | Copper Sleeve | Nylon Insulation | 300V Rated by Cabac
End connector with copper sleeve and nylon insulation—ideal for secure wire terminations in residential, commercial, and industrial applications. Built for durability and safety, rated up to 300V and 105°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: End Connector Insulated White 1.0-2.6mm2
Brand: Cabac
SKU: EC1.25
Alternatively Known As: Pre-Insulated End Connector, Closed-End Connector, Insulated Wire Terminal, Electrical Wire Connector
Technical Specifications
- Material: Copper sleeve with nylon insulation
- Maximum Voltage Rating: 300V
- Maximum Temperature Rating: 105°C
- Copper sleeve ensures superior electrical conductivity
- Nylon insulation resists abrasion, chemicals, and high temperatures
- Dimensions (H x L x W): 20mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Copper sleeve for excellent conductivity and corrosion resistance
- Nylon insulation providing robust electrical insulation and mechanical protection
- Rated for maximum voltage of 300V
- Withstands temperatures up to 105°C
- UL486C and CSA C22.2 No.188 certified for safety and quality
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and safe connections.
Applications
- Wire termination in residential electrical installations
- Commercial electrical wiring applications
- Industrial electrical wiring requiring low voltage and high temperature endurance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- High-quality insulation improves electrical efficiency and safety
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac End Connector Insulated White 1.0-2.6mm² is available for immediate purchase. Ideal for secure wire terminations in residential, commercial, and industrial electrical applications.
