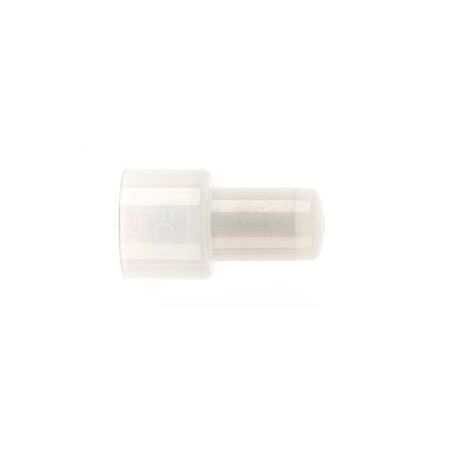

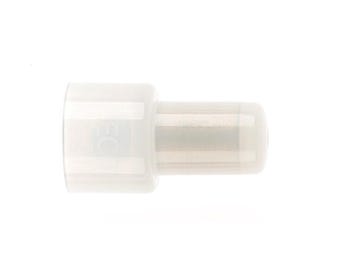

End Connector Insulated 2.6-6.6mm² | 300V Rated | Nylon Insulation | White by Cabac
End connector insulated for 2.6-6.6mm² wires with copper sleeve and nylon insulation—ideal for residential, commercial, and industrial electrical installations. Built for secure and durable wire termination, rated for 300V and 105°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: End Connector Insulated White 2.6-6.6mm2
Brand: Cabac
SKU: EC5.5
Alternatively Known As: Pre-Insulated End Connector, Closed-End Wire Connector, Insulated Wire Terminal, Electrical Wire End Connector
Technical Specifications
- Material: Copper sleeve with nylon insulation
- Maximum Voltage Rating: 300V
- Maximum Temperature Rating: 105°C
- Copper sleeve provides superior electrical conductivity
- Nylon insulation resists abrasion, chemicals, and high temperatures
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Pre-insulated 'Closed-End' connector design for secure and durable wire termination
- Copper sleeve for excellent conductivity and corrosion resistance
- Nylon insulation providing robust electrical insulation and mechanical protection
- Rated for maximum voltage of 300V
- Withstands temperatures up to 105°C
- UL486C and CSA C22.2 No.188 certified for safety and quality
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and safe connections.
Applications
- Residential electrical wire termination
- Commercial electrical installations
- Industrial electrical applications requiring low voltage and high temperature endurance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High-quality copper sleeve ensures efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac End Connector Insulated White 2.6-6.6mm² is available for immediate purchase. Ideal for secure wire termination in residential, commercial, and industrial electrical installations.
