End-of-Arm-Safeguard | Contactless Collision Avoidance | Compatible with Universal Robots e-Series | by SICK
The End-of-Arm-Safeguard enhances safety in collaborative robot applications, featuring contactless collision avoidance technology and a protective field that moves with the robot arm. Designed for Universal Robots e-Series, it reduces crushing hazards and supports efficient human-robot collaboration, making it ideal for industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: End-of-Arm-Safeguard | Contactless Collision Avoidance | Compatible with Universal Robots e-Series | by SICK
Brand: SICK
SKU: 1129419
Alternatively Known As: EOAS Safety System, Robot Gripper Safety Guard, Collaborative Robot Safety Sensor
Technical Specifications

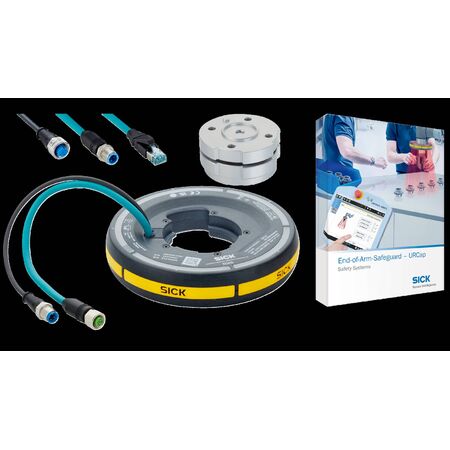

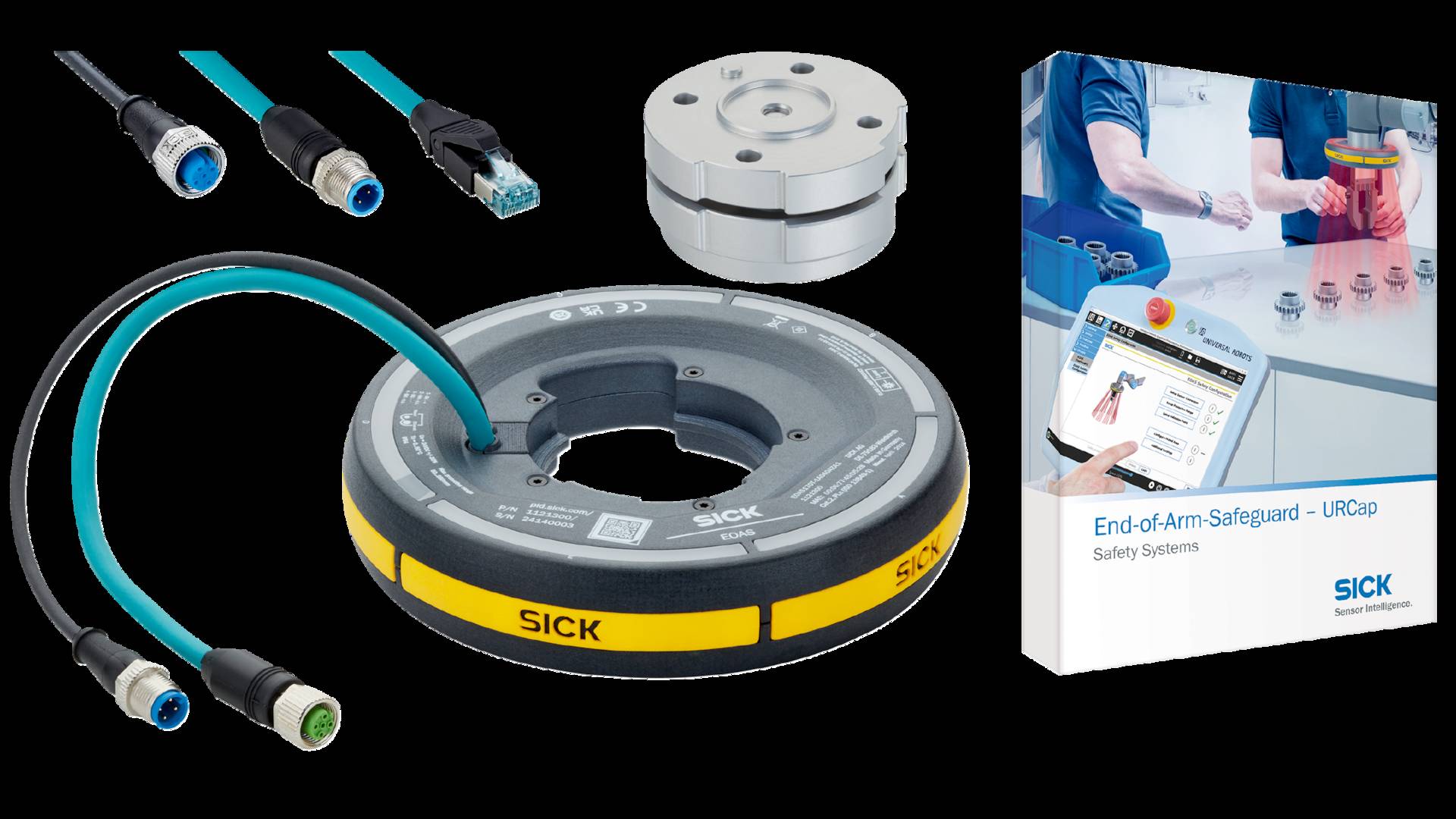

- Includes 1 x EOAS sensor, 1 x EOAS flange
- Cable for voltage supply: 4 m
- Ethernet cable for data connection: 4 m
- Configuration via UR Teach Pendant
- Designed for Universal Robots e-Series
- Contactless protective field technology
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 1.5 kg
Key Features
- Reduces the residual risk of crushing hazards
- Contactless collision avoidance around robot grippers
- Protective field moves with the robot arm
- Muting mode for non-collaborative robot workspaces
- Configuration via the UR Teach Pendant
- Mounting on the robot flange
- Compatible with the e-Series from Universal Robots
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with Universal Robots and safety system integration to ensure proper configuration and compliance.
Applications
- Collaborative robot applications
- Human-robot collaboration environments
- Industrial automation with Universal Robots e-Series
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances safety to reduce downtime and waste from accidents
- Supports efficient human-robot collaboration, optimizing resource use
Warranty Information
Standard manufacturer warranty of 12 months against defects.
Available Now
The SICK End-of-Arm-Safeguard is available now for immediate purchase, ideal for enhancing safety in collaborative robot workspaces.
