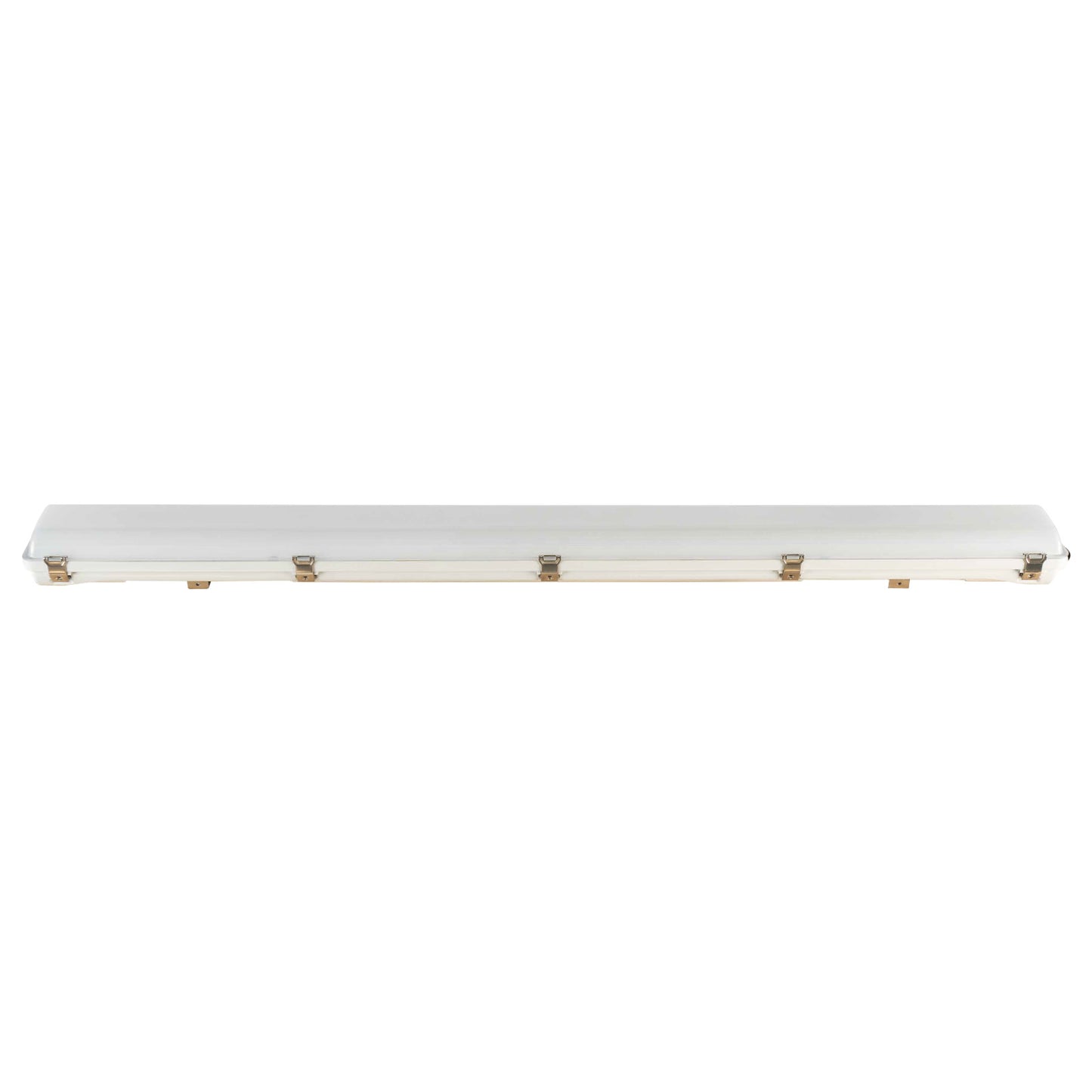

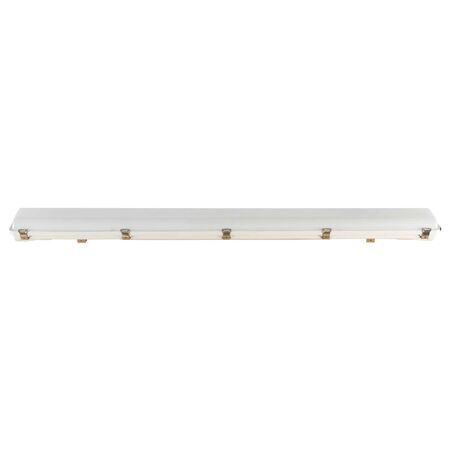

ENDURA 22W/40W Tri-Proof Emergency CCT LED Batten | Selectable Wattage & Color Temperature | IP65 Rated | by Brilliant Lighting
The ENDURA 22W/40W Tri-Proof Emergency CCT LED Batten is designed for versatile lighting solutions in commercial and industrial settings. With selectable wattage and color temperatures of 3000K, 4000K, and 6000K, it ensures optimal illumination. Its IP65 rating makes it waterproof and dustproof, perfect for harsh environments, while the integrated emergency backup provides 90 minutes of light during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ENDURA 22W/40W Tri-Proof Emergency CCT LED Batten | Selectable Wattage & Color Temperature | IP65 Rated | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 22756/08
Alternatively Known As: Tri-Proof LED Batten, Emergency LED Batten, Waterproof LED Batten, Industrial LED Batten, CCT LED Batten, 1200mm LED Batten
Technical Specifications
- Power: Selectable 22W or 40W
- Input Voltage: 220-240V AC 50/60Hz
- Colour Temperature: Selectable 3000K / 4000K / 6000K
- Luminous Flux: 2200lm (22W), 4000lm (40W)
- Emergency Mode: 3W, 90 minutes duration
- IP Rating: IP65
- Impact Rating: IK08
- CRI: >80
- Beam Angle: 120°
- Operating Temperature: -20°C to +40°C
- Lifespan: 50,000 hours
- Material: Polycarbonate body and diffuser
- Quick-connect terminal block
- Dimensions (H x L x W): 75mm x 1200mm x 90mm
- Weight: 2.2 kg
Key Features
- Tri-proof design: waterproof, dustproof, and corrosion-resistant
- Selectable wattage: 22W or 40W
- Selectable colour temperature: 3000K, 4000K, 6000K
- Integrated emergency backup (90 minutes)
- High efficacy LED technology
- Impact resistant (IK08)
- IP65 rated for harsh environments
- Long lifespan: 50,000 hours
- Easy installation with quick-connect terminal block
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Commercial car parks
- Warehouses
- Factories
- Plant rooms
- Schools
- Public amenities
- Underground basements
- Corridors
- Areas requiring emergency lighting
Standards & Compliance
- Complies with AS/NZS 2293 for emergency escape lighting and exit signs
- Complies with AS/NZS 60598 for safety and performance standards
Environmental Benefits
- Energy-efficient LED reduces power consumption and carbon footprint
- Long lifespan minimizes waste and replacement frequency
- Mercury-free and RoHS compliant
Warranty Information
3 year warranty covering manufacturing defects and performance.
Available Now
The ENDURA 22W/40W 1200MM Tri-Proof Emergency CCT LED Batten by Brilliant Lighting is available for immediate purchase. Ideal for commercial, industrial, and emergency lighting applications.
