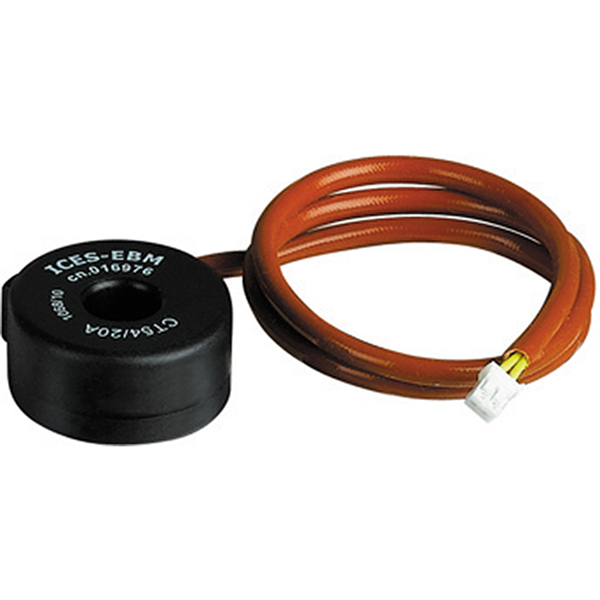

Energy Management Toroid | Compatible with 90A Load Diagnostics | 25mm² Cable Support | @Each of 1 | by Legrand
The Energy Management Toroid is designed for efficient energy monitoring in residential and commercial buildings. With compatibility for load diagnostics up to 90A and support for cable cross-sections up to 25mm², it integrates seamlessly with bus meters and controllers. Ideal for electricians, this toroid enhances safety and optimizes energy usage, ensuring compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Energy Management Toroid | Compatible with 90A Load Diagnostics | 25mm² Cable Support | @Each of 1 | by Legrand
Brand: Legrand
SKU: 3523
Alternatively Known As: Energy Management Toroid, Current Sensor Toroid, Earth Leakage Measurement Toroid
Technical Specifications
- Compatible with bus meter with 3 inputs for toroids item 03555
- Compatible with actuator with current sensor item 03558
- Maximum cable cross-section: 25 mm²
- Cable length: 400 mm
- Maximum load current for diagnostics: 90 A
- Toroid installation direction: None required
- Dimensions (H x L x W): 125mm x 565mm x 365mm
- Weight: 0.35 kg
Key Features
- Compatible with consumption indicator Cat.No 03555
- Operates with controller Cat.No 03558 for load diagnostics up to 90 A
- Supports cable cross-section up to 25 mm²
- Toroid has no direction of installation for flexible setup
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with energy management systems.
Applications
- Energy management systems for residential and commercial buildings
- Measurement of earth leakage current in electrical installations
- Integration with bus meters and load diagnostic controllers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate monitoring of energy consumption to optimize usage and reduce waste
- Supports energy efficiency initiatives by providing detailed load diagnostics
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Arteor MyHOME Additional Toroid for energy management systems is available for immediate purchase, ideal for enhancing energy monitoring and safety in residential and commercial electrical installations.
