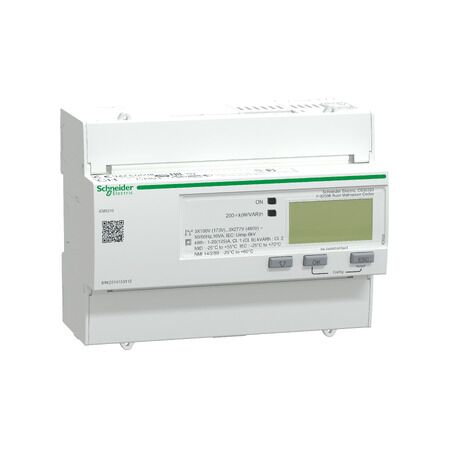

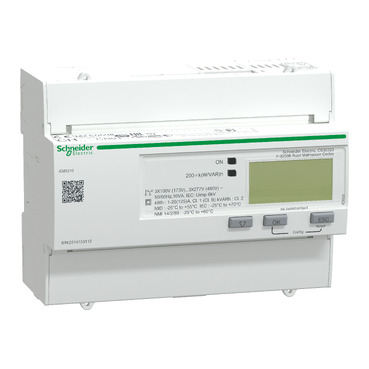

Energy Meter 125A MID Certified | 1 Pulse Output | LCD Display | by Clipsal
The Energy Meter 125A MID Certified is designed for precise energy monitoring in commercial and industrial settings. With a 1 pulse output for remote monitoring and an easy-to-read LCD display, it measures active energy (kWh) and instantaneous values like voltage and current. Ideal for sub-metering applications, this meter ensures compliance with MID standards, making it perfect for energy management systems and panel board integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Energy Meter 125A MID Certified | 1 Pulse Output | LCD Display | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM3310
Alternatively Known As: iEM3310 energy meter, MID certified energy meter, Clipsal 125A energy meter, Schneider A9MEM3310, DIN rail energy meter
Technical Specifications
- Rated current: 125A direct connection
- Voltage: 230/400V AC (50/60Hz)
- Pulse output: 1 (configurable)
- Accuracy: Class B (EN50470-3)
- Display: LCD
- Mounting: DIN rail
- Certification: MID (Measuring Instruments Directive)
- Measurement: Active energy (kWh), Voltage, Current, Power, Power Factor, Frequency
- Dimensions (H x L x W): 90mm x 64mm x 36mm
- Weight: 0.25 kg
Key Features
- MID certified for billing applications
- Measures active energy (kWh) and instantaneous values (V, A, kW, kVA, kVAR, PF, Hz)
- Direct connection up to 125A
- 1 pulse output for remote monitoring
- Compact DIN rail mounting
- LCD display for easy reading
- High accuracy class B (EN50470-3)
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Commercial and industrial energy monitoring
- Sub-metering in multi-tenant buildings
- Energy management systems
- Panel board and distribution board integration
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates reduction of energy waste through accurate sub-metering
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal iEM3310 Energy Meter 125A MID Certified (SCHA9MEM3310) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and sub-metering applications.
