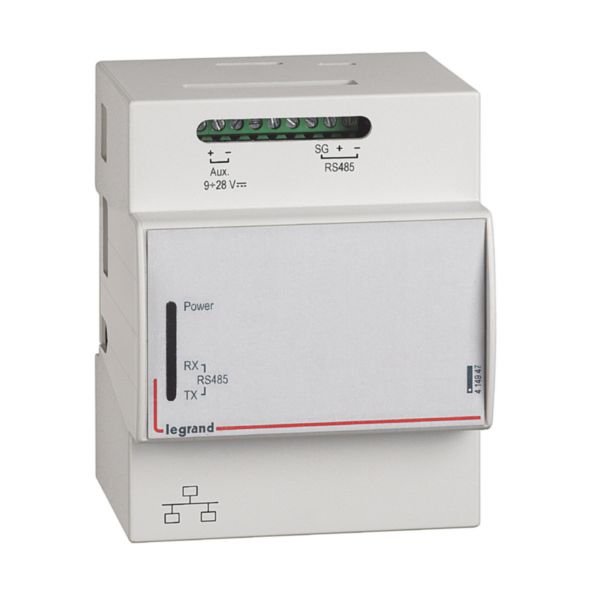

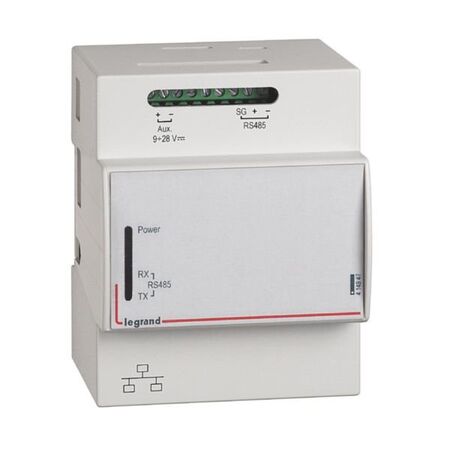

Energy Web Server | Remote Monitoring for 10 MODBUS Addresses | IP20 Rated | by Legrand
The Energy Web Server enables remote monitoring and control of up to 10 MODBUS addresses or pulse counters, making it ideal for energy management in industrial and commercial settings. With support for TCP/IP and EtherNet/IP protocols, this server ensures seamless integration into existing networks. Designed for easy rail or wall mounting, it offers an IP20 degree of protection, ensuring durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Energy Web Server | Remote Monitoring for 10 MODBUS Addresses | IP20 Rated | by Legrand
Brand: Legrand
SKU: 414947
Alternatively Known As: Energy Web Server, MODBUS Energy Server, Remote Energy Management Server, Legrand Energy Metering Server
Technical Specifications
- Supply voltage: 9-28 V DC
- Supports TCP/IP, MODBUS, and EtherNet/IP protocols
- Does not support PROFIBUS, CAN, INTERBUS, ASI, KNX, Data-Highway, DeviceNet, SUCONET, LON, SERCOS, PROFINET IO/CBA, Foundation Fieldbus, AS-Interface Safety, DeviceNet Safety, INTERBUS-Safety, PROFIsafe, SafetyBUS p
- No Bluetooth, WLAN 802.11, GPRS, GSM, or 3G mobile communication support
- System accessory compatible
- Degree of protection: IP20
- Potential separation included
- Fieldbus connection possible via separate bus coupler
- Suitable for rail and wall mounting
- Not suitable for front built-in or rack assembly
- SIL and performance level: None
- Explosion safety category: None
- Dimensions (H x L x W): 91mm x 62mm x 71mm
- Weight: 0.3 kg
Key Features
- Supports remote control, monitoring, and measurement of electrical parameters
- Compatible with MODBUS and EtherNet/IP protocols
- Supports up to 10 MODBUS addresses or 10 pulse counters
- Direct IP connection for easy network integration
- Rail mounting and wall mounting options
- IP20 degree of protection
- Potential separation and suitable for safety functions
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with MODBUS and networked energy management systems to ensure proper integration and safety compliance.
Applications
- Remote monitoring and control of electrical circuit breakers and energy meters
- Energy management in industrial and commercial power distribution systems
- Integration with Legrand Power supervision system and Green'up EV charging stations
- Data visualization and control via web browsers on PCs, smartphones, tablets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient energy management and monitoring to reduce energy waste
- Supports integration with electric vehicle charging stations promoting clean energy use
- Helps optimize power consumption and reduce carbon footprint
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Energy Web Server for remote consultation is available for immediate purchase, ideal for industrial and commercial energy management applications.
