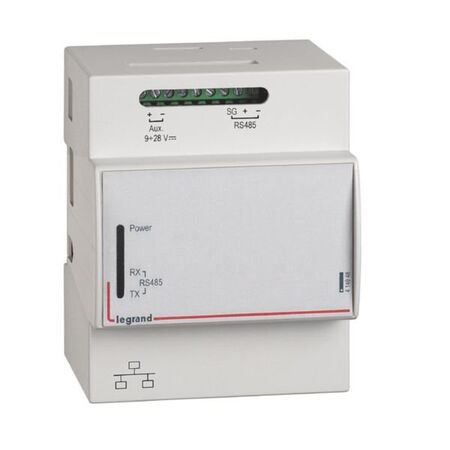

Energy Web Server Remote Monitoring for 32 MODBUS Addresses IP20 Rated Legrand
The Energy Web Server enables remote monitoring and control of up to 32 MODBUS addresses or pulse counters
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 9-28 V DC
- Supports TCP/IP and MODBUS protocols
- Does not support PROFIBUS, CAN, INTERBUS, ASI, KNX, Data-Highway, DeviceNet, SUCONET, LON, SERCOS, PROFINET IO/CBA, Foundation Fieldbus, AS-Interface Safety, DeviceNet Safety, INTERBUS-Safety, PROFIsafe, SafetyBUS p
- No Bluetooth, WLAN 802.11, GPRS, GSM, or 3G mobile communication support
- System accessory compatible
- Degree of protection: IP20
- Potential separation included
- Fieldbus connection possible via separate bus coupler
- Suitable for rail and wall mounting
- Not suitable for front built-in or rack assembly
- Suitable for safety functions but no SIL or performance level certification
- Dimensions (H x L x W): 91mm x 62mm x 71mm
- Weight: 0.3 kg
Key Features
- Supports remote control, monitoring, and measurement of electrical parameters
- Compatible with MODBUS and EtherNet/IP protocols
- Supports up to 32 MODBUS addresses or 32 pulse counters
- Direct IP connection for easy network integration
- Rail mounting and wall mounting capable
- IP20 degree of protection
- Potential separation for safety
- Compatible with Legrand Power supervision system and Green'up charging stations
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with MODBUS systems and network integration to ensure compliance with electrical standards and safety.
Applications
- Remote monitoring and control of electrical circuit breakers and energy meters
- Energy management in commercial and industrial switchboards and power cabinets
- Integration with MODBUS protocol devices for centralized energy supervision
- Remote configuration and visualization via web browsers on PCs, smartphones, and tablets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient energy management and monitoring to reduce energy waste
- Supports integration with electric vehicle charging stations promoting sustainable transport
- Facilitates remote monitoring reducing the need for on-site visits and associated emissions
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Energy Web Server for remote consultation is available for immediate purchase, ideal for energy management in commercial and industrial switchboards.
