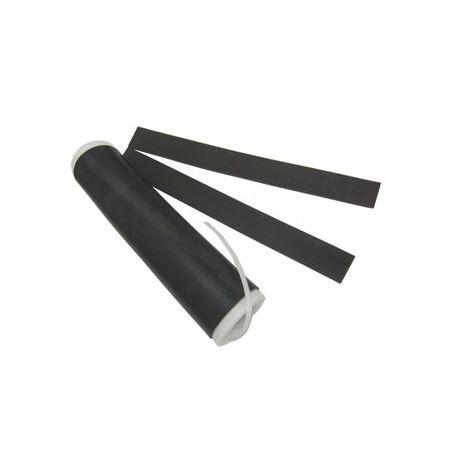

EPDM Cold Shrink Tube 10.1-20.9mm 203mm Long Powerjoint
Powerjoint EPDM cold shrink tube features 10.1-20.9mm application range and 203mm length. Ideal for insulating cable joints and terminations without heat.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EPDM Cold Shrink Tube, Cold Shrink Insulation Tube, Power Cable Joint Insulation Sleeve, POWERJOINT EPDM25-8-203
Technical Specifications
- Material: Ethylene propylene diene monomer (EPDM) rubber
- Application Range: 10.1–20.9 mm
- Length After Shrinkage: 203 mm
- Expanded Core Diameter: 25 mm
- Installation Method: Cold shrink; remove the supporting core after positioning
- Installation Equipment: No flame or specialised heating tools required
- Sealing: Constant radial pressure for moisture and water exclusion
- Colour: Black
- Unit Quantity: 1 each
- Dimensions (H x L x W): 25mm x 203mm x 25mm
- Weight: 0.1 kg
Key Features
- Suitable for insulating and sealing cable joints and terminations
- Pre-expanded design contracts when the removable support core is withdrawn
- Installs without flame, heat or specialised heating equipment
- Provides continuous radial pressure around the cable
- Helps protect against moisture ingress and environmental exposure
- EPDM construction offers weather and UV resistance
- Suitable for indoor and outdoor electrical cable applications
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical contractor in accordance with the cable accessory manufacturer's instructions and applicable electrical installation requirements. Confirm the product is suitable for the cable voltage, diameter and joint or termination assembly before installation.
Applications
- Low-voltage power cable joints
- Electrical cable terminations
- Cable insulation and environmental sealing
- Indoor and outdoor cable repairs and maintenance
- Protection of cable connections against moisture and weather exposure
Standards & Compliance
- AS/NZS 4805.1:2007 – relevant type-testing framework for accessories used with power cables; assembly-specific certification should be confirmed for the intended joint or termination application
Environmental Benefits
- Cold installation avoids the fuel use and emissions associated with flame-based heat-shrink installation
- EPDM is durable and weather-resistant, which can extend service life and reduce replacement waste
- Long-term moisture sealing helps protect cable systems and reduce premature component failure
Warranty Information
Cabac warranty terms generally provide a 12-month warranty from the date of purchase for products unless a different product-specific warranty applies. Coverage excludes misuse, neglect and incorrect installation, subject to Australian Consumer Law.
Available Now
Available through POWERJOINT, CABAC and authorised Australian electrical distributors.
