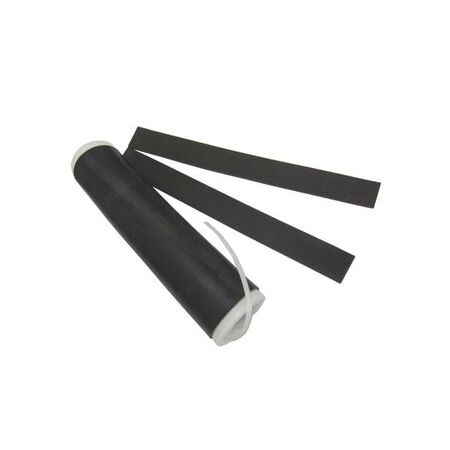

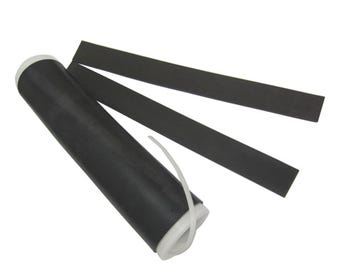

EPDM Cold Shrink Tube 13.9-30.1mm 279mm Long Powerjoint
Powerjoint EPDM cold shrink tube features 13.9-30.1mm application range and 279mm length. Ideal for insulating cable joints and terminations without heat.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EPDM Cold Shrink Insulating Tube, Cold Shrink Cable Sleeve, EPDM Cable Joint Insulation
Technical Specifications
- Material: Ethylene propylene diene monomer (EPDM)
- Application Diameter Range: 13.9–30.1 mm
- Length: 279 mm
- Colour: Black
- Installation Method: Cold shrink; remove the internal support core to contract the tube
- Application: Low-voltage and communication cable joints and terminations
- Sealing: Provides constant radial pressure; additional mastic may be required for enhanced moisture sealing
- Pack Quantity: 1 piece
- Dimensions (H x L x W): 35mm x 279mm x 35mm
- Weight: 0.15 kg
Key Features
- No flame, heat or specialised heating equipment required
- Factory-expanded tube contracts as the support core is removed
- Accommodates a range of cable diameters from 13.9 to 30.1 mm
- Provides electrical insulation and environmental protection around cable joints and terminations
- EPDM construction offers good weathering and thermal stability
- Suitable for low-voltage and communication cable applications
- Can be installed over suitably prepared cable joints and other cylindrical components
Professional Installation Requirements
- Cable jointing and termination work should be performed by a licensed electrician or suitably qualified cable-jointing technician in accordance with the cable manufacturer’s instructions and AS/NZS 3000 where applicable. Isolate and verify the circuit before installation.
Applications
- Low-voltage power cable joints
- Low-voltage cable terminations
- Communication cable joints and terminations
- Cable sheath and insulation repair applications
- Sealing cylindrical electrical components against environmental exposure
Standards & Compliance
- AS/NZS 3000:2018 may apply to the associated low-voltage electrical installation; no product-specific AS/NZS certification declaration was located for this tube
- AS/NZS 1747:2022 may be relevant to certain cable-jointing and inspection applications; product-specific compliance was not stated
Environmental Benefits
- Cold-shrink installation avoids the fuel or electrical energy required for heat-shrink installation
- EPDM is durable and weather-resistant, which can extend service life and reduce replacement waste
- Supports repair and maintenance of existing cable systems rather than requiring complete cable replacement
Warranty Information
CABAC general product warranty documentation states 12 months against manufacturing and material defects from the invoice date for the initial purchaser, subject to correct installation, maintenance and operation. Confirm product-specific warranty terms with the supplier.
Available Now
Available through POWERJOINT/CABAC and authorised Australian electrical distributors, subject to distributor stock.
