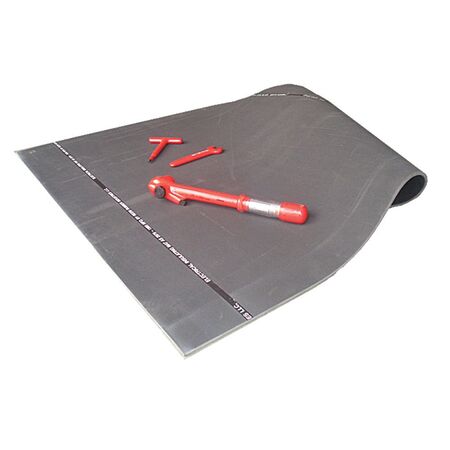

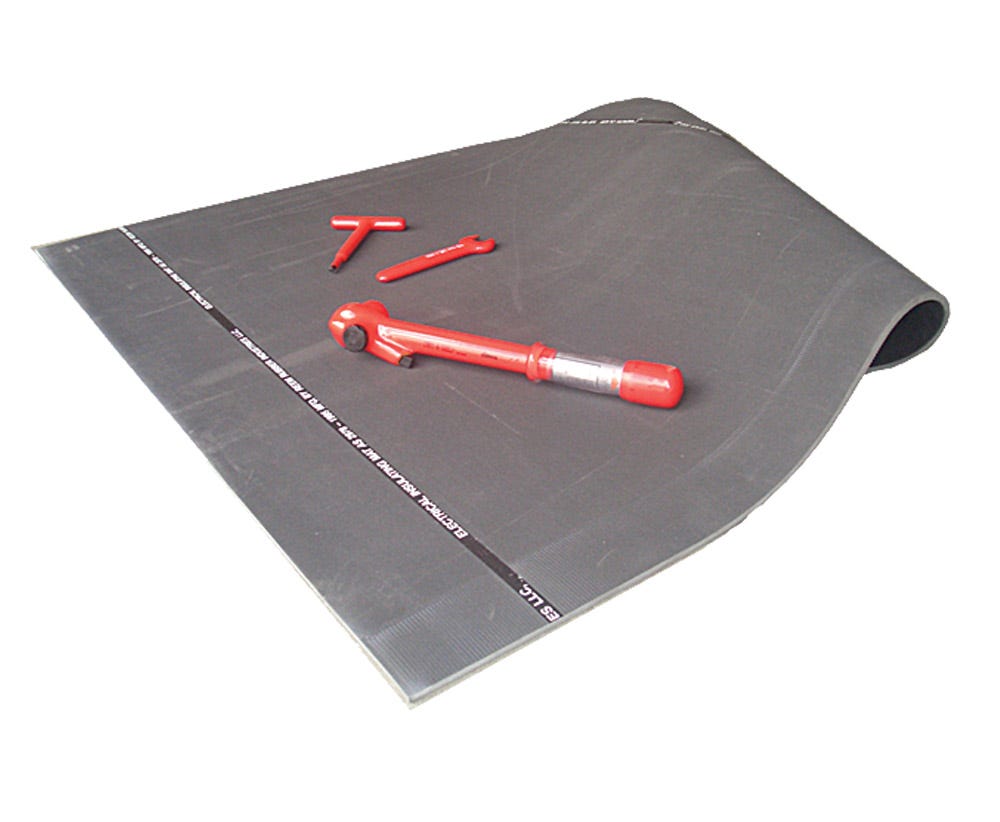

EPDM HV Rubber Mat 17kV | Heavy-Duty EPDM Material | 1m Square | 6.5mm Thickness | @Each of 1 | by Cabac
The EPDM HV Rubber Mat 17kV is designed for electrical safety in high voltage environments, featuring heavy-duty EPDM material that ensures durability and flexibility. Rated for use up to 17kV, this mat is suitable for both indoor and outdoor applications, providing essential protection for workers handling electrical equipment. Regular testing is recommended to maintain safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EPDM HV Rubber Mat 17kV | Heavy-Duty EPDM Material | 1m Square | 6.5mm Thickness | @Each of 1 | by Cabac
Brand: Cabac
SKU: 01004HVE
Alternatively Known As: High Voltage Insulating Mat, EPDM Electrical Safety Mat, 17kV Rubber Safety Mat
Technical Specifications
- Material: EPDM rubber
- Voltage Rating: 17kV (Class 2)
- Size: 1000mm x 1000mm
- Thickness: 6.5mm
- Complies with IEC61111 Clause 5.6.4.2.2 for high voltage insulating mats
- Dimensions (H x L x W): 6.5mm x 1000mm x 1000mm
- Weight: 5 kg
Key Features
- Heavy-duty EPDM material for durability and flexibility
- Rated for use up to 17kV according to IEC61111 Clause 5.6.4.2.2
- Suitable for indoor and outdoor applications
- Recommended regular high voltage testing every 6 months
Professional Installation Requirements
- No special installation required; ensure mat is placed on clean, dry surface and regularly tested by qualified personnel.
Applications
- Electrical safety for high voltage work environments
- Indoor and outdoor use in industrial and electrical maintenance settings
- Protection for workers handling equipment up to 17kV
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable EPDM material extends product life reducing waste
- Reusable safety mat reduces need for frequent replacements
Warranty Information
Warranty details available upon request; recommended regular testing every 6 months to ensure safety compliance.
Available Now
The Cabac EPDM HV Rubber Mat 17kV 1m Square x 6.5mm is available for immediate purchase, ideal for electrical safety in industrial and maintenance applications.
