Equipment Support Post Base | Height Adjustable | UV-Stabilized Thermoplastic | Hot-Dip Galvanised by Cabac

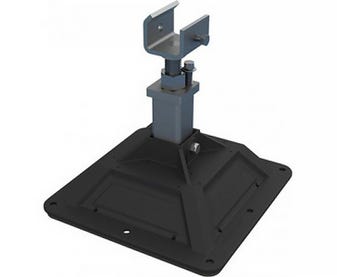

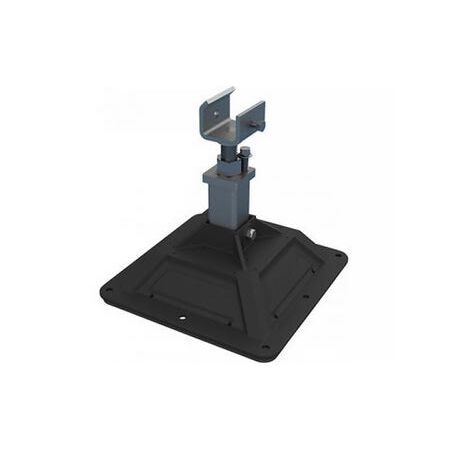

The CADDY Pyramid Equipment Support Post Base by Cabac is a height-adjustable support designed for use with strut channels and brackets, featuring a hot-dip galvanised steel construction and a UV-stabilized thermoplastic base that helps protect roof membranes and supports sustainable building practices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CADDY Pyramid Equip. Support Post Base
Brand: Cabac
SKU: PEB-360425
Alternatively Known As: Equipment Support Post Base, Strut Channel Support Base, Adjustable Equipment Support
Technical Specifications
- Material: Steel, Polypropylene, Polyethylene
- Finish: Hot-dip galvanised
- Temperature Range: -34 to 54 °C (-30 to 130 °F)
- Static Load Safety Factor: 3:1
- Base Material: UV-stabilized thermoplastic
- Dimensions (H x L x W): 300mm x 150mm x 150mm
- Weight: 2 kg
Key Features
- Height adjustable for versatile installation
- Innovative base design evenly distributes load to prevent roof membrane damage
- Base made from UV-stabilized thermoplastic material
- Supports green building requirements with recycled thermoplastic base material
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper load distribution and secure mounting.
Applications
- Supports for strut channel type A and U-shaped brackets
- Custom equipment support structures
- Roof installations requiring load distribution
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Thermoplastic base made from recycled materials
- Contributes to LEED credits for green building projects
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific terms.
Available Now
The CADDY Pyramid Equipment Support Post Base is available for immediate purchase, ideal for construction and equipment support applications.
