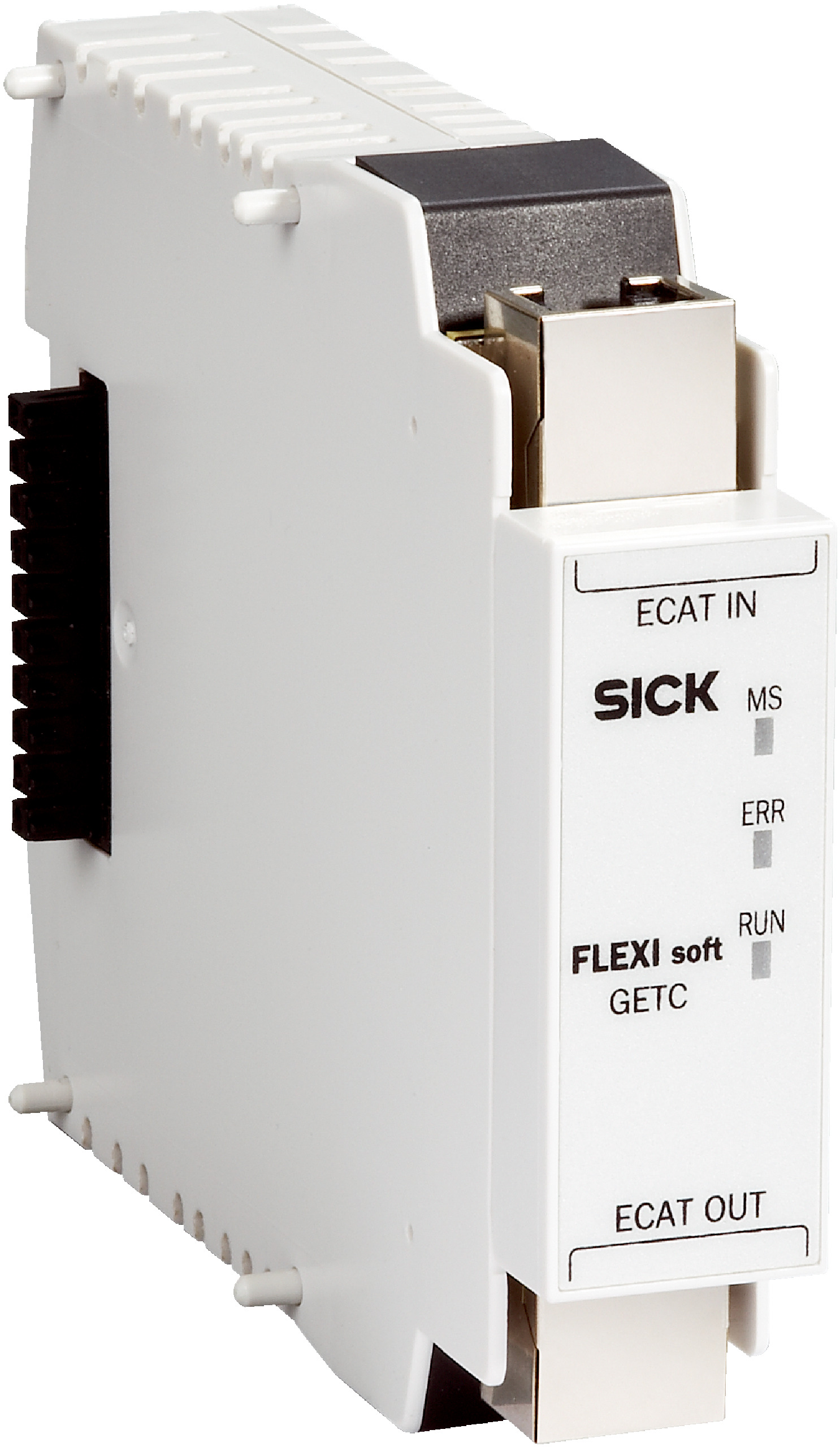

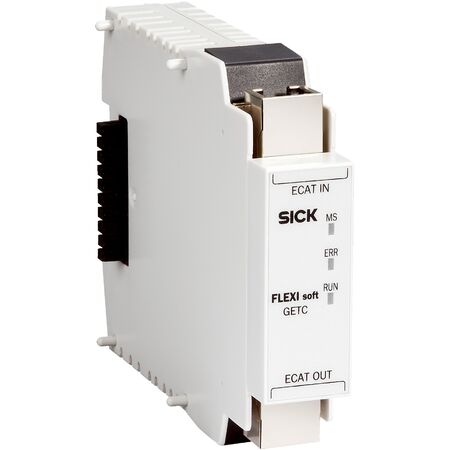

EtherCAT Gateway Module FX0-GETC00000 | Dual RJ-45 Connectors | 10/100 Mbit/s Autosensing | IP20 Rated | by SICK
The EtherCAT Gateway Module FX0-GETC00000 is designed for seamless integration into industrial automation systems. Featuring dual RJ-45 connectors and supporting data transmission rates of 10 Mbit/s and 100 Mbit/s with autosensing, this module ensures reliable network communication. With a low power consumption of ≤ 3 W and an IP20 rated enclosure, it's perfect for factory automation and control systems, providing safety and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus Network: EtherCAT ®
- Configuration Method: Via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Data Transmission Rate: 10 Mbit/s, 10Base-T; 100 Mbit/s, 100Base-T autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: –25 °C to +55 °C
- Storage Temperature Range: –25 °C to +70 °C
- Air Humidity: ≤ 95 %, Non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.15 kg
Key Features
- Gateway module for EtherCAT industrial network
- Configuration via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Data transmission rates of 10 Mbit/s and 100 Mbit/s with autosensing
- Dual RJ-45 female connectors for network connection
- Low internal power consumption of ≤ 3 W
- Protection class III (EN 61140) ensuring electrical safety
- IP20 rated enclosure suitable for industrial environments
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified industrial automation technician or electrician familiar with EtherCAT networks and electrical safety standards.
Applications
- Industrial automation systems requiring EtherCAT network integration
- Factory automation and control systems
- Safety and monitoring systems using Flexi Soft Designer or Safe EFI-pro System
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Supports efficient industrial network communication minimizing downtime
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-GETC00000 EtherCAT Gateway Module is available for immediate purchase, ideal for industrial automation and network integration applications.
