EtherCAT Gateway Module | Dual RJ-45 Connectors | 10/100 Mbit/s Autosensing | IP20 Rated | by SICK

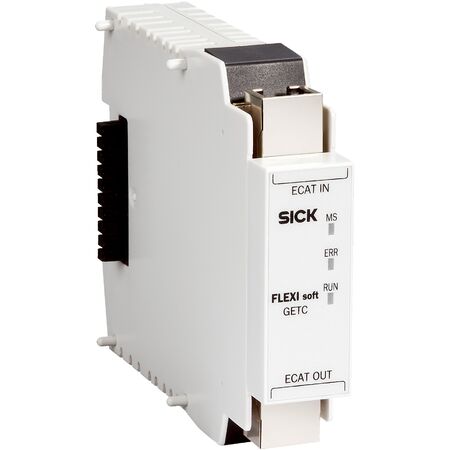

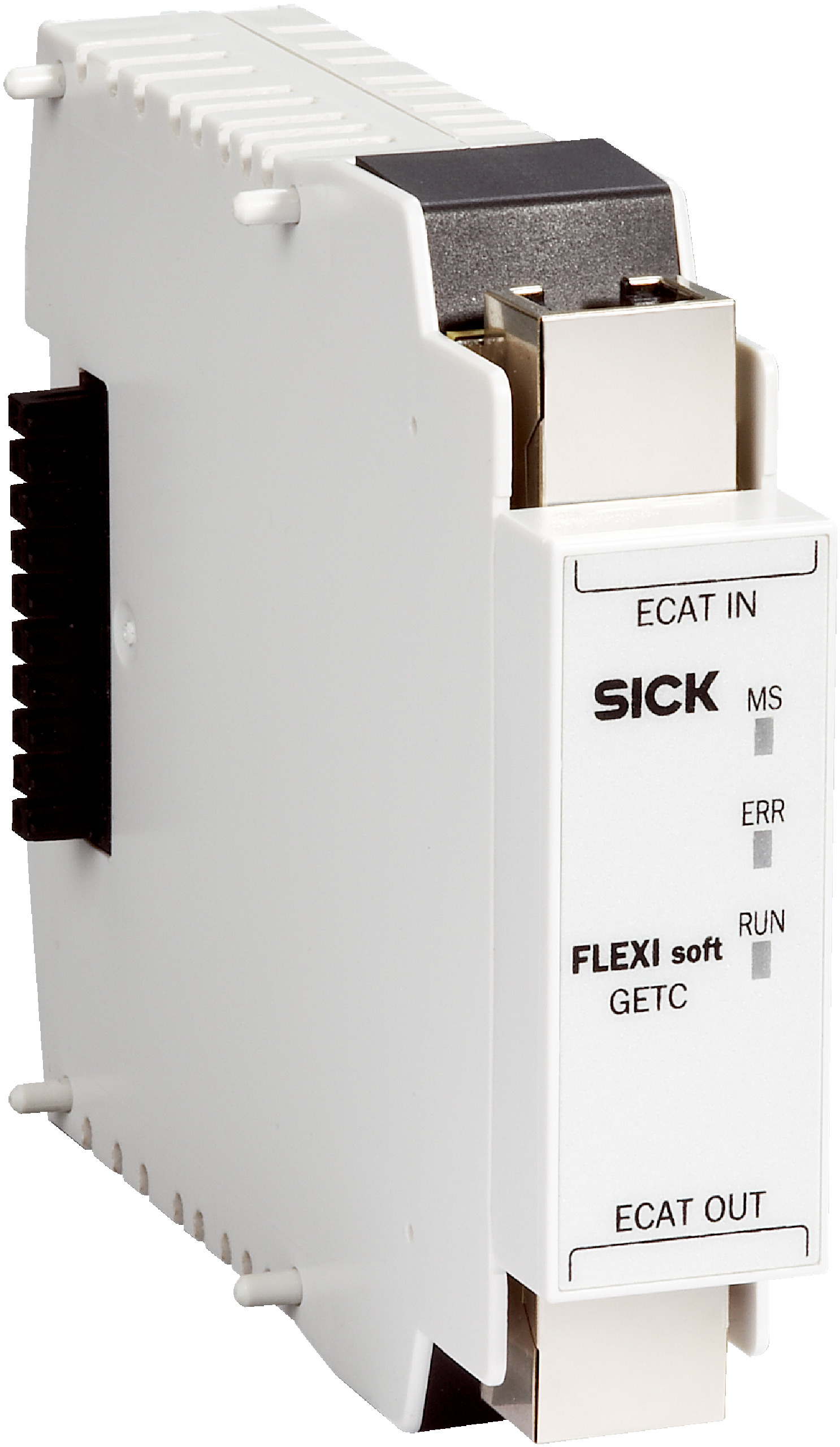

The EtherCAT Gateway Module FX0-GETC00010 is designed for seamless integration into industrial automation systems, featuring dual RJ-45 connectors and data transmission rates of 10 Mbit/s and 100 Mbit/s with autosensing. Ideal for factory and process automation networks, this module is built to withstand challenging ambient conditions, including exposure to sulfur, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus Industrial Network: EtherCAT®
- Configuration Method: Software via Flexi Soft Designer and Safe EFI-pro System Safety Designer
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Gas Resistance: Sulfur dioxide 25 ppm for 21 days at 25 °C, Mixed gases including H2S, NO2, Cl2, SO2
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.15 kg
Key Features
- Gateway module with EtherCAT® fieldbus industrial network
- Configuration via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Protective coating for resistance to sulfur and harsh ambient conditions
- Data transmission rates of 10 Mbit/s and 100 Mbit/s with autosensing
- Dual RJ-45 female connectors for network connection
- Low internal power consumption (≤ 3 W)
- Protection class III (EN 61140)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with EtherCAT® networks and industrial electrical standards to ensure safety and compliance.
Applications
- Industrial automation systems requiring EtherCAT® communication
- Factory and process automation networks
- Environments with challenging ambient conditions including sulfur exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Protective coating extends product lifespan reducing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-GETC00010 Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
