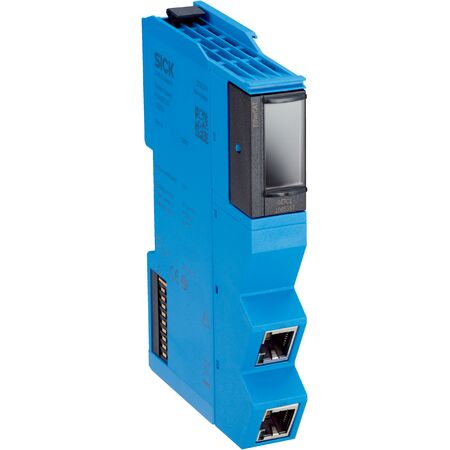

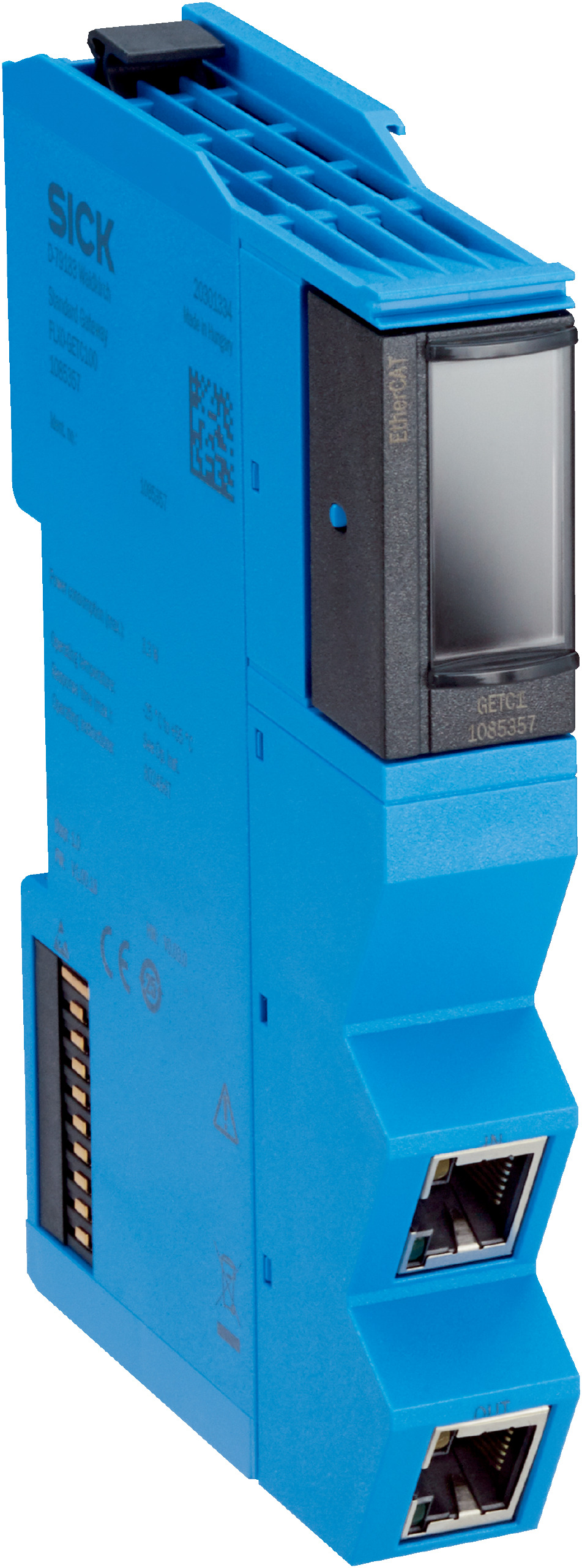

EtherCAT Gateway Module FLX0-GETC100 | Safety Controller Integration | Low Power Loss | Compact Design | by SICK
The EtherCAT Gateway Module FLX0-GETC100 enables seamless data transmission for safety controllers within EtherCAT networks. With a low power loss of ≤ 3.3 W and configuration via software and TFT display, it's perfect for industrial automation safety systems. Designed for easy integration with two RJ45 connectors, this module ensures reliable control and diagnostic communication in safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus: EtherCAT®
- Configuration Method: Software (Safety Designer) and TFT display
- Fieldbus Interface: 2 x RJ45 female connectors
- Protection Class: III (EN 61140)
- Interference Resistance: EN 61000-6-2
- Interference Emission: EN 61000-6-4
- Voltage Supply: Via backplane bus
- Power Loss: ≤ 3.3 W
- Current Consumption: 135 mA
- Contamination Rating: 2 (IEC 61010-1)
- Control Device Type: Open device (IEC 61010-2-201)
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Vibration Resistance: 1 g, 5 Hz to 200 Hz (EN 60068-2-6)
- Shock Resistance: 15 g, 11 ms (EN 60068-2-27)
- Dimensions (H x L x W): 125mm x 86mm x 18mm
- Weight: 0.108 kg
Key Features
- Enables safety controller data transmission to and from EtherCAT network
- Configuration via software (Safety Designer) and TFT display
- Two RJ45 female connectors for EtherCAT network integration
- Low power loss of ≤ 3.3 W
- Compact design with mounting on standard 35 mm IEC 60715 mounting rail
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT networks and safety controller integration to ensure compliance with safety standards.
Applications
- Industrial automation safety systems
- Integration of safety controllers into EtherCAT networks
- Control and diagnostic data communication in safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient network communication reducing system downtime and energy waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FLX0-GETC100 Gateway Module is available for immediate purchase, ideal for industrial safety system integration and network communication.
