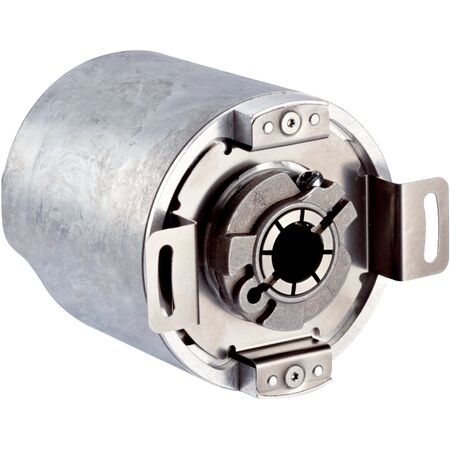

EtherCAT High-Resolution Rotary Encoder | 18 Bit Resolution | IP65/IP67 Rated | by SICK
The EtherCAT High-Resolution Rotary Encoder offers exceptional precision with 262,144 steps per revolution and a robust design featuring a stainless steel shaft. Ideal for industrial automation and robotics, this encoder operates in extreme temperatures from -40 °C to +85 °C, ensuring reliable performance in demanding environments. With an EtherCAT communication interface, it provides comprehensive diagnostics for enhanced monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Max resolution: 18 bit x 12 bit (262,144 steps per revolution x 4,096 revolutions)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: 6 seconds
- Cycle time: 125 µs to 100 ms
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Blind hollow shaft with 1/2 inch diameter
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- EtherCAT communication interface with CoE (CAN over EtherCAT®) protocol
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- High repeatability with standard deviation of 0.002°
- Wide operating temperature range from -40 °C to +85 °C
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics data available including temperature, speed, position monitoring, and operating hours
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the EtherCAT interface and mechanical mounting.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Factory automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-BFEB018x12 encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
