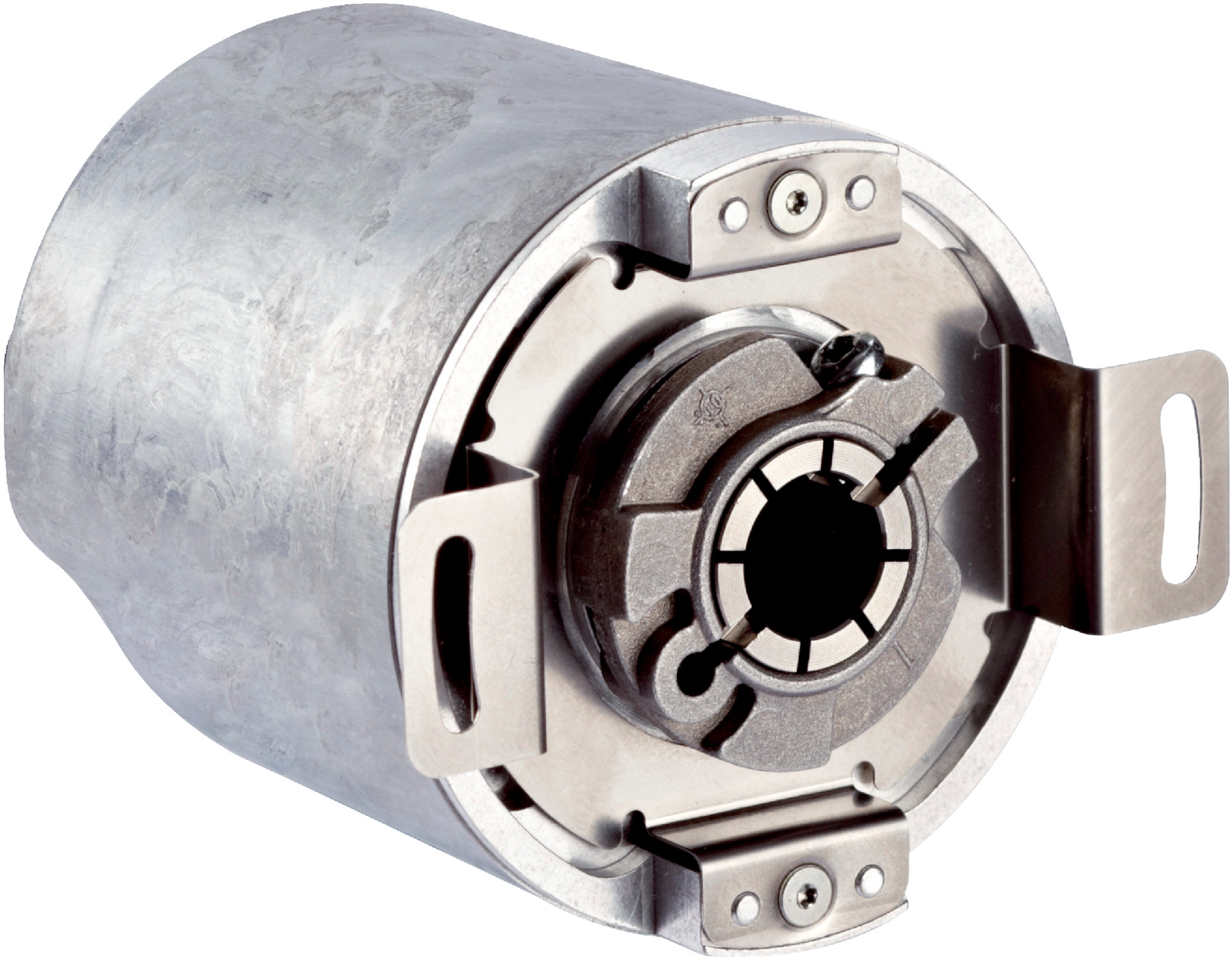

EtherCAT High-Resolution Rotary Encoder | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The EtherCAT High-Resolution Rotary Encoder AFM60A-BDEB018x12 delivers exceptional precision with a maximum resolution of 262,144 steps per revolution and robust IP65/IP67 protection. Designed for industrial automation and robotics, it ensures reliable position feedback in demanding environments, operating within a wide temperature range of -40 °C to +85 °C while consuming less than 3 W of power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE protocol
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: 6 seconds
- Cycle time: 125 µs to 100 ms
- Connection type: Male and female M12 4-pin axial connectors
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Blind hollow shaft, 10 mm diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 18 bit steps per revolution and 12 bit number of revolutions
- EtherCAT communication interface with CoE (CAN over EtherCAT®) protocol
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Wide operating temperature range from -40 °C to +85 °C
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low power consumption ≤ 3 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3 x 10^9 revolutions
- Fast initialization time of 6 seconds and cycle time from 125 µs to 100 ms
